Brand: HALDER

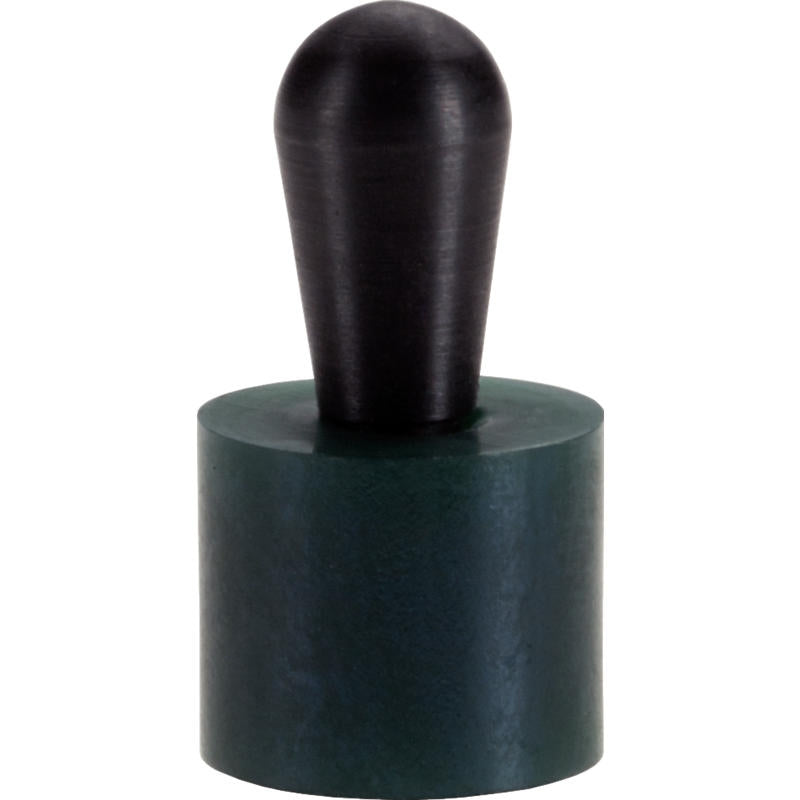

Lateral Plunger - 22150.0206
SKU: EH-22150.0206
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Lateral Plungers with plastic spring and pin 22150.0206.EH 22150
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Halder 22150.0206 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Material
Spring
- Plastic
Pin
- Steel, case-hardened, blackened
Assembly
Moistening the body allows for easier installation.
Installation by pressing in.
Formula for calculating the center distance for the mounting hole:
l0 = z/2 + w + x,
l0 = center distance,
y = workpiece height,
w = workpiece length,
x = coordinate dimension,
s = stroke,
z = stop diameter
Calculation dimension x:
y greater than or equal to l2 - d2/2, then x = d2/2 - s
or
y smaller than l2 - d2/2, then x = d2/2-s-[(l2-d2/2-y)*0,123]
Characteristic
Heavy spring load = green spring
