Brand: HALDER

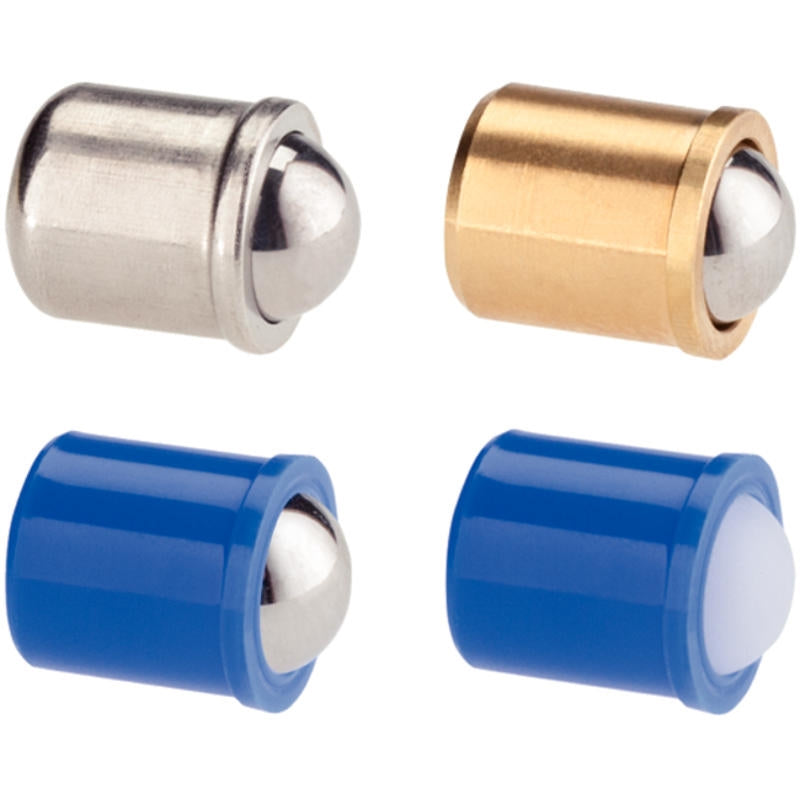

Spring Plunger - 22080.1004
SKU: EH-22080.1004
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Spring Plungers smooth, with collar and ball 22080.1004.EH 22080
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Halder 22080.1004 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Material
Body
- Stainless steel 1.4303
Ball
- Stainless steel, hardened
Spring
- Stainless steel
Assembly
A tolerance of H7 is recommended for the locating hole of d1.
Characteristic
Light spring load: marked with one line
Notes
Special types on request.
Spring range and forces are precisely tested.
References
Calculation of indexing resistance, see details at the start of the section.
Version with higher spring forces see "EH 22080. Spring Plungers, smooth, long, with collar and ball".
