Brand: HALDER

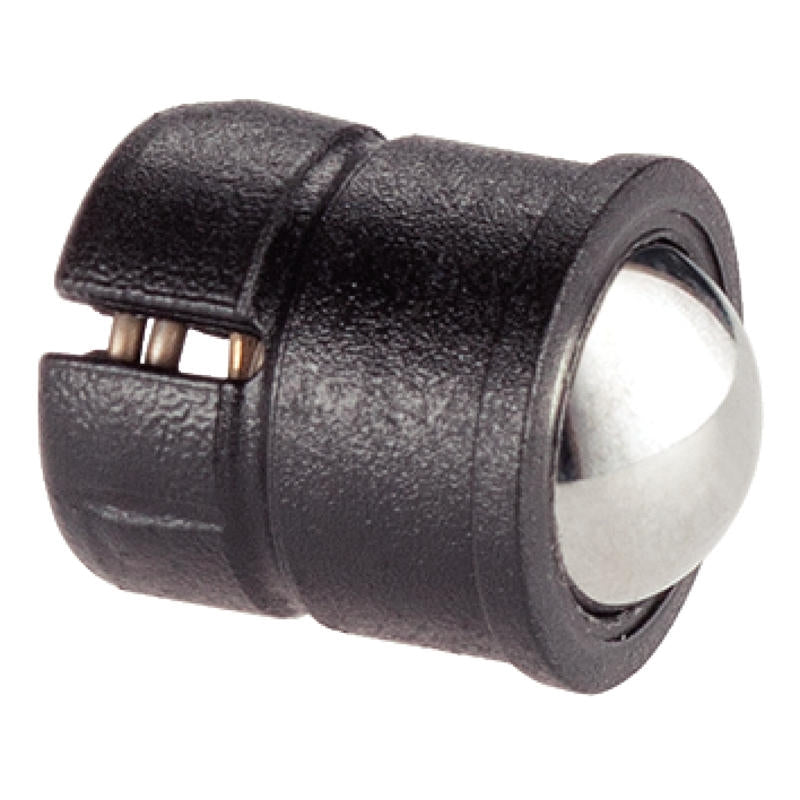

Spring Plunger - 22080.0704
SKU: EH-22080.0704
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Spring Plungers smooth, with collar and ball, self-clamping 22080.0704.EH 22080
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Due to expanding fit of the body, the spring plungers can accommodate variation of up to 0,2 mm in the locating bore. A less precise locating hole means lower machining costs.
Halder 22080.0704 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Due to expanding fit of the body, the spring plungers can accommodate variation of up to 0,2 mm in the locating bore. A less precise locating hole means lower machining costs.
Material
Body
- Thermoplastic POM, black
Ball
- Stainless steel, hardened
Spring
- Stainless steel
Assembly
Thanks to the flexible design of the body, a direct manual mounting and a secure overhead installation is possible.
Notes
Special types on request.
Spring range and forces are precisely tested.
References
Calculation of indexing resistance, see details at the start of the section.
