Brand: HALDER

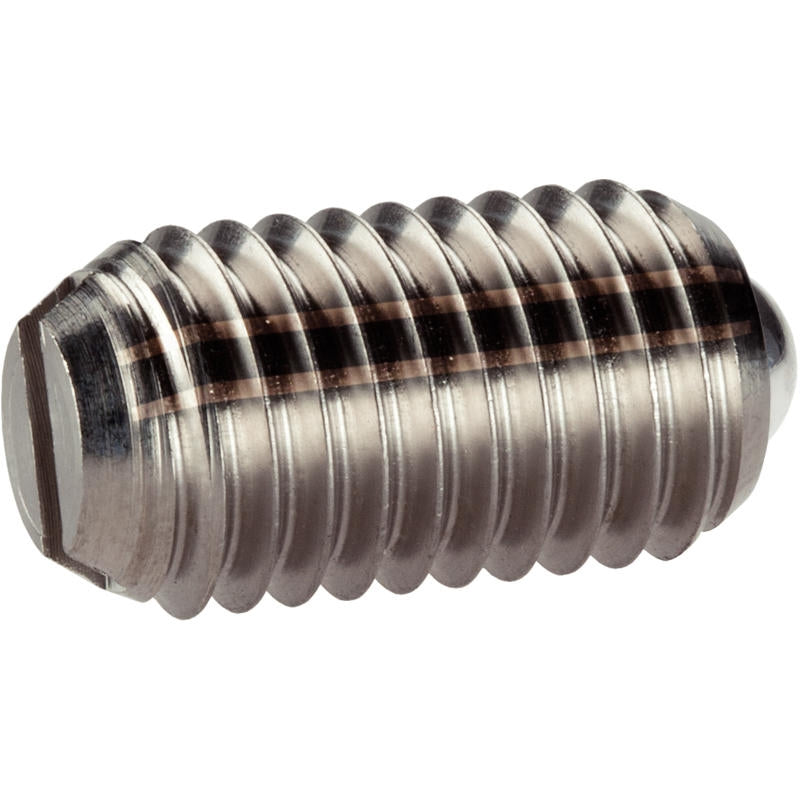

Spring Plunger - 22051.0612
SKU: EH-22051.0612
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Spring Plungers with moveable ball and slot 22051.0612.EH 22051
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
The running of the ball minimises wear on the counterpart, this also results in a positive locking behaviour depending on the counterpart.
Plastic balls offer electric insulation.
Halder 22051.0612 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
The running of the ball minimises wear on the counterpart, this also results in a positive locking behaviour depending on the counterpart.
Plastic balls offer electric insulation.
Material
Body
- Stainless steel 1.4305
Bearing
- Plastic
Ball
- Stainless steel, hardened
Spring
- Stainless steel
Characteristic
Reinforced spring load: marked with two lines
Notes
Special types on request.
Spring range and forces are precisely tested.
References
Thread lock on request, please refer to appendix - Technical Data -
Calculation of indexing resistance, see details at the start of the section.
