Brand: Ingersoll Cutting Tools

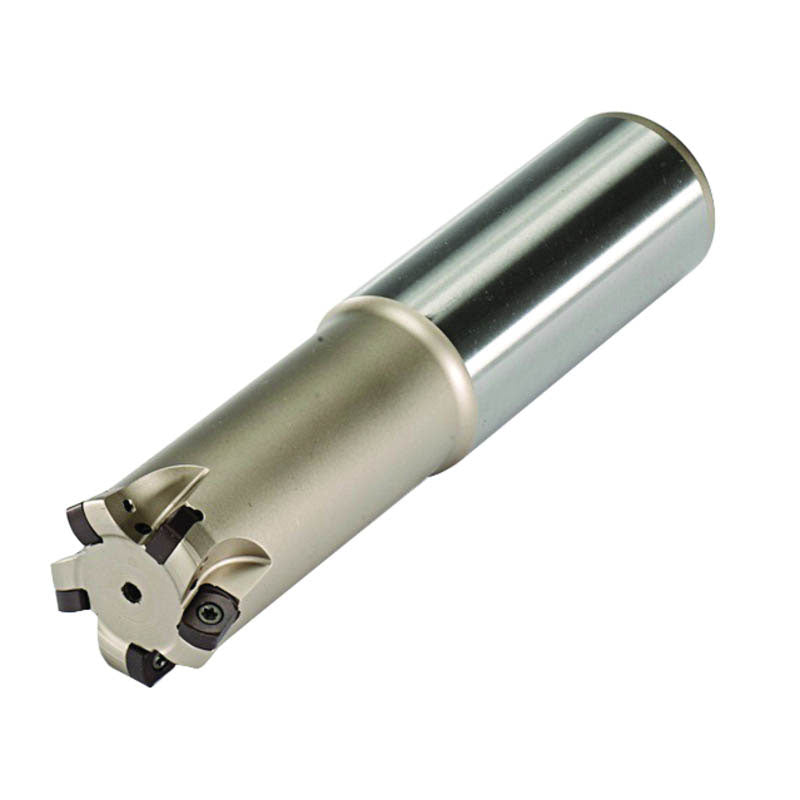

Ingersoll Cutting Tools IC523029339 1TG1F-07017UMR02
SKU: FTS-IC523029339
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 3029339 1TG1F-07017UMR02Full Description
| Cutting Diameter (DC/DCX) | 3/4" | Application | | Facing | Helical Interpolation | Rampdown | Slotting | |
| Cutting Diameter (DC) | 0.476" | Connection Diameter Machine Side (DCONMS) | 0.728" |
| Cutting Diameter Maximum (DCX) | 3/4" | Usable Length (LU) | 1-1/2" |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.032" | Measurement Type | Inch |
| Overall Length (OAL) | 6-1/4" | Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 1.45 Degrees | Protruding Length (LPR) | 1.659" |
Family Description
Three different insert edge preparations provide application flexibility Excellent high-feed performance & economy!
