Brand: Ingersoll Cutting Tools
Ingersoll Cutting Tools IC523029885 1BW8V-0705780R01
SKU: FTS-IC523029885
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 3029885 1BW8V-0705780R01Full Description
| Cutting Diameter (DC/DCX) | 3/4" | Connection Diameter Machine Side (DCONMS) | 1" |
| Cutting Diameter (DC) | 3/4" | Usable Length (LU) | 0.79" |
| Cutting Item Count (CICT) | 2 | Corner Radius (RE) | 3/8" |
| Depth of Cut Maximum (APMX) | 3/8" | Measurement Type | Inch |
| Overall Length (OAL) | 8" | Body Material | Steel |
| Application | | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 5-3/4" |
Family Description

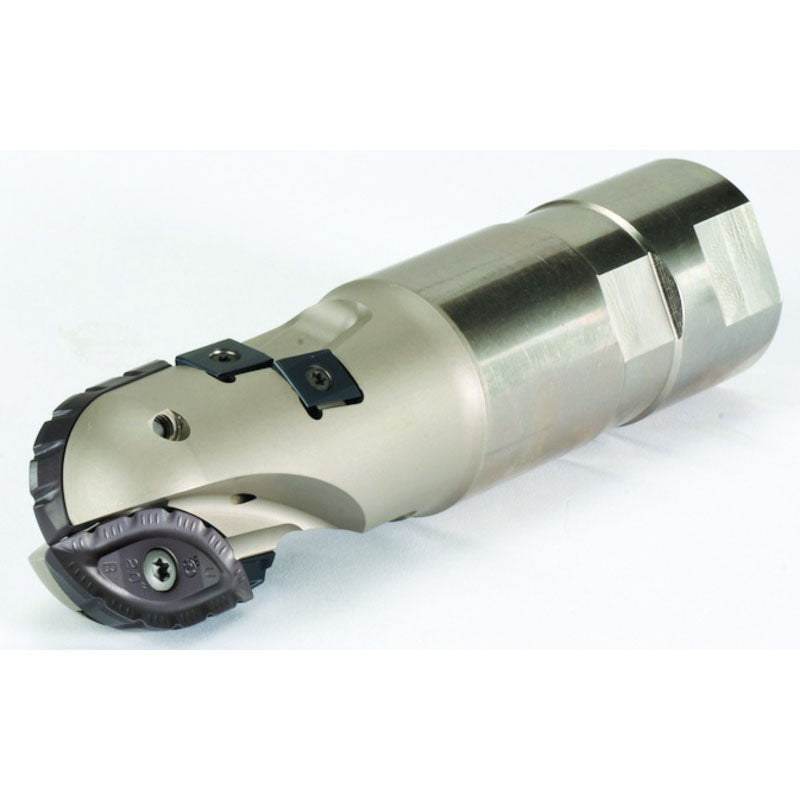

Roughing Ball Nose End Mill, 2 Effective Insert with 2 indexes Max. depth of cut: Full Radius Insert corners: .250" to .500" R
