Brand: Ingersoll Cutting Tools

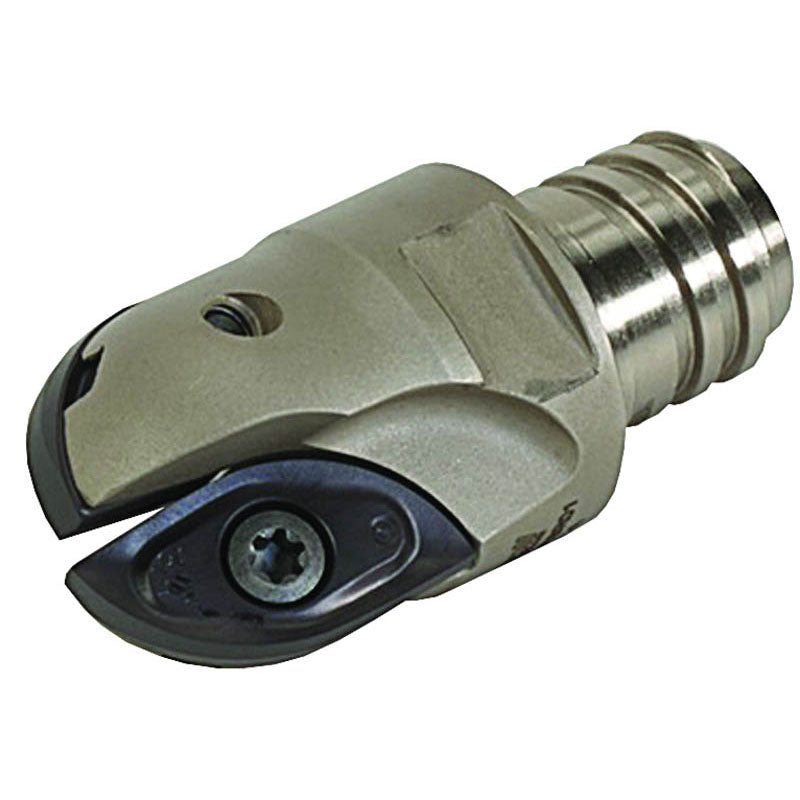

Ingersoll Cutting Tools IC523029879 1BW7V-07015X6R01
SKU: FTS-IC523029879
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 3029879 1BW7V-07015X6R01Full Description
| Cutting Diameter (DC/DCX) | 3/4" | Functional Length (LF) | 1-1/2" |
| Cutting Diameter (DC) | 3/4" | Corner Radius (RE) | 0.375 |
| Cutting Item Count (CICT) | 2 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 3/8" | Body Material | Steel |
| Application | | Helical Interpolation | Rampdown | Slotting | | Hub Diameter (DHUB) | 0.7" |
Family Description
Roughing Ball Nose End Mill, 2 Effective Insert with 2 indexes Max. depth of cut: Full Radius Insert corners: .250", .375", .500", .625", .750" & 1.000" R
