Brand: M A Ford

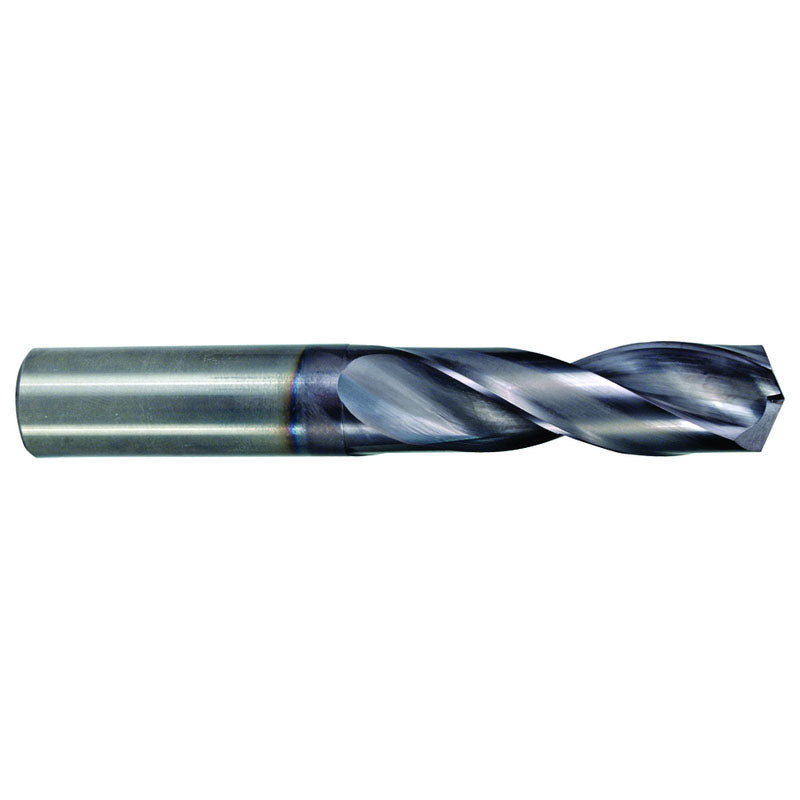

M A Ford AX2702104 1/8" Dia. x 1/8" Shank x 3/4" Flute Length x 2-1/4" OAL, 3xD, 142°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill
SKU: FTS-AX2702104
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
M A Ford 2XDSS1250A 1/8" Dia. x 1/8" Shank x 3/4" Flute Length x 2-1/4" OAL, 3xD, 142°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide DrillFull Description
| Drill Bit Size / Cutting Diameter (DC) | 1/8" | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8" | Shape | Solid Carbide |
| Decimal Equivalent | 0.125" | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Solid Carbide |
| Coating | TiAlN | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/8" | Usable Length (LU) | 3/4" |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 3/4" |
| Point Angle (SIG) | 142 Degrees | Overall Length (OAL) | 2-1/4" |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
Family Description
Alternate Manufacture # 02104
• Twister® XD ALtima® Coated High Performance Solid Carbide Stub Drills • 3X Drilling lengths shown. Recommended in non-coolant through applications. Designed for drilling a broad cross section of materials at increased feed rates. • Made from micrograin 10% cobalt grade (k20–40) - ALtima® Coated • 30° Helix to promote rapid chip evacuation • 142° Point Angle • Also available in coolant fed styles and with ALtima® coating
