Brand: Carmex

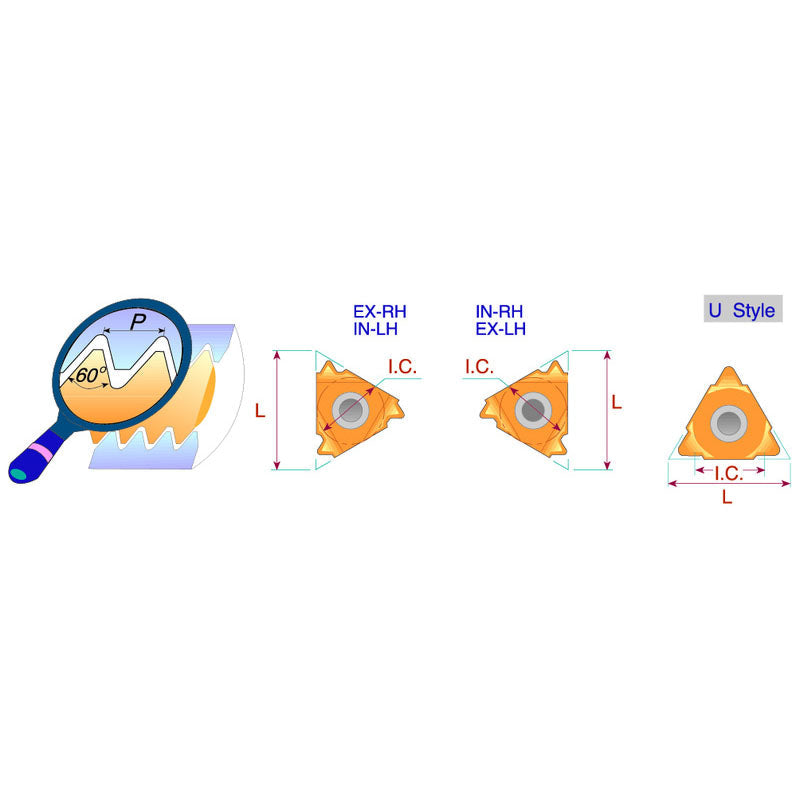

Carmex FF58120109 16IR 18UNBMA 3/8 IC - Profile Threading Insert
SKU: FTS-FF58120109
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Carmex 20401103 16IR 18UNBMA 3/8 IC - Profile Threading InsertFull Description
| Thread Standard | UN | Cutting Position | Internal |
| Inscribed Circle Diameter (IC) | 3/8" | Applicable Material | Steel|High Temp Alloy |
| Insert Length (INSL) | 16 | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 18 | Tool Type | Unified Full Profile Threading Insert |
| Grade | BMA |
• UN (Unified) Full Profile Inserts • To form a quality complete thread profile including the crest. For every thread standard and pitch a separate insert is required. Inserts are supplied in packages of 10 inserts and a screw. • Insert Grade SelectionChoose the CARMEX grade specifically formulated for your application. • Uncoated GradesK20 (C–2): Carbide grade for non-ferrous metals, aluminum and cast iron.P30 (C–5): Carbide grade for carbon and cast steels, works well at medium to low cutting speeds. • Coated GradesMXC (C–2TiN): PVD TiN coated micrograin for free cutting untreated alloy steels (below 30 HRC), for stainless steels and cast iron.P25C (C–5 TiN): PVD TiN coated grade for treated and hard alloy steels (25 HRC and up), at medium to low cutting speeds.BMA (C–2 TiAlN): PVD TiAlN coated sub-micrograin grade for stainless steels and exotic materials at medium to high cutting speeds.
