Brand: JW Winco

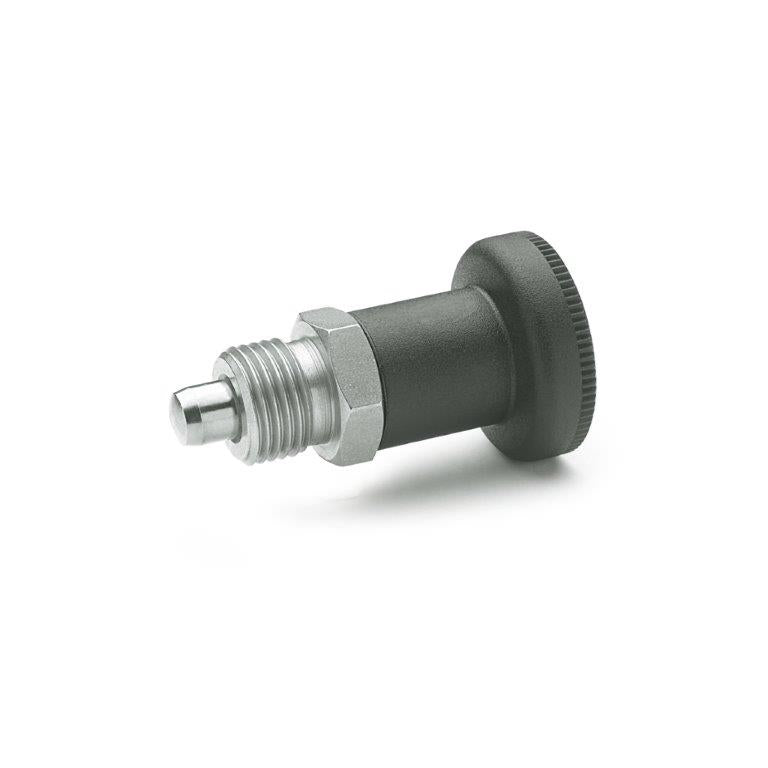

JW WINCO GN607-8-AK-NI SHORT INDEXING PLUNGER - 160FR82/AK
SKU: JW-160FR82/AK
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN607-8-AK-NI SHORT INDEXING PLUNGER - 160FR82/AKGN 607 Short indexing plungers are standard units used for wide range of indexing applications where the threaded body needs to be reduced to a minimum.
Body Material: Stainless Steel
Plunger Pin: Stainless Steel
M16 Thread
Lock Nut: Lock nut
GN607 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN607-8-AK-NI SHORT INDEXING PLUNGER - 160FR82/AK
GN 607 Short indexing plungers are standard units used for wide range of indexing applications where the threaded body needs to be reduced to a minimum.
Body Material: Stainless Steel
Plunger Pin: Stainless Steel
Thread: M16
Lock Nut: Lock nut
Plunger Dia.: 8 mm
Knob Dia.: 31 mm
Plunger Length: 8 mm
Overall Length: 54 mm
Initial Load: 13 N
End Load: 26 N
Axial Load: 500 N
