Brand: Premier HP

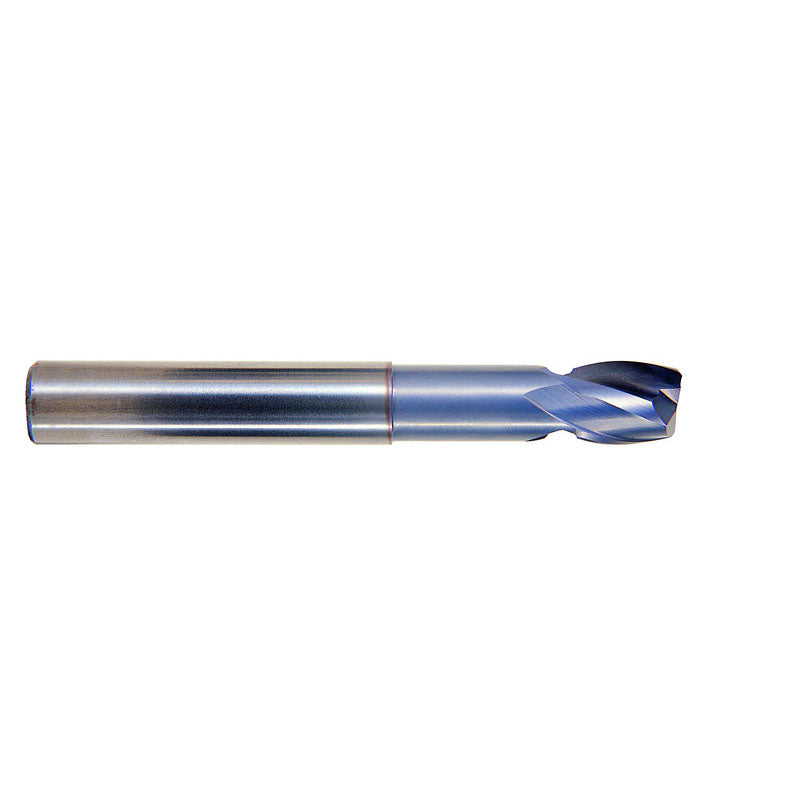

Premier HP DD25SA302016R 1/4 Dia. x 9/32 LOC x 2-1/4 OAL .020 Radius 2 Flute Carbide S/E HP End Mill-TiCN

SKU: FTS-DD25SA302016R
MPN: EG97301601

$22.37
Unit price per
Save $0.48

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Premier HP DD25SA302016R 1/4 Dia. x 9/32 LOC x 2-1/4 OAL .020 Radius 2 Flute Carbide S/E HP End Mill-TiCN

Full Description

Cutting Diameter (DC)	1/4"	End Shape	Corner Radius
Connection Diameter Machine Side (DCONMS)	1/4"	Applicable Material	Aluminum / Non-Ferrous Materials
Depth of Cut Maximum (APMX)	9/32"	Corner Radius (RE)	0.02"
Overall Length (OAL)	2-1/4"	Neck Diameter (DN)	0.226"
Cutting Edge Material	Carbide	Tool Type	Single-End\|High Performance
Coating	TiCN	Length Group	Neck Relief
Flute Count (NOF)	2	Decimal Equivalent	0.25"
Shank Type	Plain	Corner Radius (RE) / Chamfer Width (CHW)	0.02"

• AlTiN Coated Carbide Ball End Mills • Carbide 2 Flute 30 Helix Stub Length Corner Radius End Mills for Aluminum with TiCN Coating • O.D. Tolerance: -.0005" -.0015" • Shank Tolerance: 0 -.0003" • High velocity milling of aluminum, copper and other non-ferrous materials • Increased tool life & superior workpiece finishes • Maximum stock removal, chip ejection, stability • Corner radius to avoid chipping • Increased tool life and higher cutting accuracy
