Brand: Imco

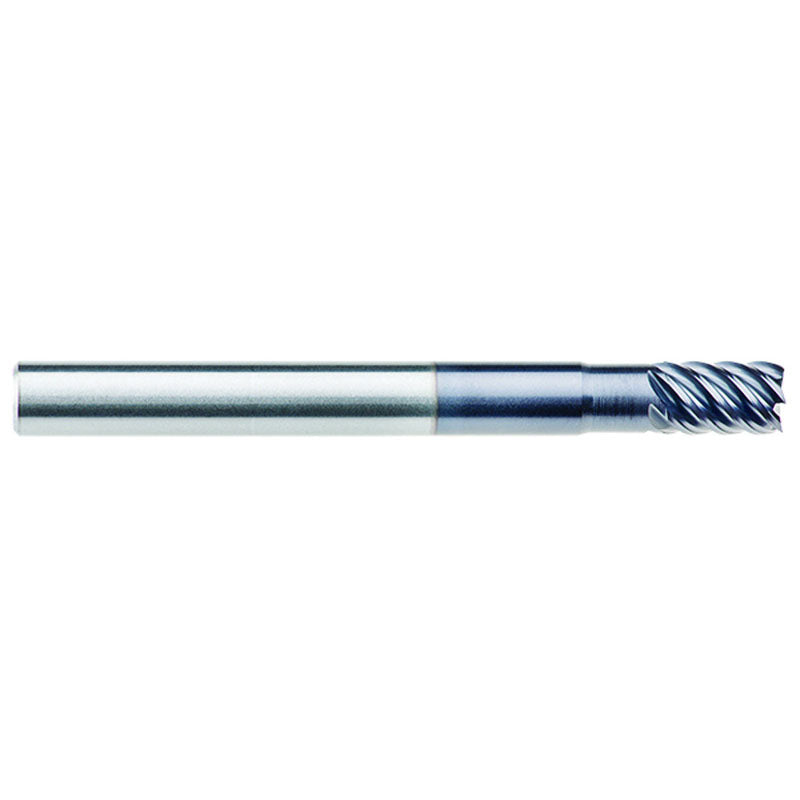

Imco DD4069495 1/4" x 1/4" x 5/8" x 3" LBS=1-3/8 AlTiNX M726N 6F .015R SL Omega-6 Mill
SKU: FTS-DD4069495
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 69495 1/4" x 1/4" x 5/8" x 3" LBS=1-3/8 AlTiNX M726N 6F .015R SL Omega-6 MillFull Description
| Cutting Diameter (DC) | 1/4" | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4" | Usable Length (LU) | 1-3/8" |
| Depth of Cut Maximum (APMX) | 5/8" | Applicable Material | Hard Materials |
| Overall Length (OAL) | 3" | Corner Radius (RE) | 0.015" |
| Cutting Edge Material | Carbide | Tool Type | Single-End|High Performance |
| Coating | TiAlN X | Decimal Equivalent | 0.25" |
| Flute Count (NOF) | 6 | Series/List # | M726N-CR |
| Shank Type | Plain | Corner Radius (RE) / Chamfer Width (CHW) | 0.015" |
• Neck relief for better clearance in deep cavities • Mills steels heat treated up to 58–62 HRC with or without coolant • Five or six high strength flutes for maximum stablility and less chatter • 50° Helix creates a high shear plane for better efficiency and chip control
