Brand: Imco

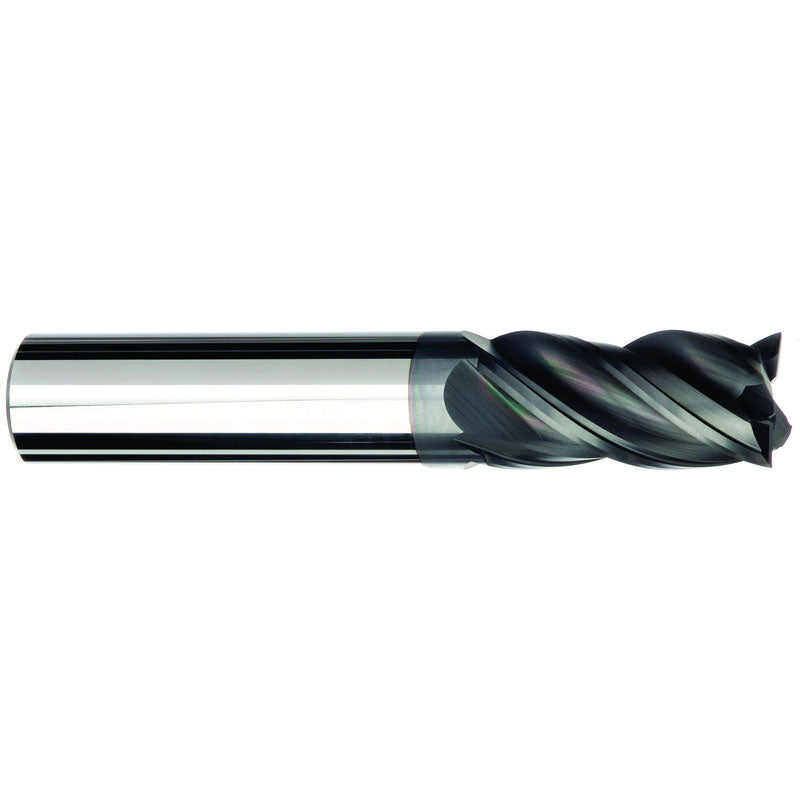

Imco DD4167520 1/4" x 1/4" x 3/8" x 2" AlCrNX M924 4F .030R SS Pow-R-Feed Mill
SKU: FTS-DD4167520
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 67520 1/4" x 1/4" x 3/8" x 2" AlCrNX M924 4F .030R SS Pow-R-Feed MillFull Description
| Cutting Diameter (DC) | 1/4" | Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 1/4" | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/8" | Corner Radius (RE) | 0.03" |
| Overall Length (OAL) | 2" | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlCrN | Decimal Equivalent | 0.25" |
| Flute Count (NOF) | 4 | Series/List # | M924-CR |
| Flute Helix Angle (FHA) | Variable | Corner Radius (RE) / Chamfer Width (CHW) | 0.03" |
• Top of its class for aggressive slotting, peripheral milling and plunging in ALL ferrous materials • Advanced coating and tool design improves tool life exponentially • Unique vibration dampening geometry for chatter-free machining • 38° Helix, round shank
