Brand: Morse Cutting Tools

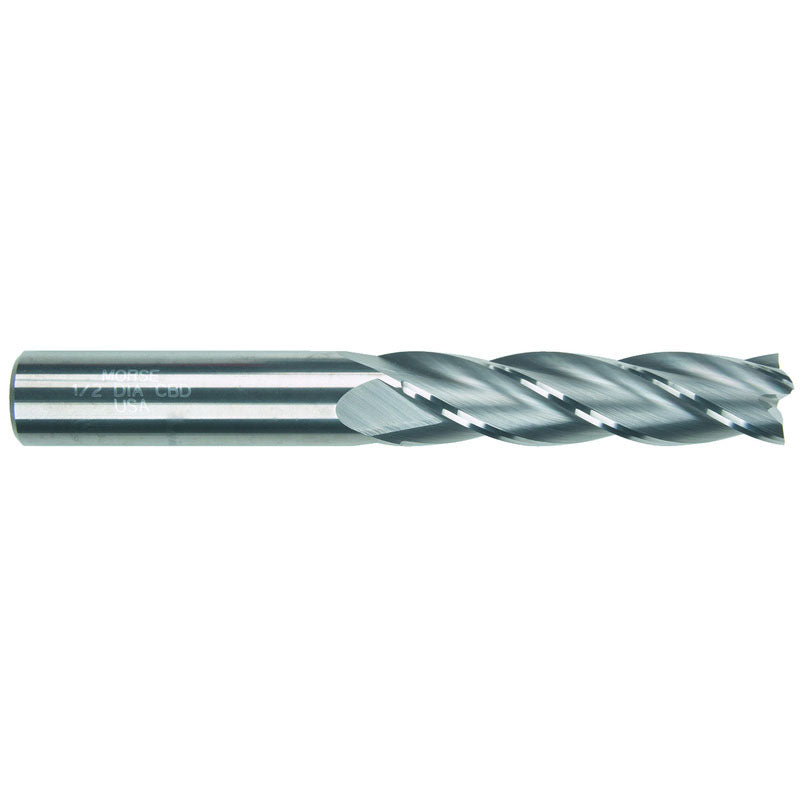

Morse Cutting Tools MT3290832 1/4" x 1/4" x 1 1/8" x 3" 4 Flute Single End Carbide Finishing Center Cutting End Mill-TiCN
SKU: FTS-MT3290832
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Morse Cutting Tools 90832 1/4" x 1/4" x 1 1/8" x 3" 4 Flute Single End Carbide Finishing Center Cutting End Mill-TiCNFull Description
| Cutting Diameter (DC) | 1/4" | Usable Length (LU) | 1-1/8" |
| Connection Diameter Machine Side (DCONMS) | 1/4" | Corner Radius (RE) | None |
| Depth of Cut Maximum (APMX) | 1-1/8" | Tool Type | Single End |
| Overall Length (OAL) | 3" | Length Group | Long |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External Coolant |
| Coating | TiCN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.25" |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Series/List # | 5955C |
• Solid Carbide 4-Flute Single End Mills • TiCN Coated Long Length
