Brand: M A Ford

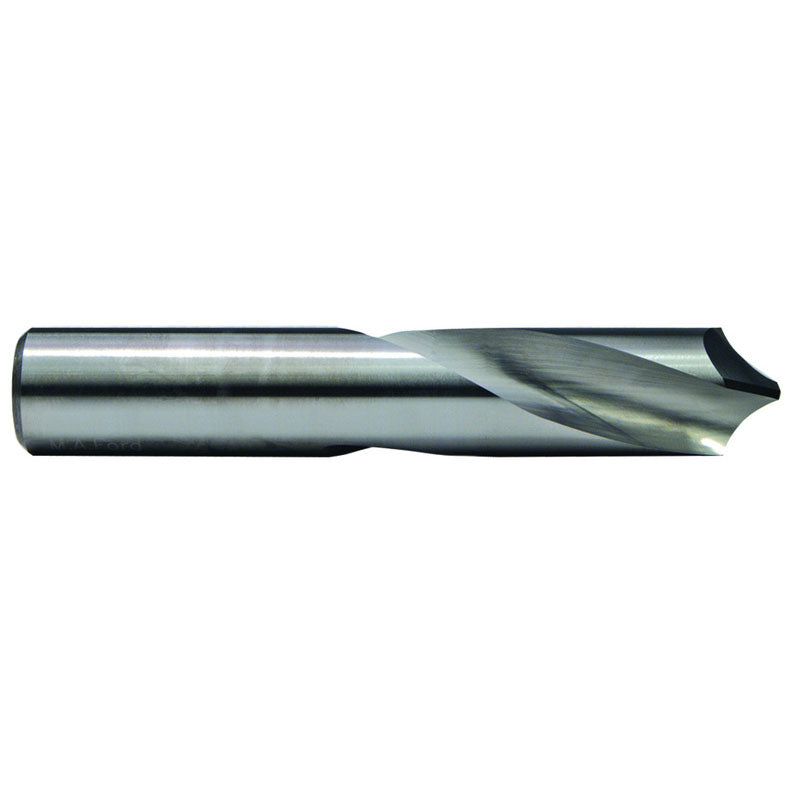

M A Ford AX4340413 1/4" x 2" OAL 90 Degree Carbide NC Spotting Drill Uncoated
SKU: FTS-AX4340413
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
M A Ford 40425000 1/4" x 2" OAL 90 Degree Carbide NC Spotting Drill UncoatedFull Description
| Drill Bit Size / Cutting Diameter (DC) | 1/4" | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4" | Flute Length | 1" |
| Decimal Equivalent | 0.25" | Drill Min. Diameter | 0.25" |
| Point Angle (SIG) | 90 Degrees | Point Diameter (PDD) | 1/4" |
| Angle | 90 Degrees | Measurement Type | Fractional |
| Flute Helix Angle (FHA) | 21 Degrees | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2" | Tool Type | NC Spotting Drill |
| Shank Type | Round | Cutting Length | 1" |
| Coating | Uncoated |
Family Description
Alternate Manufacture # 40413
• 3X Diameter drill length • 21° helix • Designed for accurate spotting on NC machines • Solid carbide construction, short lengths and no body clearance make this a very rigid tool • Can be used at high speeds and feeds, compatible with other carbide tooling. • Easy to repoint because there is no web taper
