Brand: M A Ford

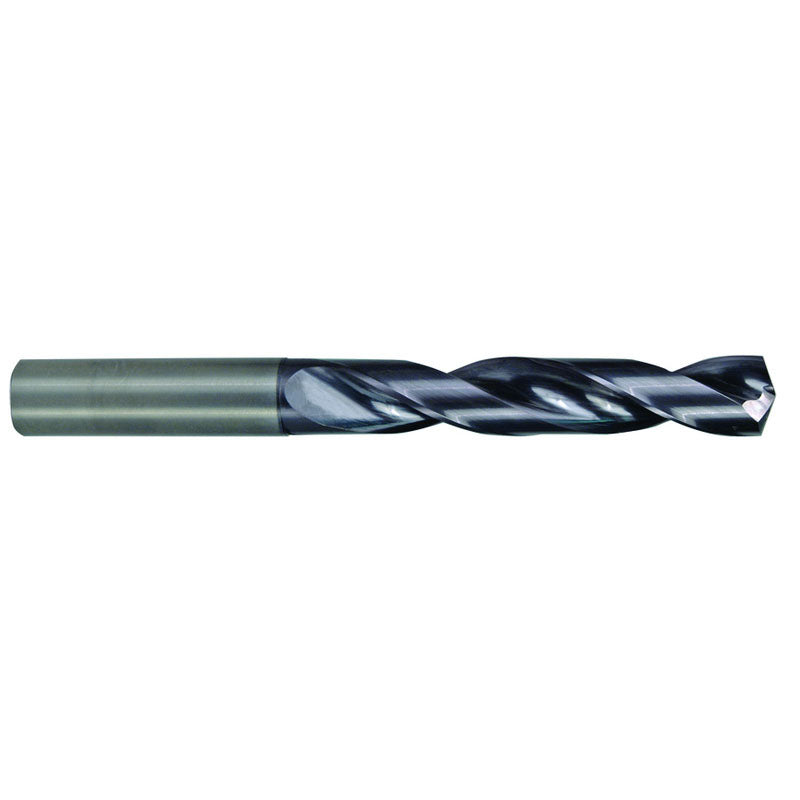

M A Ford AX2702392 13/64" Dia. x 15/64" Shank x 1.58" Flute Length x 3.23" OAL, 5xD, 142°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill
SKU: FTS-AX2702392
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
M A Ford 2XDSR2031A 13/64" Dia. x 15/64" Shank x 1.58" Flute Length x 3.23" OAL, 5xD, 142°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide DrillFull Description
| Drill Bit Size / Cutting Diameter (DC) | 13/64" | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 13/64" | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2031" | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | TiAlN | Usable Length (LU) | 1.58" |
| Connection Diameter Machine Side (DCONMS) | 15/64" | Length Chip Flute (LCF) | 1.58" |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 3.23" |
| Point Angle (SIG) | 142 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
Family Description
Alternate Manufacture # 02392
• ALtima® (AlTiN) coated for extended tool life • Drills can be reconditioned and recoated • 142° Point angle, 30° helix angle • Recommended for a broad cross section of materials at increased feed rates
