Brand: Morse Cutting Tools

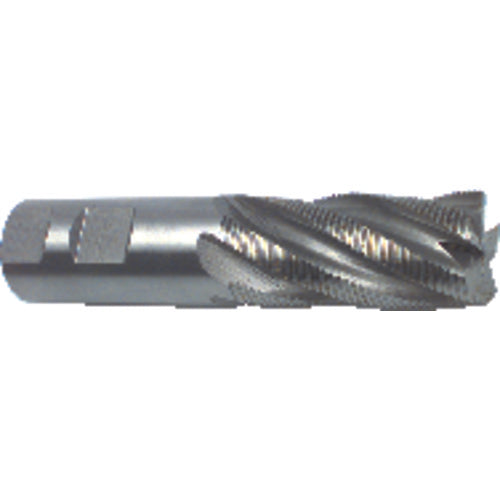

Morse Cutting Tools CV3244981 4613G 1/2 x 1/24FL RUFF
SKU: FTS-CV3244981
MPN:
Stock: 0
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Morse Cutting Tools 27681 4613G 1/2 x 1/24FL RUFFFull Description
| Cutting Diameter (DC) | 1/2" | Usable Length (LU) | 1-1/4" |
| Connection Diameter Machine Side (DCONMS) | 1/2" | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 1-1/4" | Length Group | Regular |
| Overall Length (OAL) | 3-1/4" | Flute Type | Fine Pitch |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | TiN | Style | Roughing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.500" |
| Shank Type | Plain | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 4613G |
• M-42 8% Cobalt Fine Tooth Roughing End Mills • Center Cutting 30° Helix • TiCN Coating • TiCN coating has the same lubricity as TiN but is more than 30% harder • TiCN Coating is ideal for operating at aggressive feeds and speeds and for cutting extremely abrasive and difficult-to-cut materials. • Fine tooth spacing gives 30% better tool life • Pressure of cut is distributed over many teeth • Less friction/less wear - cutting speeds & feeds remain the same as conventional end mills • Better finish • Breakage and cracks are eliminated
