Brand: Premier HP

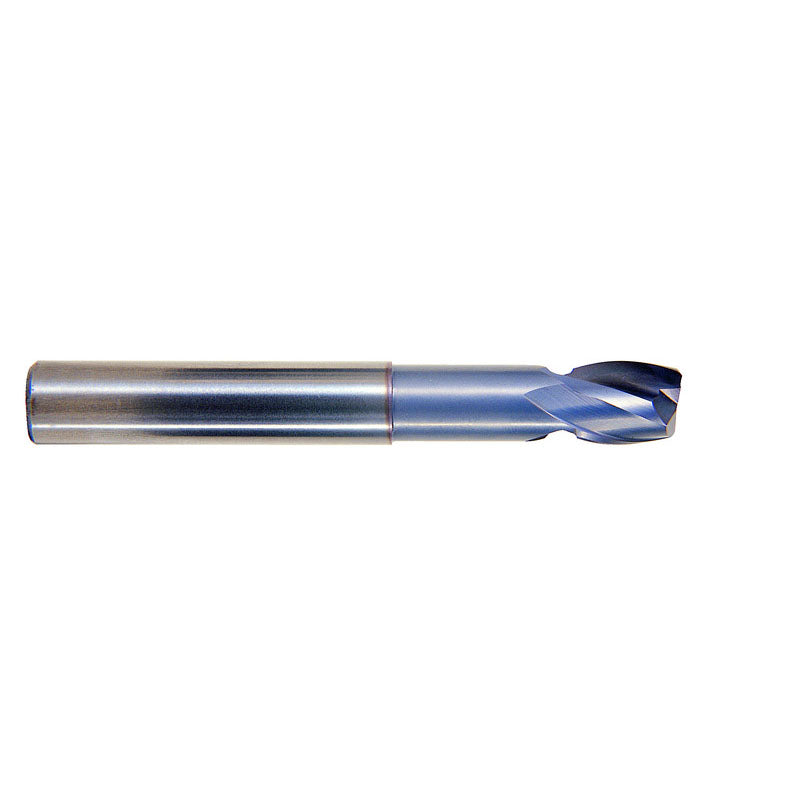

Premier HP DD25SA302032R 1/2 Dia. x 1/2 LOC x 3-3/8 OAL .040 Radius 2 Flute Carbide S/E HP End Mill-TiCN
SKU: FTS-DD25SA302032R
MPN:
Stock: 0
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Premier HP DD25SA302032R 1/2 Dia. x 1/2 LOC x 3-3/8 OAL .040 Radius 2 Flute Carbide S/E HP End Mill-TiCNFull Description
| Cutting Diameter (DC) | 1/2" | Applicable Material | Aluminum / Non-Ferrous Materials |
| Connection Diameter Machine Side (DCONMS) | 1/2" | Corner Radius (RE) | 0.04" |
| Depth of Cut Maximum (APMX) | 1/2" | Neck Diameter (DN) | 0.46" |
| Overall Length (OAL) | 3-3/8" | Tool Type | Single-End|High Performance |
| Cutting Edge Material | Carbide | Length Group | Neck Relief |
| Coating | TiCN | Decimal Equivalent | 0.5" |
| Flute Count (NOF) | 2 | Package Height | .80000 |
| Shank Type | Plain | Corner Radius (RE) / Chamfer Width (CHW) | 0.04" |
| End Shape | Corner Radius |
• AlTiN Coated Carbide Ball End Mills • Carbide 2 Flute 30 Helix Stub Length Corner Radius End Mills for Aluminum with TiCN Coating • O.D. Tolerance: -.0005" -.0015" • Shank Tolerance: 0 -.0003" • High velocity milling of aluminum, copper and other non-ferrous materials • Increased tool life & superior workpiece finishes • Maximum stock removal, chip ejection, stability • Corner radius to avoid chipping • Increased tool life and higher cutting accuracy
