Brand: Premier HP

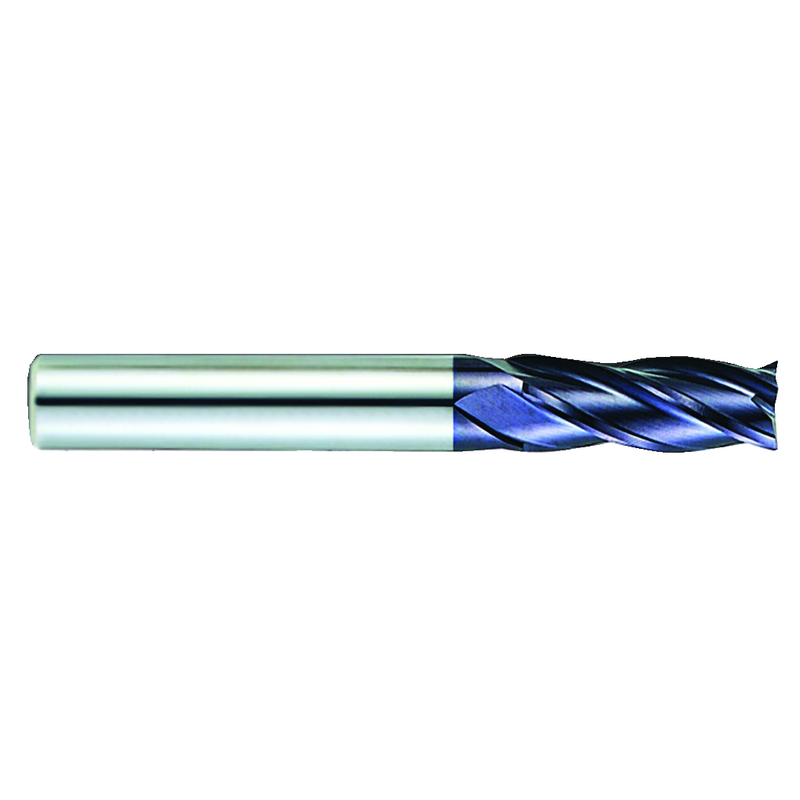

Premier HP DD25EM15303203 1/2 Dia. x 1-1/2 LOC x 3-1/2 OAL .030 Radius 4 Flute Carbide S/E HP End Mill-AlTiN
SKU: FTS-DD25EM15303203
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Premier HP DD25EM15303203 1/2 Dia. x 1-1/2 LOC x 3-1/2 OAL .030 Radius 4 Flute Carbide S/E HP End Mill-AlTiNFull Description
| Cutting Diameter (DC) | 1/2" | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2" | Usable Length (LU) | 1-1/2" |
| Depth of Cut Maximum (APMX) | 1-1/2" | Corner Radius (RE) | 0.03" |
| Overall Length (OAL) | 3-1/2" | Tool Type | Single-End|High Performance |
| Cutting Edge Material | Carbide | Length Group | Medium |
| Coating | AlTiN | Decimal Equivalent | 0.5" |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.03" |
| Shank Type | Plain |
• AlTiN Coated Carbide End Mills • 4 Flute 30 Corner Radius AlTiN Coated End Mills • HP Carbide End Mills are made of micro-grain carbide, which is processed by special high temperature furnaces • The carbide is pressed at high temperatures • This process allows no porosity after cooling andcreates a tougher, stronger end mill • O.D. Tolerance: -.0005" -.0015" • Shank Tolerance: 0 -.0003" • Can be widely used for milling from raw materials to hardened steels • Superior workpiece finishes • Longevity is more than five times as long as non-coated end mill • Through AlTiN coating endurance when dry-milling
