Brand: JW Winco
JW WINCO 10NXF4/B DIN71802-16-M10-CS ANGLED BALL JOINT
SKU: JW-10NXF4/B
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO 10NXF4/B DIN71802-16-M10-CS ANGLED BALL JOINTDIN 71802 angled ball joints consist of a ball socket and a ball shank. The angle of rotation for the type with safety catch is 15°, without safety catch is 18°.
Steel, Zinc plated Finish
DIN 71802 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

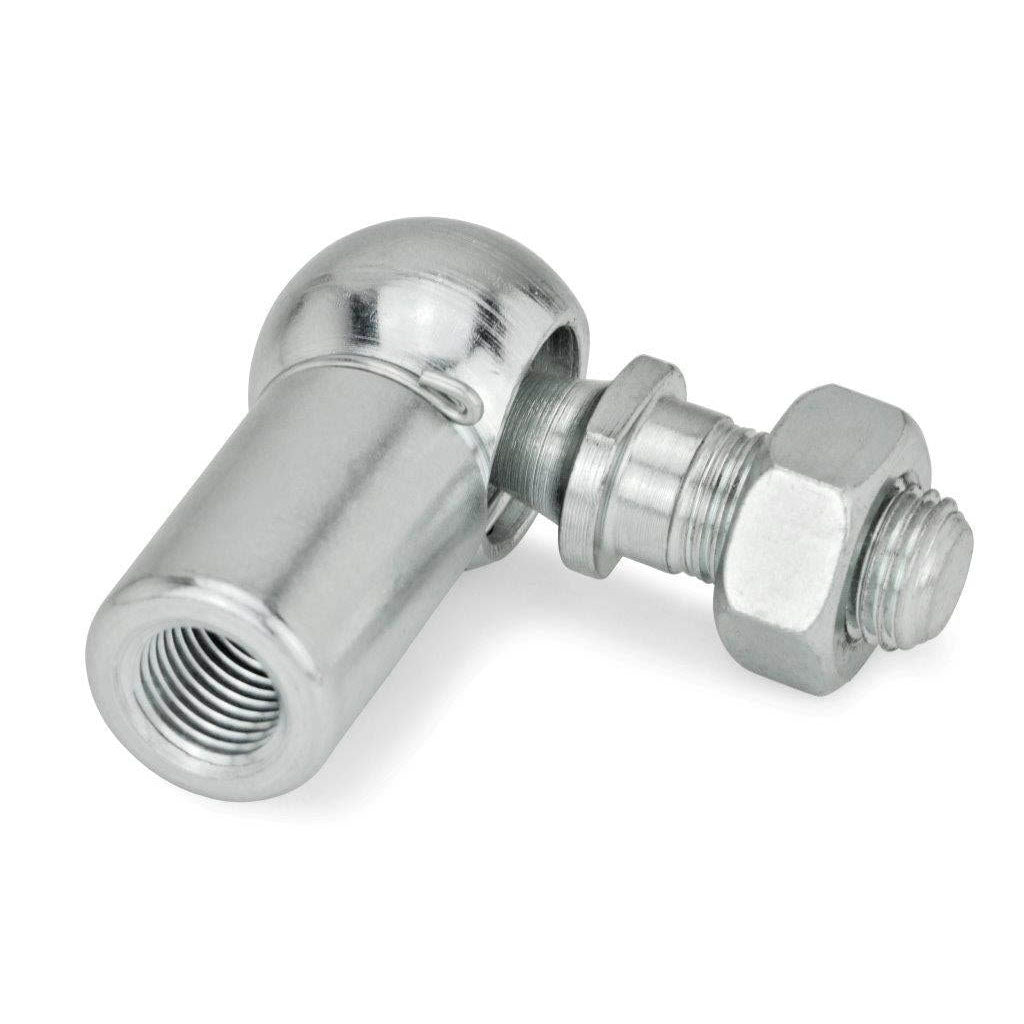

JW WINCO 10NXF4/B DIN71802-16-M10-CS ANGLED BALL JOINT
DIN 71802 angled ball joints consist of a ball socket and a ball shank. The angle of rotation for the type with safety catch is 15°, without safety catch is 18°.
Housing: Steel
Finish: Zinc plated
Ball: Steel
Safety Feature: Safety catch
Inside Ball Dia.: 16 mm
Thread Dia.: M10
Shank Dia.: M10
Ball Dia.: 24 mm
Shank Length: 20 mm
Ball Center Length: 15 mm
Housing Center Length: 35 mm
