Brand: Imco

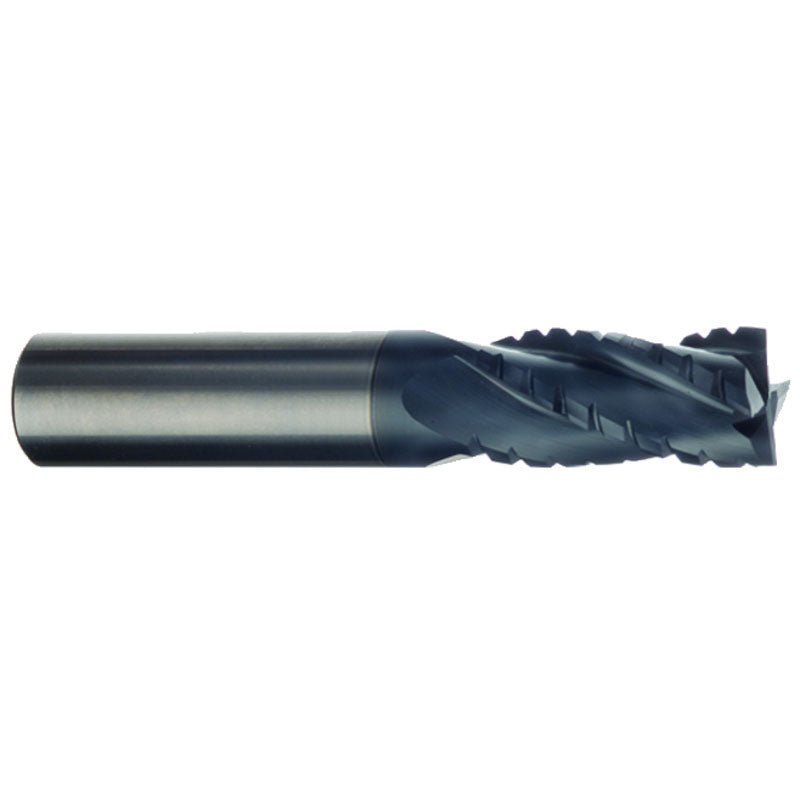

Imco DD4033302 1" x 1" x 2-1/4" x 5" AlTiN M104 4F LL Spector R/F Mill
SKU: FTS-DD4033302
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 33302 1" x 1" x 2-1/4" x 5" AlTiN M104 4F LL Spector R/F MillFull Description
| Cutting Diameter (DC) | 1" | Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 1" | End Shape | Square |
| Depth of Cut Maximum (APMX) | 2-1/4" | Usable Length (LU) | 25 mm |
| Overall Length (OAL) | 5" | Decimal Equivalent | 1" |
| Cutting Edge Material | Carbide | Series/List # | M104-SQ |
| Coating | AlTiN | Package Height | 1.50000 |
| Flute Count (NOF) | 4 |
• Solid carbide 4 flute square end. • M104 - Spector. • Rougher/finisher remove more metal without sacrificing surface finish .. • Produces smaller chips for easier evacuation. • Unique chipbreaker geometry reduces cutting forces. • Engineered flute design improves chip flow. • Requires less horsepower than other high performance mills. • Recommended for use in most materials except aluminum and material > Rc38.
