Brand: Imco

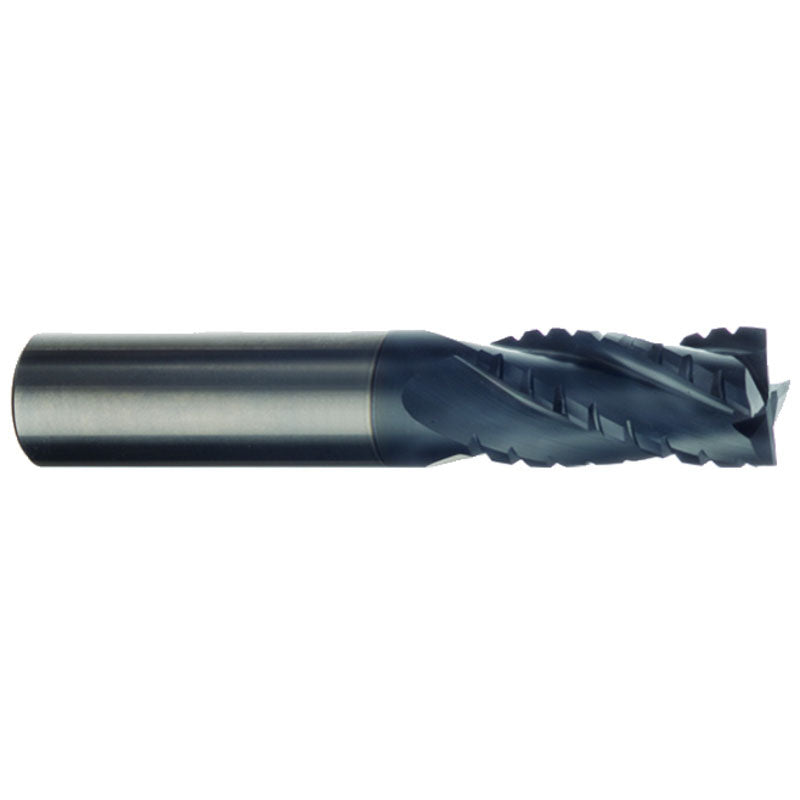

Imco DD4033161 1" x 1" x 1-1/2" x 4" AlTiN M104 4F RR Spector R/F Mill
SKU: FTS-DD4033161
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 33161 1" x 1" x 1-1/2" x 4" AlTiN M104 4F RR Spector R/F MillFull Description
| Cutting Diameter (DC) | 1" | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1" | Usable Length (LU) | 1-1/2" |
| Depth of Cut Maximum (APMX) | 1-1/2" | Applicable Material | Steel |
| Overall Length (OAL) | 4" | Style | Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 1" |
| Coating | AlTiN | Series/List # | M104-SQ |
| Flute Count (NOF) | 4 | Package Height | 1.50000 |
| Shank Type | Plain |
• Solid carbide 4 flute square end • M104 - Spector • Rougher/finisher remove more metal without sacrificing surface finish. • Produces smaller chips for easier evacuation • Unique chipbreaker geometry reduces cutting forces • Engineered flute design improves chip flow • Requires less horsepower than other high performance mills • Recommended for use in most materials except aluminum and material > Rc38
