Brand: Premier HP

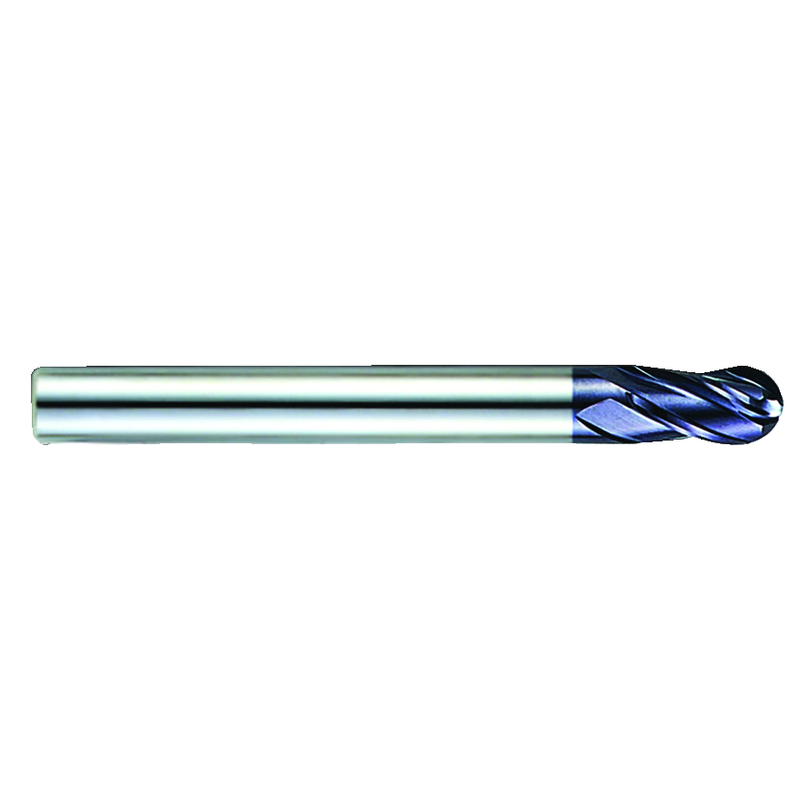

Premier HP DD25LB304100 1" Dia. - 7"OAL - AlTiN CBD-Ball Nose HP End Mill-4 FL
SKU: FTS-DD25LB304100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Premier HP DD25LB304100 1" Dia. x 1" Shank x 1" DOC x 7" OAL, Carbide AlTiN, 4 Flute, Round, Ballnose End MillFull Description
| Cutting Diameter (DC) | 1" | Usable Length (LU) | 1" |
| Connection Diameter Machine Side (DCONMS) | 1" | Corner Radius (RE) | 1/2" |
| Depth of Cut Maximum (APMX) | 1" | Neck Diameter (DN) | 0.992" |
| Overall Length (OAL) | 7" | Neck Length (LN) | 3" |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | AlTiN | Length Group | Reduced Neck |
| Flute Count (NOF) | 4 | End Shape | Ball Nose |
| Shank Type | Round | Decimal Equivalent | 1" |
• AlTiN Coated Carbide Ball End Mills • Carbide 4 Flute 30 Helix Long Reach Ball End Mills with AlTiN Coating • O.D. Tolerance: -.0005" -.0015" • Shank Tolerance: 0 -.0003" • Radius Tolerance: .001" • Can be widely used for milling from raw materials, pre-hardened steels, and to hardened steels • Deep slotting milling is possible by reduced neck • For copy-milling machines • Longevity is more than five times as long as non-coated end mill • Through AlTiN coating endurance when dry-milling
