Brand: Imco

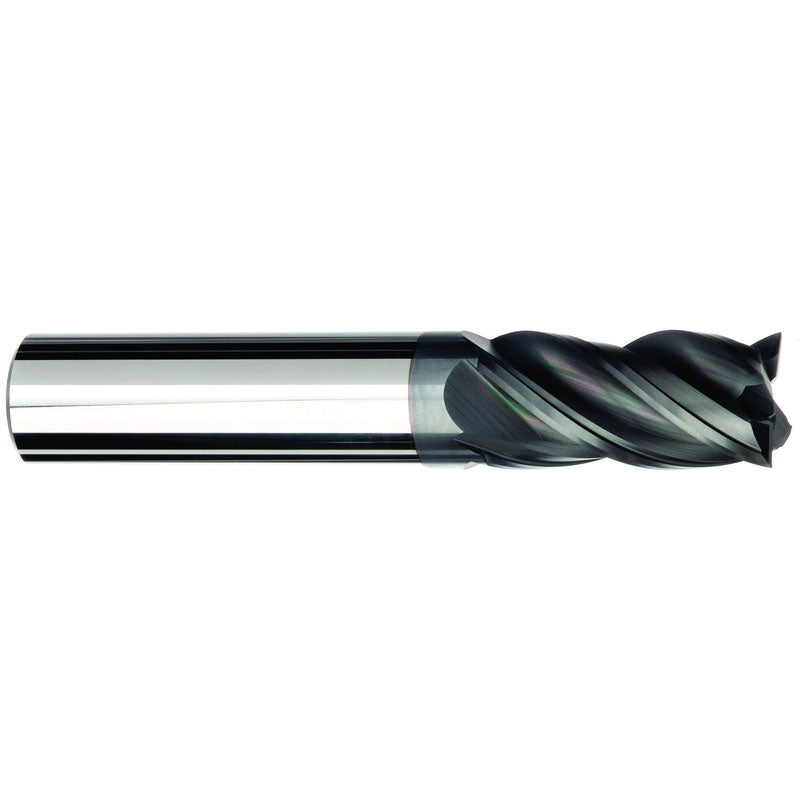

Imco DD4167417 1" x 1" x 2-1/4" x 5" AlCrNX M924 4F SQ LL Pow-R-Feed Mill
SKU: FTS-DD4167417
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 67417 1" x 1" x 2-1/4" x 5" AlCrNX M924 4F SQ LL Pow-R-Feed MillFull Description
| Cutting Diameter (DC) | 1" | Usable Length (LU) | 1-3/4" |
| Connection Diameter Machine Side (DCONMS) | 1" | Corner Radius (RE) | None |
| Depth of Cut Maximum (APMX) | 2-1/4" | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 5" | Length Group | Variable Index |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlCrNX | Decimal Equivalent | 1" |
| Flute Count (NOF) | 4 | Series/List # | M924-SQ |
| Flute Helix Angle (FHA) | Variable | Package Height | 1.50000 |
| Shank Type | Plain | Corner Radius (RE) / Chamfer Width (CHW) | None |
| End Shape | Square |
