Brand: Imco

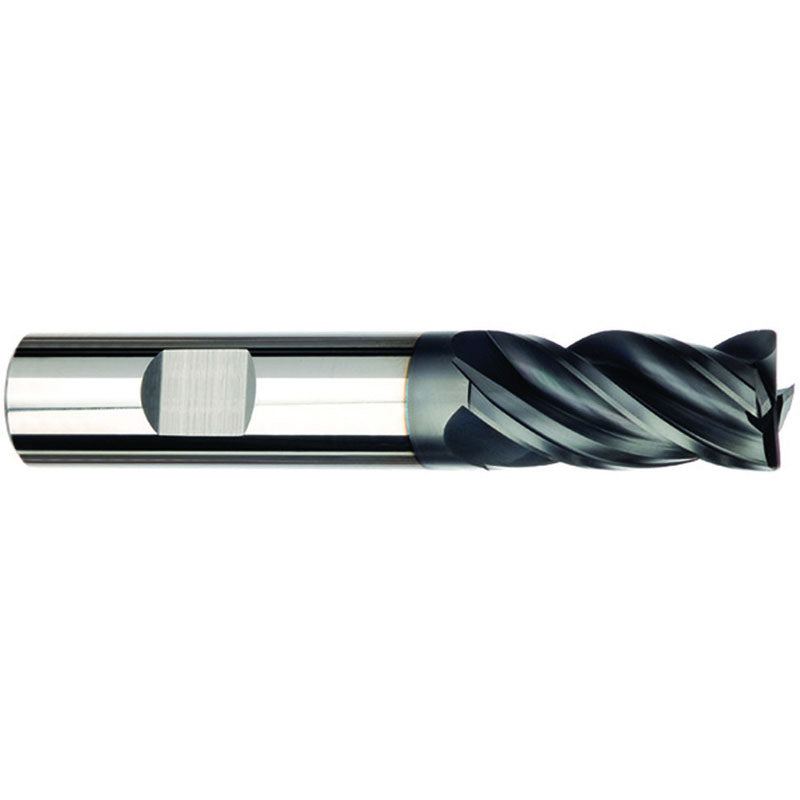

Imco DD4168214 1" x 1" x 1-3/4" x 4" AlCrNX M924 4F SQ RRW Pow-R-Feed Mill
SKU: FTS-DD4168214
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Imco 68214 1" x 1" x 1-3/4" x 4" AlCrNX M924 4F SQ RRW Pow-R-Feed MillFull Description
| Cutting Diameter (DC) | 1" | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1" | Usable Length (LU) | 1-1/2" |
| Depth of Cut Maximum (APMX) | 1-3/4" | Corner Radius (RE) | None |
| Overall Length (OAL) | 4" | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Variable Index |
| Coating | AlCrNX | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 1" |
| Flute Helix Angle (FHA) | Variable | Series/List # | M924-SQ |
| Shank Type | Weldon | Corner Radius (RE) / Chamfer Width (CHW) | None |
