Brand: Carmex

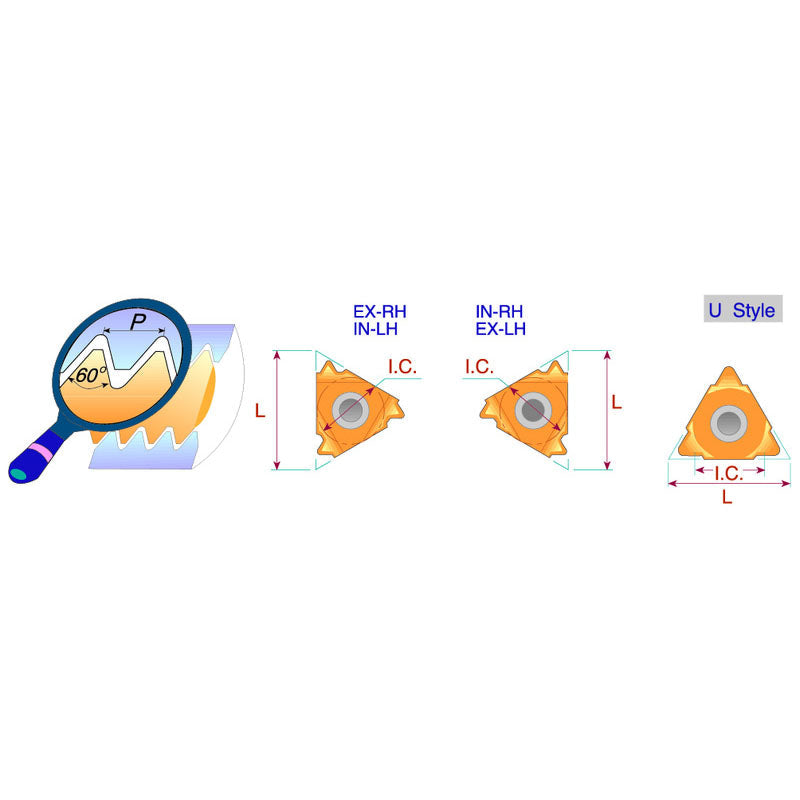

Carmex FF58043927 06IR A60BXC 5/32 IC - Profile Threading Insert

SKU: FTS-FF58043927
MPN: 06IRA60BXC

$17.48
Unit price per
Save $3.12

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Carmex 20100092 06IR A60BXC 5/32 IC - Profile Threading Insert

Full Description

Inscribed Circle Diameter (IC)	5/32"	Applicable Material	Stainless Steel
Insert Length (INSL)	6	Cutting Direction (HAND)	Right Hand
Threads per Inch (TPI)	48-20	Angle	60 Degrees
Grade	BXC	Tool Type	60° Partial Profile Threading Insert
Cutting Position	Internal

• Partial Profile 60° Inserts • The V (partial) profile insert cuts without "topping" the O.D. of the thread. The same insert can be used for a range of different thread pitches. Inserts are supplied in packages of 10 inserts and a screw. • Insert Grade SelectionChoose the CARMEX grade specifically formulated for your application. • Uncoated GradesK20 (C–2): Carbide grade for non-ferrous metals, aluminum and cast iron.P30 (C–5): Carbide grade for carbon and cast steels, works well at medium to low cutting speeds. • Coated GradesMXC (C–2TiN): PVD TiN coated micrograin for free cutting untreated alloy steels (below 30 HRC), for stainless steels and cast iron.P25C (C-TiN): PVD TiN coated grade for treated and hard alloy steels (25 HRC and up), at medium to low cutting speeds.BMA (C–2 TiAlN): PVD TiAlN coated sub-micrograin grade for stainless steels and exotic materials at medium to high cutting speeds.
