Brand: Carmex

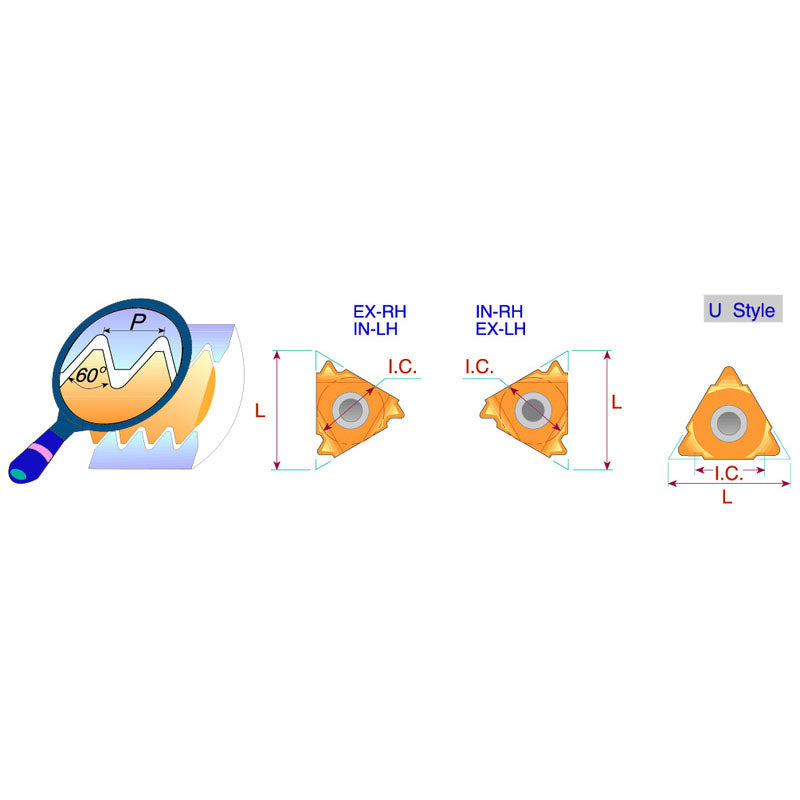

Carmex FF58092942 06IR 24UNBXC 5/32 IC - Profile Threading Insert

SKU: FTS-FF58092942
MPN: 06IR24UNBXC

$17.48
Unit price per
Save $3.12

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Carmex 20100051 06IR 24UNBXC 5/32 IC - Profile Threading Insert

Full Description

Thread Standard	UN	Cutting Position	Internal
Inscribed Circle Diameter (IC)	5/32"	Applicable Material	Stainless Steel
Insert Length (INSL)	6	Cutting Direction (HAND)	Right Hand
Threads per Inch (TPI)	24	Tool Type	Unified Full Profile Threading Insert
Grade	BXC

• UN (Unified) Full Profile Internal Threading Inserts • To form a quality complete thread profile including the crest. For every thread standard and pitch a separate insert is required. Inserts are supplied in packages of 10 inserts and a screw. • Insert Grade SelectionChoose the CARMEX grade specifically formulated for your application. • BXC: PVD TiN coated grade for applications that require Super Low cutting speeds (such as very small diameters in which even high rotational speed generates only a low cutting speed). • T20: PVD TiN coated grade for low cutting speed. Works well with wide range of stainless steels.
