NAAMS Wedge Bracket Components
Freer Tool & Supply’s NAAMS wedge bracket components collection supports rigid, repeatable mounting for robotic automation, EOAT (end-of-arm tooling), and fixture builds where angled positioning is required. Wedge brackets are used to create precise offsets and angles for tooling, sensors, grippers, and mounting plates—helping teams maintain consistent clearance, reach, and part presentation while keeping assemblies modular and easy to service.
| NAAMS Standards Wedge Bracket Components | |||||
|---|---|---|---|---|---|
| NAAMS Code | Height | Spec | NAAMS Code | Height | Spec |
| AWB101 | 150 | 160mm Bolt Circle on Wrist 15 Degrees |
AWB510 | 375.0 | 200mm Bolt Circle on Wrist 30 Degrees |
| AWB102 | 175 | AWB511 | 400.0 | ||
| AWB103 | 200 | AWB512 | 425.0 | ||
| AWB104 | 225 | AWB513 | 450.0 | ||
| AWB105 | 250 | AWB514 | 475.0 | ||
| AWB106 | 275 | AWB515 | 500.0 | ||
| AWB107 | 300 | AWB516 | 525.0 | ||
| AWB108 | 325 | AWB517 | 550.0 | ||
| AWB109 | 350 | AWB518 | 575.0 | ||
| AWB110 | 375 | AWB519 | 600.0 | ||

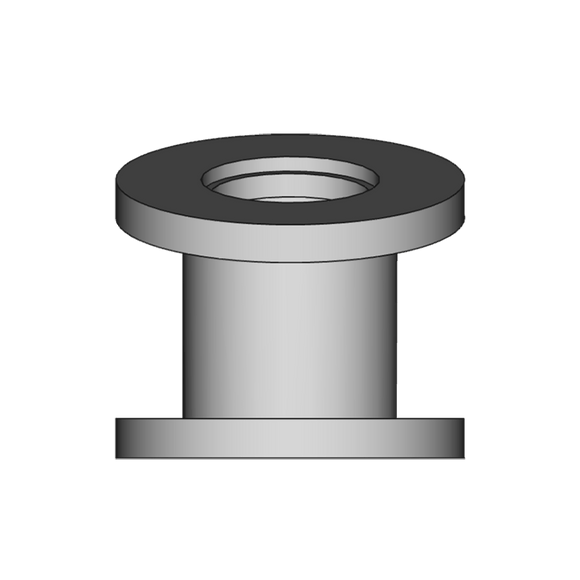

| AWB111 | 400 | AWB601 | 200.0 | 200mm Bolt Circle on Wrist 45 Degrees |
|
| AWB112 | 425 | AWB602 | 225.0 | ||
| AWB113 | 450 | AWB603 | 250.0 | ||
| AWB114 | 475 | AWB604 | 275.0 | ||
| AWB115 | 500 | AWB605 | 300.0 | ||
| AWB116 | 525 | AWB606 | 325.0 | ||
| AWB117 | 550 | AWB607 | 350.0 | ||
| AWB118 | 575 | AWB608 | 375.0 | ||
| AWB119 | 600 | AWB609 | 400.0 | ||
| AWB201 | 150 | 160mm Bolt Circle on Wrist 30 Degrees |
AWB610 | 425.0 | |
| AWB202 | 175 | AWB611 | 450.0 | ||

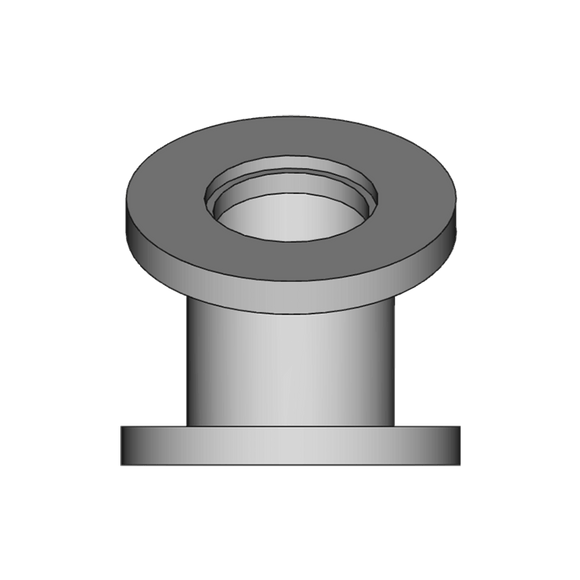

| AWB203 | 200 | AWB612 | 475.0 | ||
| AWB204 | 225 | AWB613 | 500.0 | ||
| AWB205 | 250 | AWB614 | 525.0 | ||
| AWB206 | 275 | AWB615 | 550.0 | ||
| AWB207 | 300 | AWB616 | 575.0 | ||
| AWB208 | 325 | AWB617 | 600.0 | ||
| AWB209 | 350 | AWB701 | 150.0 | 125mm Bolt Circle on Wrist 15 Degrees |
|
| AWB210 | 375 | AWB702 | 175.0 | ||
| AWB211 | 400 | AWB703 | 200.0 | ||
| AWB212 | 425 | AWB704 | 225.0 | ||
| AWB213 | 450 | AWB705 | 250.0 | ||
| AWB214 | 475 | AWB706 | 275.0 | ||
| AWB215 | 500 | AWB707 | 300.0 | ||
| AWB216 | 525 | AWB708 | 325.0 | ||
| AWB217 | 550 | AWB709 | 350.0 | ||
| AWB218 | 575 | AWB710 | 375.0 | ||
| AWB219 | 600 | AWB711 | 400.0 | ||
| AWB301 | 150 | 160mm Bolt Circle on Wrist 45 Degrees |
AWB712 | 425.0 | |
| AWB302 | 175 | AWB713 | 450.0 | ||
| AWB303 | 200 | AWB714 | 475.0 | ||
| AWB304 | 225 | AWB715 | 500.0 | ||
| AWB305 | 250 | AWB716 | 525.0 | ||
| AWB306 | 275 | AWB717 | 550.0 | ||
| AWB307 | 300 | AWB718 | 575.0 | ||
| AWB308 | 325 | AWB719 | 600.0 | ||
| AWB309 | 350 | AWB801 | 150.0 | 125mm Bolt Circle on Wrist 30 Degrees |
|
| AWB310 | 375 | AWB802 | 175.0 | ||
| AWB311 | 400 | AWB803 | 200.0 | ||
| AWB312 | 425 | AWB804 | 225.0 | ||
| AWB313 | 450 | AWB805 | 250.0 | ||
| AWB314 | 475 | AWB806 | 275.0 | ||
| AWB315 | 500 | AWB807 | 300.0 | ||
| AWB316 | 525 | AWB808 | 325.0 | ||
| AWB317 | 550 | AWB809 | 350.0 | ||
| AWB318 | 575 | AWB810 | 375.0 | ||
| AWB319 | 600 | AWB811 | 400.0 | ||
| AWB401 | 150 | 200mm Bolt Circle on Wrist 15 Degrees |
AWB812 | 425.0 | |
| AWB402 | 175 | AWB813 | 450.0 | ||
| AWB403 | 200 | AWB814 | 475.0 | ||
| AWB404 | 225 | AWB815 | 500.0 | ||
| AWB405 | 250 | AWB816 | 525.0 | ||
| AWB406 | 275 | AWB817 | 550.0 | ||
| AWB407 | 300 | AWB818 | 575.0 | ||
| AWB408 | 325 | AWB819 | 600.0 | ||
| AWB409 | 350 | AWB901 | 150.0 | 125mm Bolt Circle on Wrist 45 Degrees |
|
| AWB410 | 375 | AWB902 | 175.0 | ||
| AWB411 | 400 | AWB903 | 200.0 | ||
| AWB412 | 425 | AWB904 | 225.0 | ||
| AWB413 | 450 | AWB905 | 250.0 | ||
| AWB414 | 475 | AWB906 | 275.0 | ||
| AWB415 | 500 | AWB907 | 300.0 | ||
| AWB416 | 525 | AWB908 | 325.0 | ||
| AWB417 | 550 | AWB909 | 350.0 | ||
| AWB418 | 575 | AWB910 | 375.0 | ||
| AWB419 | 600 | AWB911 | 400.0 | ||
| AWB501 | 150.0 | 200mm Bolt Circle on Wrist 30 Degrees |
AWB912 | 425.0 | |
| AWB502 | 175.0 | AWB913 | 450.0 | ||
| AWB503 | 200.0 | AWB914 | 475.0 | ||
| AWB504 | 225.0 | AWB915 | 500.0 | ||
| AWB505 | 250.0 | AWB916 | 525.0 | ||
| AWB506 | 275.0 | AWB917 | 550.0 | ||
| AWB507 | 300.0 | AWB918 | 575.0 | ||
| AWB508 | 325.0 | AWB919 | 600.0 | ||
| AWB509 | 350.0 | ||||
