NAAMS Steel Risers
Freer Tool & Supply’s NAAMS steel risers collection supports rigid, repeatable height spacing for welding fixtures, assembly tooling, and automation builds where strength and stability are critical. Steel risers are used to raise locating, clamping, and support components to the correct working height while maintaining a solid foundation—helping reduce deflection, improve alignment retention, and keep part location consistent through high-cycle production
NAAMS steel risers are manufactured from ASTM A-36 steel and are available in a variety of heights. Metric options include M10 x 1.5 tapped holes or 11.0 mm holes, while standard versions feature 3/8-16 tapped holes or 13/32" holes.
| NAAMS Code | "A" | B Tap Holes | WT. kg | ||
|---|---|---|---|---|---|
| E | M | ||||
| AAB100E | AAB100M | 100.00 | 3/8-16 tap | M10x1.5 | 5.44 |
| AAB101E | AAB101M | 100.00 | 13/32 | 11.0 | 5.44 |
| AAB150E | AAB150M | 150.00 | 3/8-16 tap | M10x1.5 | 6.35 |
| AAB151E | AAB151M | 150.00 | 13/32 | 11.0 | 6.35 |
| AAB200E | AAB200M | 200.00 | 3/8-16 tap | M10x1.5 | 7.71 |
| AAB201E | AAB201M | 200.00 | 13/32 | 11.0 | 7.71 |
| AAB250E | AAB250M | 250.00 | 3/8-16 tap | M10x1.5 | 9.07 |
| AAB251E | AAB251M | 250.00 | 13/32 | 11.0 | 9.07 |
| AAB300E | AAB300M | 300.00 | 3/8-16 tap | M10x1.5 | 10.43 |
| AAB301E | AAB301M | 300.00 | 13/32 | 11.0 | 10.43 |
| AAB350E | AAB350M | 350.00 | 3/8-16 tap | M10x1.5 | 12.24 |
| AAB351E | AAB351M | 350.00 | 13/32 | 11.0 | 12.24 |
| AAB400E | AAB400M | 400.00 | 3/8-16 tap | M10x1.5 | 13.61 |
| AAB401E | AAB401M | 400.00 | 13/32 | 11.0 | 13.61 |
| AHB001E | AHB001M | - | 13/32 | 11.0 | 2.5 |
| AHB002E | AHB002M | - | 3/8-16 tap | M10 x 1.5 | 2.5 |
| - | ARA100M | 100.00 | - | M10x1.5 | 9.2 |
| - | ARA101M | 100.00 | - | 11.0 | 9.2 |
| - | ARA150M | 150.00 | - | M10x1.5 | 11.2 |
| - | ARA151M | 150.00 | - | 11.0 | 11.2 |
| - | ARA200M | 200.00 | - | M10x1.5 | 13.1 |
| - | ARA201M | 200.00 | - | 11.0 | 13.1 |
| - | ARA250M | 250.00 | - | M10x1.5 | 14.9 |
| - | ARA251M | 250.00 | - | 11.0 | 14.9 |
| - | ARA300M | 300.00 | - | M10x1.5 | 16.1 |
| - | ARA301M | 300.00 | - | 11.0 | 16.1 |
| - | ARA350M | 350.00 | - | M10x1.5 | 18.4 |
| - | ARA351M | 350.00 | - | 11.0 | 18.4 |
| - | ARA400M | 400.00 | - | M10x1.5 | 19.6 |
| - | ARA401M | 400.00 | - | 11.0 | 19.6 |
| ARA450E | ARA450M | 450.00 | 3/8-16 tap | M10x1.5 | 24.5 |
| ARA451E | ARA451M | 450.00 | 13/32 | 11.0 | 24.5 |
| ARA500E | ARA500M | 500.00 | 3/8-16 tap | M10x1.5 | 28.1 |
| ARA501E | ARA501M | 500.00 | 13/32 | 11.0 | 28.1 |
| ARA550E | ARA550M | 550.00 | 3/8-16 tap | M10x1.5 | 29.5 |
| ARA551E | ARA551M | 550.00 | 13/32 | 11.0 | 29.5 |
| ARA600E | ARA600M | 600.00 | 3/8-16 tap | M10x1.5 | 31.7 |
| ARA601E | ARA601M | 600.00 | 13/32 | 11.0 | 31.7 |
| ARA650E | ARA650M | 650.00 | 3/8-16 tap | M10x1.5 | 34.5 |
| ARA651E | ARA651M | 650.00 | 13/32 | 11.0 | 34.5 |
| ARA700E | ARA700M | 700.00 | 3/8-16 tap | M10x1.5 | 37.2 |
| ARA701E | ARA701M | 700.00 | 13/32 | 11.0 | 37.2 |
| ARA750E | ARA750M | 750.00 | 3/8-16 tap | M10x1.5 | 39.0 |
| ARA751E | ARA751M | 750.00 | 13/32 | 11.0 | 39.0 |
| ARA800E | ARA800M | 800.00 | 3/8-16 tap | M10x1.5 | 44.4 |
| ARA801E | ARA801M | 800.00 | 13/32 | 11.0 | 44.4 |

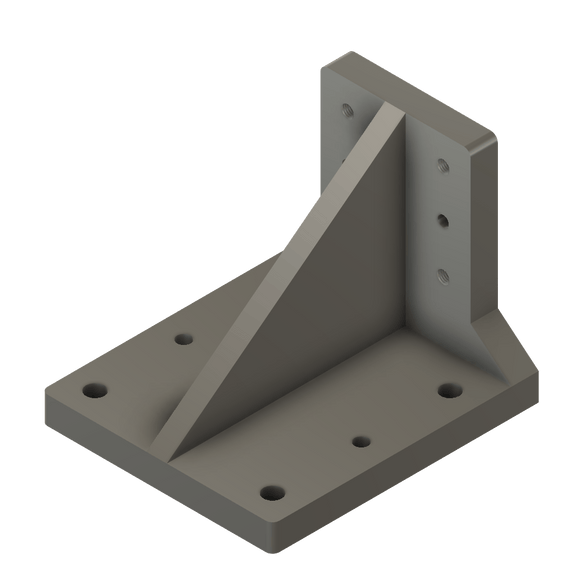

NAAMS Riser Angle Bracket ARA100M
SKU: FN-ARA100M
MPN: ARA100M

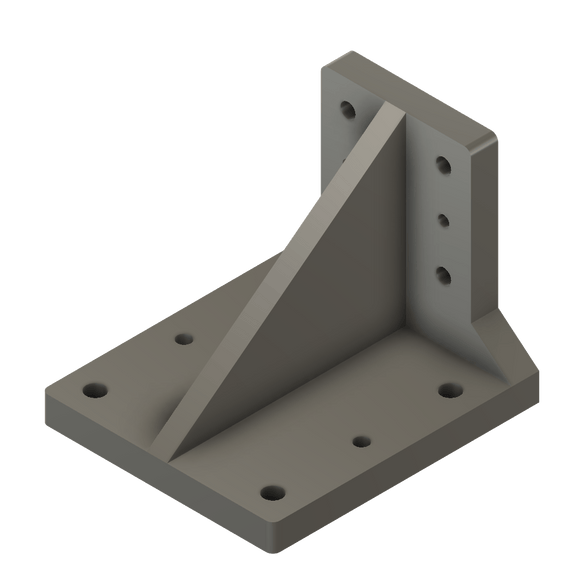

NAAMS Riser Angle Bracket ARA101M
SKU: FN-ARA101M
MPN: ARA101M
NAAMS Riser Angle Bracket ARA150M
SKU: FN-ARA150M
MPN: ARA150M

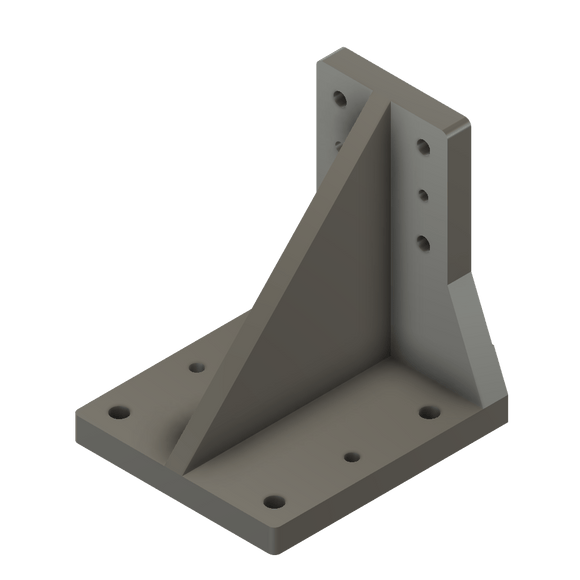

NAAMS Riser Angle Bracket ARA151M
SKU: FN-ARA151M
MPN: ARA151M
NAAMS Riser Angle Bracket ARA200M
SKU: FN-ARA200M
MPN: ARA200M

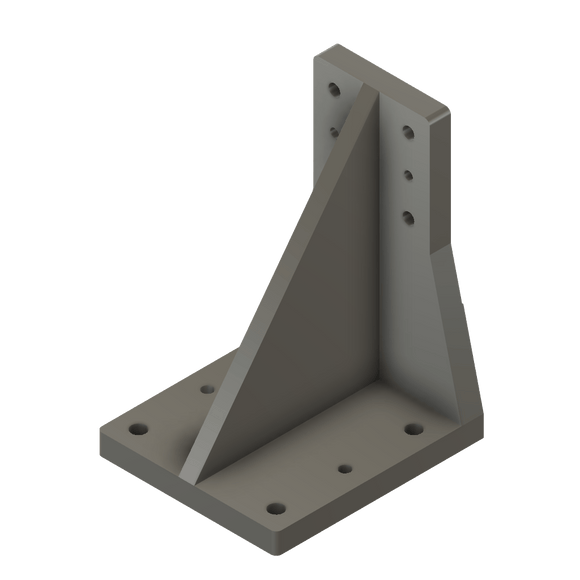

NAAMS Riser Angle Bracket ARA201M
SKU: FN-ARA201M
MPN: ARA201M

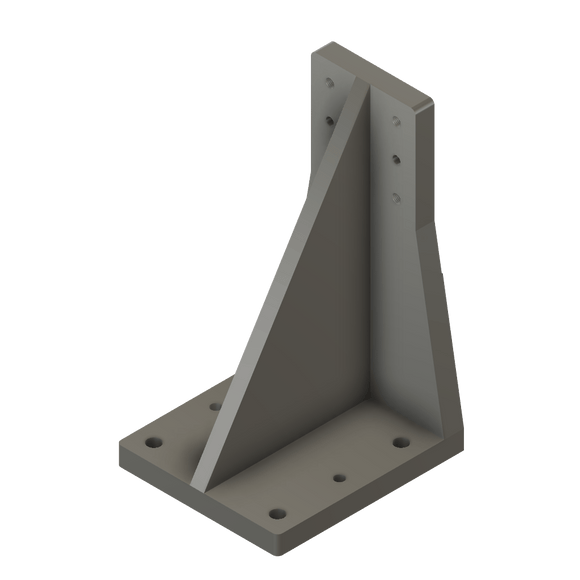

NAAMS Riser Angle Bracket ARA250M
SKU: FN-ARA250M
MPN: ARA250M

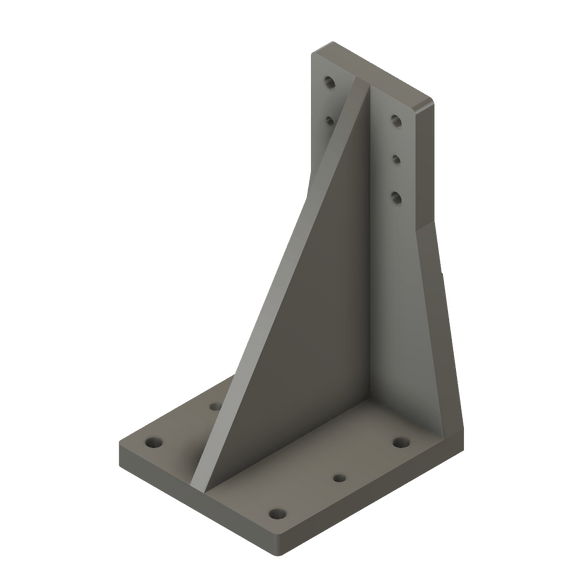

NAAMS Riser Angle Bracket ARA251M
SKU: FN-ARA251M
MPN: ARA251M
NAAMS Riser Angle Bracket ARA300M
SKU: FN-ARA300M
MPN: ARA300M

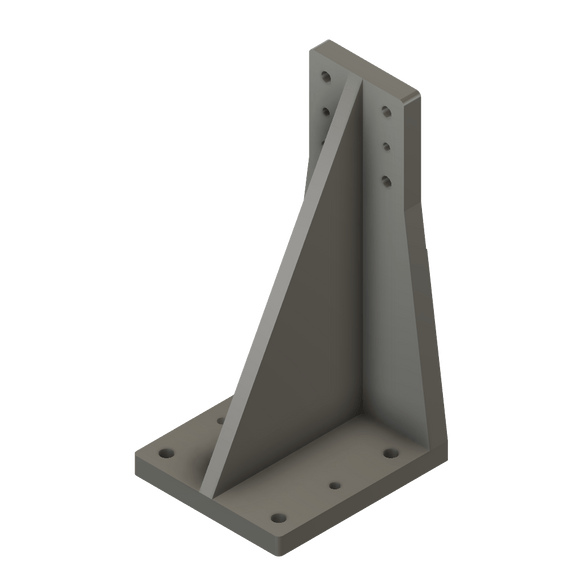

NAAMS Riser Angle Bracket ARA301M
SKU: FN-ARA301M
MPN: ARA301M
NAAMS Riser Angle Bracket ARA350M
SKU: FN-ARA350M
MPN: ARA350M

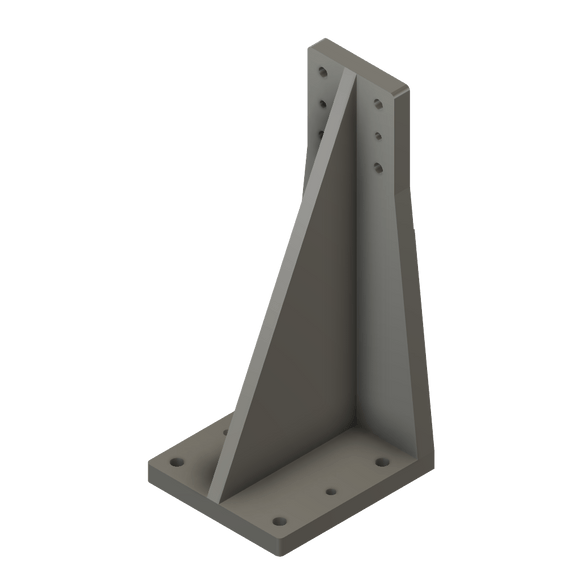

NAAMS Riser Angle Bracket ARA351M
SKU: FN-ARA351M
MPN: ARA351M

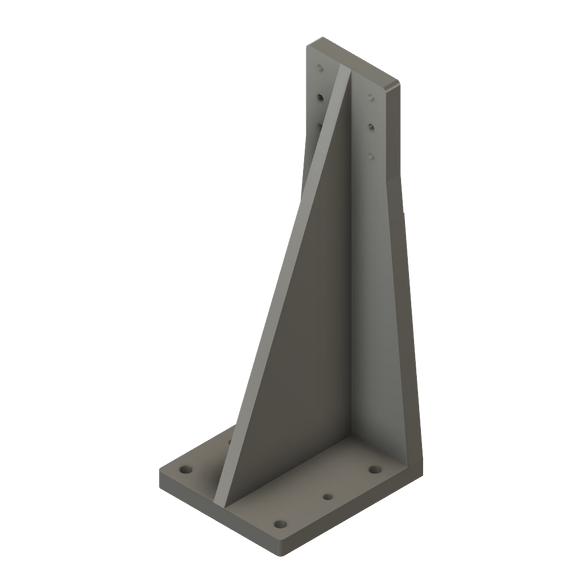

NAAMS Riser Angle Bracket ARA400M
SKU: FN-ARA400M
MPN: ARA400M
NAAMS Riser Angle Bracket ARA401M
SKU: FN-ARA401M
MPN: ARA401M

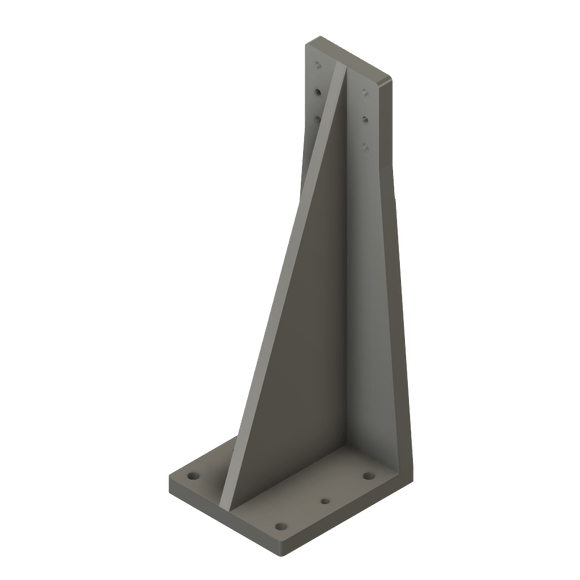

NAAMS Riser Angle Bracket ARA450M
SKU: FN-ARA450M
MPN: ARA450M
NAAMS Riser Angle Bracket ARA451M
SKU: FN-ARA451M
MPN: ARA451M
NAAMS Riser Angle Bracket ARA500M
SKU: FN-ARA500M
MPN: ARA500M

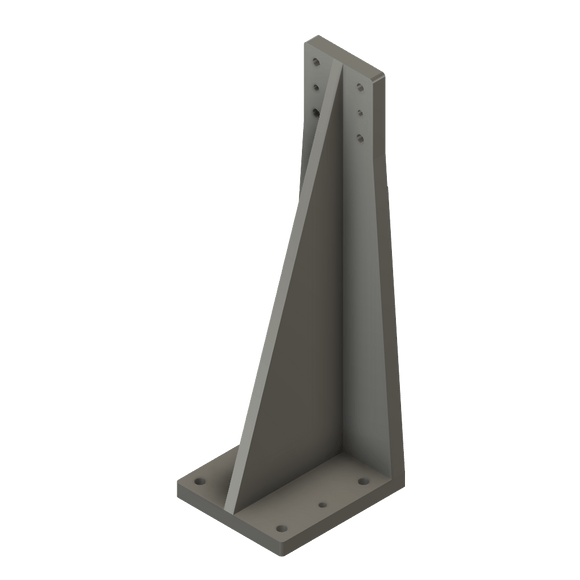

NAAMS Riser Angle Bracket ARA501M
SKU: FN-ARA501M
MPN: ARA501M
NAAMS Riser Angle Bracket ARA550M
SKU: FN-ARA550M
MPN: ARA550M
NAAMS Riser Angle Bracket ARA551M
SKU: FN-ARA551M
MPN: ARA551M

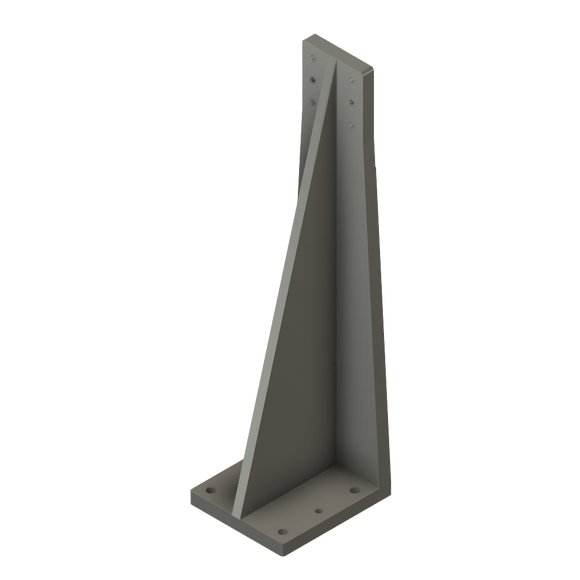

NAAMS Riser Angle Bracket ARA600M
SKU: FN-ARA600M
MPN: ARA600M
NAAMS Riser Angle Bracket ARA601M
SKU: FN-ARA601M
MPN: ARA601M

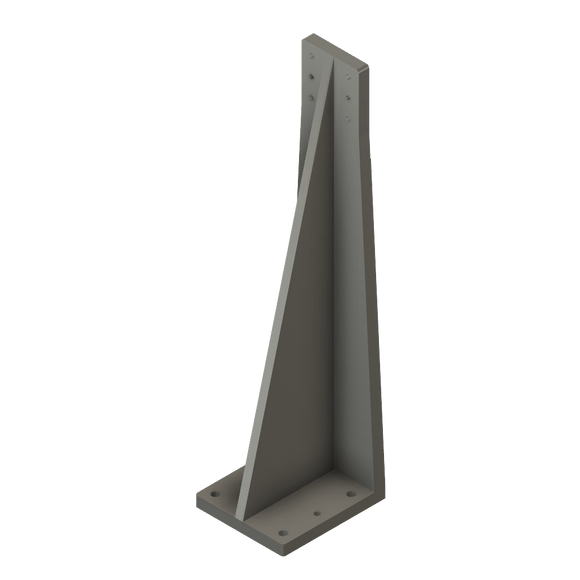

NAAMS Riser Angle Bracket ARA650M
SKU: FN-ARA650M
MPN: ARA650M

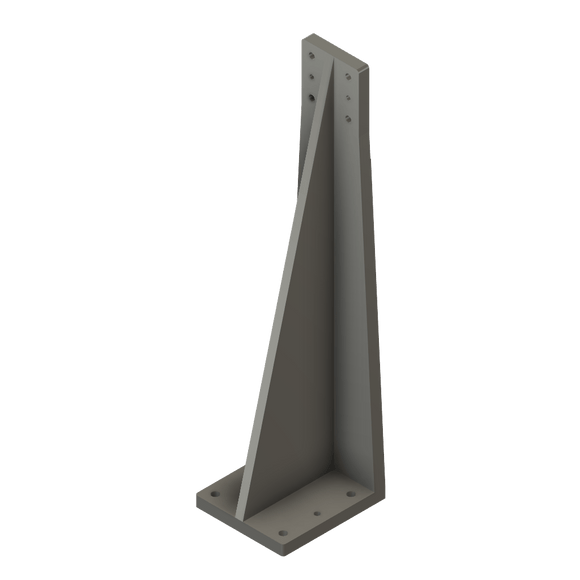

NAAMS Riser Angle Bracket ARA651M
SKU: FN-ARA651M
MPN: ARA651M
