NAAMS Rough Locators

NAAMS rough locators are used to help locate workpieces in the automation process. Locating refers to the desired location where you want the workpiece to be when it is getting worked on either by a person, team, or robot. The accuracy of the locating components directly affects the consistency and how the final product will come out. This is why we make all of our rough locators in-house because we understand that these components are essential to your setup. We are ISO 9001:2015 certified so from start to finish you can expect that our rough locators will do their job right. We offer all NAAMS catalog codes, both current and discontinued.

ARL-Series
NAAMS rough locators in the ARL series include both L-shaped and I-shaped locators offering hardening UHMW guide options. They feature a 35mm bend at 60° with a height from bend ranging from 65mm to 320mm. The width of these locators are 19mm, 32mm or 50.8mm for UHMW guides and all come with single slot design. All hardened rough locators end with an H suffix, which is hardened to 58-62 HRC, 1.0-1.5mm deep.

NAAMS rough locators L-shaped
L-Shaped Rough Locators
NAAMS rough locators L-shape have either an inside bend or outside bend. The base is 100mm before the vertical bend and height are dependent on the specific NAAMS code. All bends are 35mm long with a 30° bend. Look below for the desired height before the bend below with the appropriate code.

L-Shaped Rough Locators
NAAMS Code Height before bend Weight (kg) NAAMS Code Height before bend Weight (kg)
(A) mm (A) mm
ARL075L 75 0.45 ARL075R 65 0.42
ARL075LH 0.45 ARL075RH 0.42
ARL075LP 0.78 ARL075RP 0.74
ARL076L 0.17 ARL076R 0.16
ARL076LH 0.17 ARL076RH 0.16
ARL100L 100 0.51 ARL100R 90 0.48
ARL100LH 0.51 ARL100RH 0.48
ARL100LP 0.87 ARL100RP 0.83
ARL101L 0.19 ARL101R 0.18
ARL101LH 0.19 ARL101RH 0.18
ARL125L 125 0.57 ARL125R 115 0.54
ARL125LH 0.57 ARL125RH 0.54
ARL125LP 0.97 ARL125RP 0.93
ARL126L 0.21 ARL126R 0.2
ARL126LH 0.21 ARL126RH 0.2
ARL150L 150 0.62 ARL150R 140 0.6
ARL150LH 0.62 ARL150RH 0.6
ARL150LP 1.1 ARL150RP 1
ARL151L 0.23 ARL151R 0.22
ARL151LH 0.23 ARL151RH 0.22
ARL175L 175 0.68 ARL175R 165 0.66
ARL175LH 0.68 ARL175RH 0.66
ARL175LP 1.2 ARL175RP 1.1
ARL176L 0.26 ARL176R 0.24
ARL176LH 0.26 ARL176RH 0.24
ARL200L 200 0.74 ARL200R 190 0.72
ARL200LH 0.74 ARL200RH 0.72
ARL200LP 1.3 ARL200RP 1.2
ARL201L 0.28 ARL201R 0.27
ARL201LH 0.28 ARL201RH 0.27
ARL225L 225 0.8 ARL225R 215 0.78
ARL225LH 0.8 ARL225RH 0.78
ARL225LP 1.4 ARL225RP 1.3
ARL226L 0.3 ARL226R 0.29
ARL226LH 0.3 ARL226RH 0.29
ARL250L 250 0.86 ARL250R 245 0.84
ARL250LH 0.86 ARL250RH 0.84
ARL250LP 1.5 ARL250RP 1.4
ARL251L 0.32 ARL251RH 0.31
ARL251LH 0.32 ARL251R 0.31



NAAMS Rough Locators I-Shaped
I-Shaped Rough Locators

NAAMS rough locators I-shape is straight locators without the base bend. They come with widths of 9mm, 32mm, or 50.8mm with a UHMW urethane guide. The bend is also 35mm long with a 30° bend. Follow the chart below to find your desired NAAMS code for the appropriate height for your automation setup.

I-Shaped Rough Locators
NAAMS Code Height before bend Weight (kg) NAAMS Code Height before bend Weight (kg)
(A) mm (A) mm
ARL145 145 0.38 ARL245 245 0.61
ARL145H 0.38 ARL245H 0.61
ARL145P 0.67 ARL245P 1.1
ARL146 0.14 ARL246 0.23
ARL146H 0.14 ARL246H 0.23
ARL170H 170 0.44 ARL270 270 0.67
ARL170 0.44 ARL270H 0.67
ARL170P 0.76 ARL270P 1.2
ARL171 0.16 ARL271 0.25
ARL171H 0.16 ARL271H 0.25
ARL195 195 0.49 ARL295P 295 1.3
ARL195H 0.49 ARL298 0.73
ARL195P 0.88 ARL298H 0.73
ARL196 0.18 ARL299 0.27
ARL196H 0.18 ARL299H 0.27
ARL220 220 0.55 ARL320 320 0.79
ARL220H 0.55 ARL320H 0.79
ARL220P 0.97 ARL320P 1.3
ARL221 0.2 ARL321 0.29
ARL221H 0.2 ARL321H 0.29



U-Series
Rough locators in the U-series have similar offerings as well with some additional features. A guide rail is added to the U-AGL, U-AGLA, U-AGW, and U-AGWA series for added locating purposes. Also, in the U-series, the U-AGLA, U-AGWA, U-ARLA, and U-ARLC series comes with double slots instead of the usual single slot. This series also has options for added UHMW guides as well.

Browse the categories or see the full catalogs in PDF format below.
NAAMS Rough Locators
Rough Locators U-Series


NAAMS Rough Locator ARL075L L-Shape Outside Bend

NAAMS Rough Locator ARL075L L-Shape Outside Bend

SKU: FN-ARL075L
MPN: ARL075L

Sale price $8.31 List price $8.75
Save $0.44
NAAMS Rough Locator ARL075LH L-Shape Outside Bend Hardened

NAAMS Rough Locator ARL075LH L-Shape Outside Bend Hardened

SKU: FN-ARL075LH
MPN: ARL075LH

Regular price $22.44
NAAMS Rough Locator ARL075LP L-Shape Outside Bend with UHMW

NAAMS Rough Locator ARL075LP L-Shape Outside Bend with UHMW

SKU: FN-ARL075LP
MPN: ARL075LP

Regular price $26.93
NAAMS Rough Locator ARL075R L-Shape Inside Bend

NAAMS Rough Locator ARL075R L-Shape Inside Bend

SKU: FN-ARL075R
MPN: ARL075R

Sale price $8.31 List price $8.75
Save $0.44
NAAMS Rough Locator ARL075RH L-Shape Inside Bend Hardened

NAAMS Rough Locator ARL075RH L-Shape Inside Bend Hardened

SKU: FN-ARL075RH
MPN: ARL075RH

Regular price $22.44

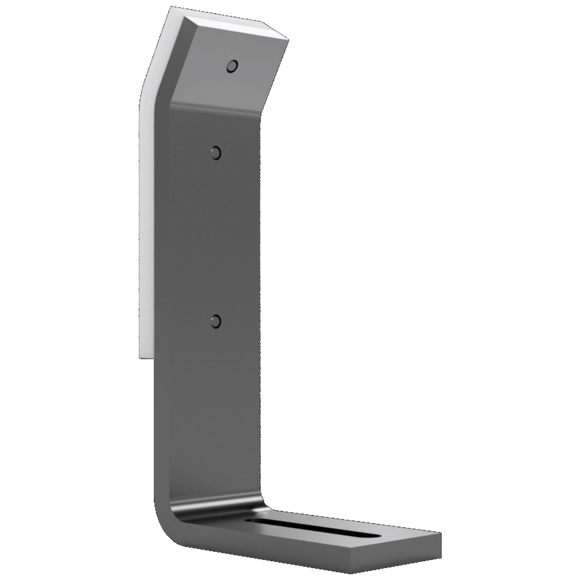

NAAMS Rough Locator ARL075RP L-Shape Inside Bend with UHMW

NAAMS Rough Locator ARL075RP L-Shape Inside Bend with UHMW

SKU: FN-ARL075RP
MPN: ARL075RP

Regular price $26.93
NAAMS Rough Locator ARL076L L-Shape Outside Bend

NAAMS Rough Locator ARL076L L-Shape Outside Bend

SKU: FN-ARL076L
MPN: ARL076L

Regular price $15.71
NAAMS Rough Locator ARL076LH L-Shape Outside Bend Hardened

NAAMS Rough Locator ARL076LH L-Shape Outside Bend Hardened

SKU: FN-ARL076LH
MPN: ARL076LH

Regular price $23.57

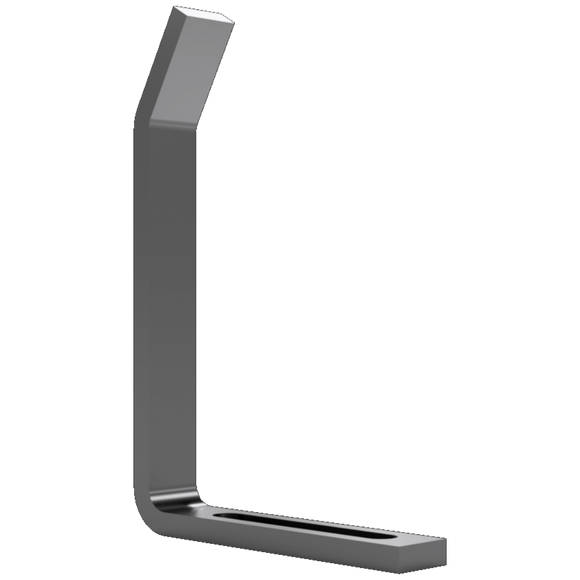

NAAMS Rough Locator ARL076R L-Shape Inside Bend

NAAMS Rough Locator ARL076R L-Shape Inside Bend

SKU: FN-ARL076R
MPN: ARL076R

Regular price $15.71
NAAMS Rough Locator ARL076RH L-Shape Inside Bend Hardened

NAAMS Rough Locator ARL076RH L-Shape Inside Bend Hardened

SKU: FN-ARL076RH
MPN: ARL076RH

Regular price $23.57
NAAMS Rough Locator ARL100L L-Shape Outside Bend

NAAMS Rough Locator ARL100L L-Shape Outside Bend

SKU: FN-ARL100L
MPN: ARL100L

Sale price $8.31 List price $8.75
Save $0.44

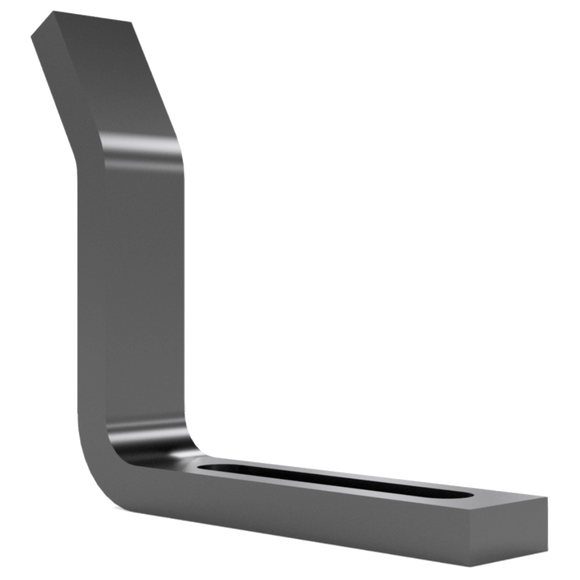

NAAMS Rough Locator ARL100LH L-Shape Outside Bend Hardened

NAAMS Rough Locator ARL100LH L-Shape Outside Bend Hardened

SKU: FN-ARL100LH
MPN: ARL100LH

Regular price $22.44

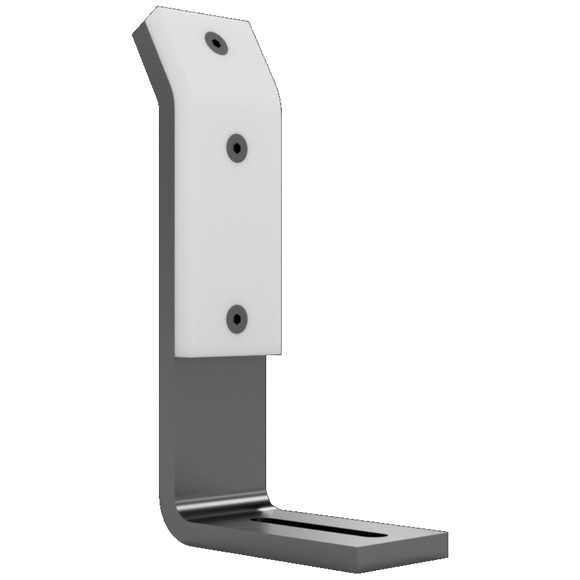

NAAMS Rough Locator ARL100LP L-Shape Outside Bend with UHMW

NAAMS Rough Locator ARL100LP L-Shape Outside Bend with UHMW

SKU: FN-ARL100LP
MPN: ARL100LP

Regular price $26.93

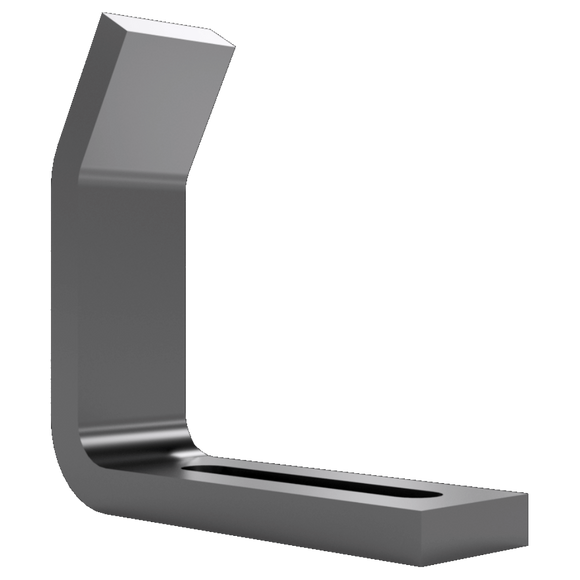

NAAMS Rough Locator ARL100R L-Shape Inside Bend

NAAMS Rough Locator ARL100R L-Shape Inside Bend

SKU: FN-ARL100R
MPN: ARL100R

Sale price $8.31 List price $8.75
Save $0.44
NAAMS Rough Locator ARL100RH L-Shape Inside Bend Hardened

NAAMS Rough Locator ARL100RH L-Shape Inside Bend Hardened

SKU: FN-ARL100RH
MPN: ARL100RH

Regular price $22.44
NAAMS Rough Locator ARL100RP L-Shape Inside Bend with UHMW

NAAMS Rough Locator ARL100RP L-Shape Inside Bend with UHMW

SKU: FN-ARL100RP
MPN: ARL100RP

Regular price $26.93
NAAMS Rough Locator ARL101L L-Shape Outside Bend

NAAMS Rough Locator ARL101L L-Shape Outside Bend

SKU: FN-ARL101L
MPN: ARL101L

Regular price $15.71

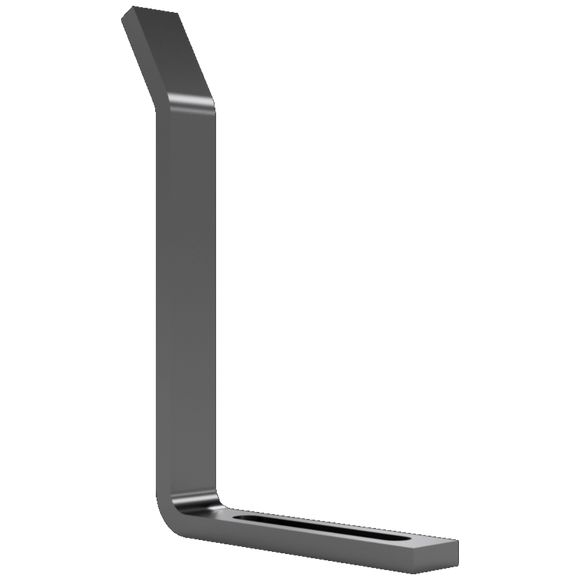

NAAMS Rough Locator ARL101LH L-Shape Outside Bend Hardened

NAAMS Rough Locator ARL101LH L-Shape Outside Bend Hardened

SKU: FN-ARL101LH
MPN: ARL101LH

Regular price $23.57
NAAMS Rough Locator ARL101R L-Shape Inside Bend

NAAMS Rough Locator ARL101R L-Shape Inside Bend

SKU: FN-ARL101R
MPN: ARL101R

Regular price $15.71
NAAMS Rough Locator ARL101RH L-Shape Inside Bend Hardened

NAAMS Rough Locator ARL101RH L-Shape Inside Bend Hardened

SKU: FN-ARL101RH
MPN: ARL101RH

Regular price $23.57
NAAMS Rough Locator ARL125L L-Shape Outside Bend

NAAMS Rough Locator ARL125L L-Shape Outside Bend

SKU: FN-ARL125L
MPN: ARL125L

Sale price $8.31 List price $8.75
Save $0.44
NAAMS Rough Locator ARL125LH L-Shape Outside Bend Hardened

NAAMS Rough Locator ARL125LH L-Shape Outside Bend Hardened

SKU: FN-ARL125LH
MPN: ARL125LH

Regular price $22.44
NAAMS Rough Locator ARL125LP L-Shape Outside Bend with UHMW

NAAMS Rough Locator ARL125LP L-Shape Outside Bend with UHMW

SKU: FN-ARL125LP
MPN: ARL125LP

Regular price $26.93
NAAMS Rough Locator ARL125R L-Shape Inside Bend

NAAMS Rough Locator ARL125R L-Shape Inside Bend

SKU: FN-ARL125R
MPN: ARL125R

Sale price $8.31 List price $8.75
Save $0.44
