NAAMS Locating Pins

We offer all NAAMS locating pins, respot pins, and pin retainers. Whether current or even discontinued, our capabilities allow us to manufacture to any specifications in NAAMS standards or custom orders. There are a variety of cone and round construction configurations with different slot sizes. Read on to learn more about the different types of locating pins and how they are offered through the NAAMS catalog.

Types of Locating Pins

Small Head Pins
Small head locating pins are typically smaller than the pin's shoulder, which is 22 or 25mm in diameter. The NAAMS Standards pin diameter sizes for small heads are 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, and 19mm.

Large Head Pins
Large head locating pins have heads wider than the insert bases which is a diameter of 15.98mm. The standard sizes for large heads are offered in 25mm, 30mm, 35mm, and 40mm.

Retractable Pins
All retractable pins come with a slotted hole meant for an 8mm socket head shoulder screw assembly. The standard offerings are the same as the small heads and large heads but retractable locating pins do not come with shoulders because of the added slot and hole configuration.

CAD models from carrlane.com
Bullet Nose Pins, Diamond Pins, and Cone Pins
Bullet nose and cone pins come as 4-way and 2-way pins like diamond pins. They work as 4-way pins by restricting the motion from 2 different axis, stopping the located part in 4 separate directions. This helps to keep your workpieces in place during the automation or manufacturing process. As 2-way pins, they come with two slits and the diamond pins come with a diamond shaped head. This limits the free motion to only 1 axis or 2 degrees of movement. Using a configuration of both 2 and 4-way pins help to hold workpieces in the desired place.

Round and Sphere Pins
Round and sphere pins are the most common and come as a 4-way. Though they are most common, they can present problems suck as binding the workpiece. It is recommended to use them in conjunction with 2-way pins.

Hardening Process

Induction System
We have our very own induction machine to do in-house heat treat hardening. No more waiting for long lead times due to outsourced hardening jobs or the old-fashioned and less consistent flame hardening. The Induction Systems Heat Treat Power Flex instantly heats locating pins to a bright red glow. As the steel hardens, it is quickly cooled down with warm water to keep the process and finished product consistent every time. All of our pins are hardened to 58-62 hRC unless otherwise specified by the customer. Click on the video above to see it in action.



TiN Coating - *ALL TiN COATED PINS ARE MADE FROM A2 STEEL (M2 QUOTE ONLY)*
Titanium nitride, or tinite, is a ceramic material that is very strong with a golden appearance. When applied as a coating, it extends the lifespan of a product and gives better edge retention. Resistance to corrosion and reduced friction add to the value of TiN coated locating pins and make it worth the extra cost in the long run. All of our NAAMS standards pins ending with a T come with a TiN coating on the tip portion but can be added on to any custom order. The coating is set to roughly 3 microns thick.
Information provided by https://en.wikipedia.org/wiki/titanium_nitride

All of our pins are American made, manufactured with ANSI 4140 steel (A2 for TiN Coated and M2 quote only) and hardened in-house to 58-62 hRC. In our many years of doing TiN coating, we've found A2 and M2 steel to be able to hold hardening the best throughout all processes. While 4140, 6150, and 8620 steel dropped to 44-46 hRC after the coating, A2 and M2 were found to be able to achieve 58-60 hRC. We are ISO 9001:2015 certification so you can be confident that you'll receive the highest quality NAAMS locating pins and pin retainers around.

Call us at 586-463-3200 or email Sales@freertool.com for custom locating pins and pin retainers.

Feel free to browse our NAAMS locating pins, respot pins, and pin retainers below or look for the proper NAAMS Standards codes here:

PIN PACKAGES INDEX
LOCATING PINS AND RETAINERS COMPONENTS INDEX

CAD Models
If you wish to receive specific locating pin models, you may send your requests to Sales@freertool.com.

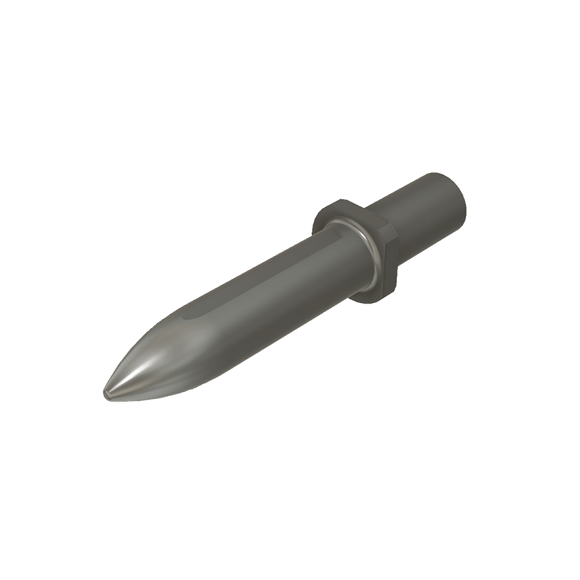

NAAMS Locating Pin APE061M

NAAMS Locating Pin APE061M

SKU: FN-APE061M
MPN: APE061M

Regular price $37.35

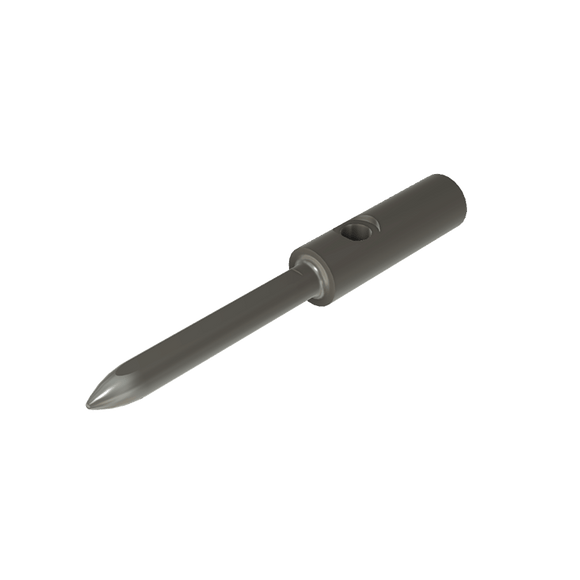

NAAMS Locating Pin APE061MH

NAAMS Locating Pin APE061MH

SKU: FN-APE061MH
MPN: APE061MH

EMAIL SALES FOR PRICING

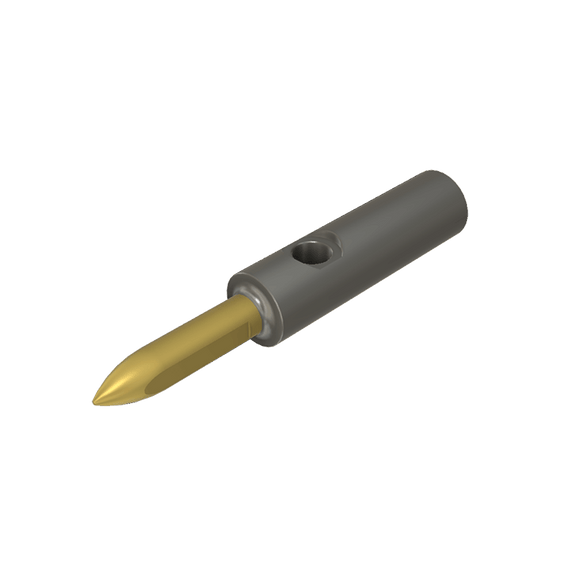

NAAMS Locating Pin APE061MT

NAAMS Locating Pin APE061MT

SKU: FN-APE061MT
MPN: APE061MT

Regular price $105.02

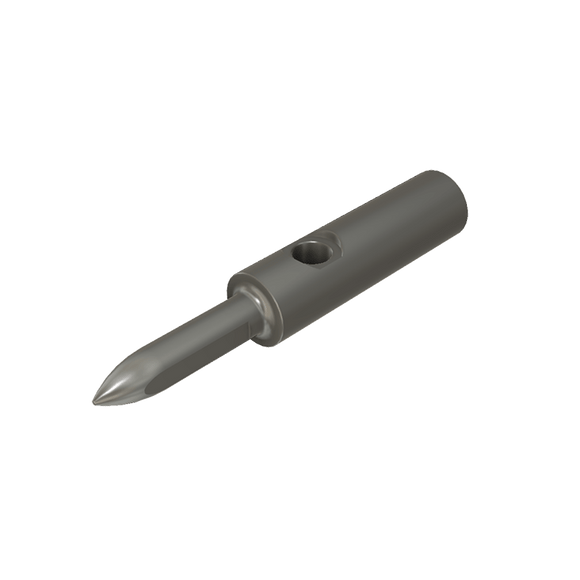

NAAMS Locating Pin APE061R

NAAMS Locating Pin APE061R

SKU: FN-APE061R
MPN: APE061R

Regular price $37.35

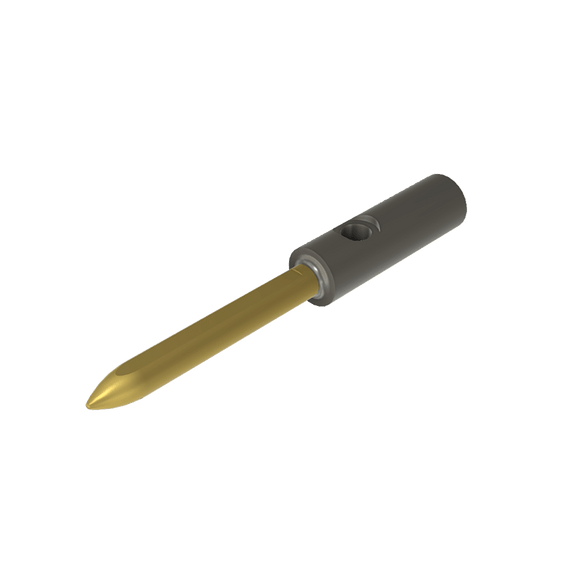

NAAMS Locating Pin APE061RT

NAAMS Locating Pin APE061RT

SKU: FN-APE061RT
MPN: APE061RT

Regular price $94.53

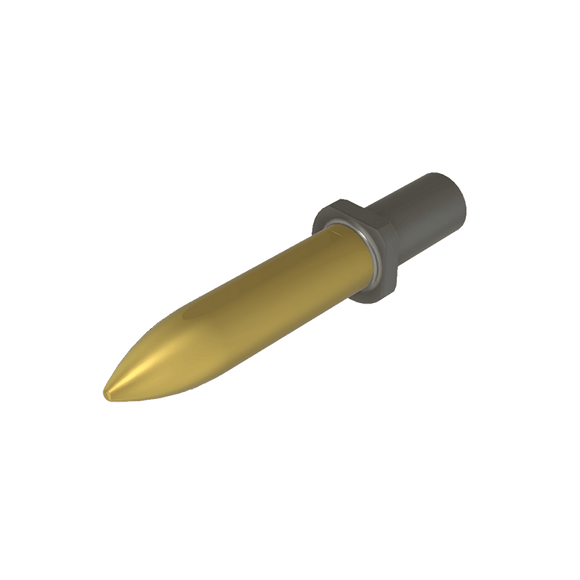

NAAMS Locating Pin APE061S

NAAMS Locating Pin APE061S

SKU: FN-APE061S
MPN: APE061S

Regular price $37.35
NAAMS Locating Pin APE061ST

NAAMS Locating Pin APE061ST

SKU: FN-APE061ST
MPN: APE061ST

Regular price $92.19
NAAMS Locating Pin APE062M

NAAMS Locating Pin APE062M

SKU: FN-APE062M
MPN: APE062M

Regular price $37.35
NAAMS Locating Pin APE062MH

NAAMS Locating Pin APE062MH

SKU: FN-APE062MH
MPN: APE062MH

EMAIL SALES FOR PRICING
NAAMS Locating Pin APE062MT

NAAMS Locating Pin APE062MT

SKU: FN-APE062MT
MPN: APE062MT

Regular price $105.02
NAAMS Locating Pin APE062R

NAAMS Locating Pin APE062R

SKU: FN-APE062R
MPN: APE062R

Regular price $37.35
NAAMS Locating Pin APE062RT

NAAMS Locating Pin APE062RT

SKU: FN-APE062RT
MPN: APE062RT

Regular price $94.53
NAAMS Locating Pin APE062S

NAAMS Locating Pin APE062S

SKU: FN-APE062S
MPN: APE062S

Regular price $37.35
NAAMS Locating Pin APE062ST

NAAMS Locating Pin APE062ST

SKU: FN-APE062ST
MPN: APE062ST

Regular price $92.19
NAAMS Locating Pin APE063M

NAAMS Locating Pin APE063M

SKU: FN-APE063M
MPN: APE063M

Regular price $37.35
NAAMS Locating Pin APE063MH

NAAMS Locating Pin APE063MH

SKU: FN-APE063MH
MPN: APE063MH

EMAIL SALES FOR PRICING
NAAMS Locating Pin APE063MT

NAAMS Locating Pin APE063MT

SKU: FN-APE063MT
MPN: APE063MT

Regular price $105.02
NAAMS Locating Pin APE063R

NAAMS Locating Pin APE063R

SKU: FN-APE063R
MPN: APE063R

Regular price $37.35
NAAMS Locating Pin APE063RT

NAAMS Locating Pin APE063RT

SKU: FN-APE063RT
MPN: APE063RT

Regular price $94.53
NAAMS Locating Pin APE063S

NAAMS Locating Pin APE063S

SKU: FN-APE063S
MPN: APE063S

Regular price $37.35
NAAMS Locating Pin APE063ST

NAAMS Locating Pin APE063ST

SKU: FN-APE063ST
MPN: APE063ST

Regular price $92.19
NAAMS Locating Pin APE064M

NAAMS Locating Pin APE064M

SKU: FN-APE064M
MPN: APE064M

Regular price $37.35
NAAMS Locating Pin APE064MH

NAAMS Locating Pin APE064MH

SKU: FN-APE064MH
MPN: APE064MH

EMAIL SALES FOR PRICING
NAAMS Locating Pin APE064MT

NAAMS Locating Pin APE064MT

SKU: FN-APE064MT
MPN: APE064MT

Regular price $105.02
