Brand: Carver Clamps

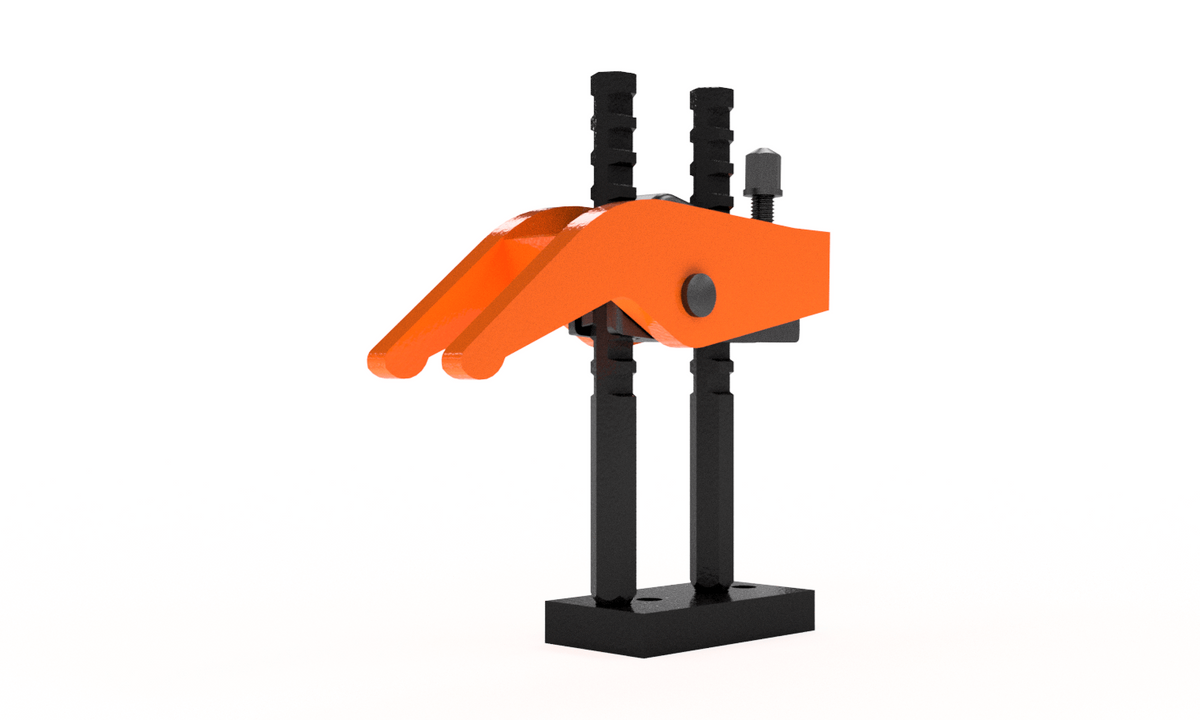

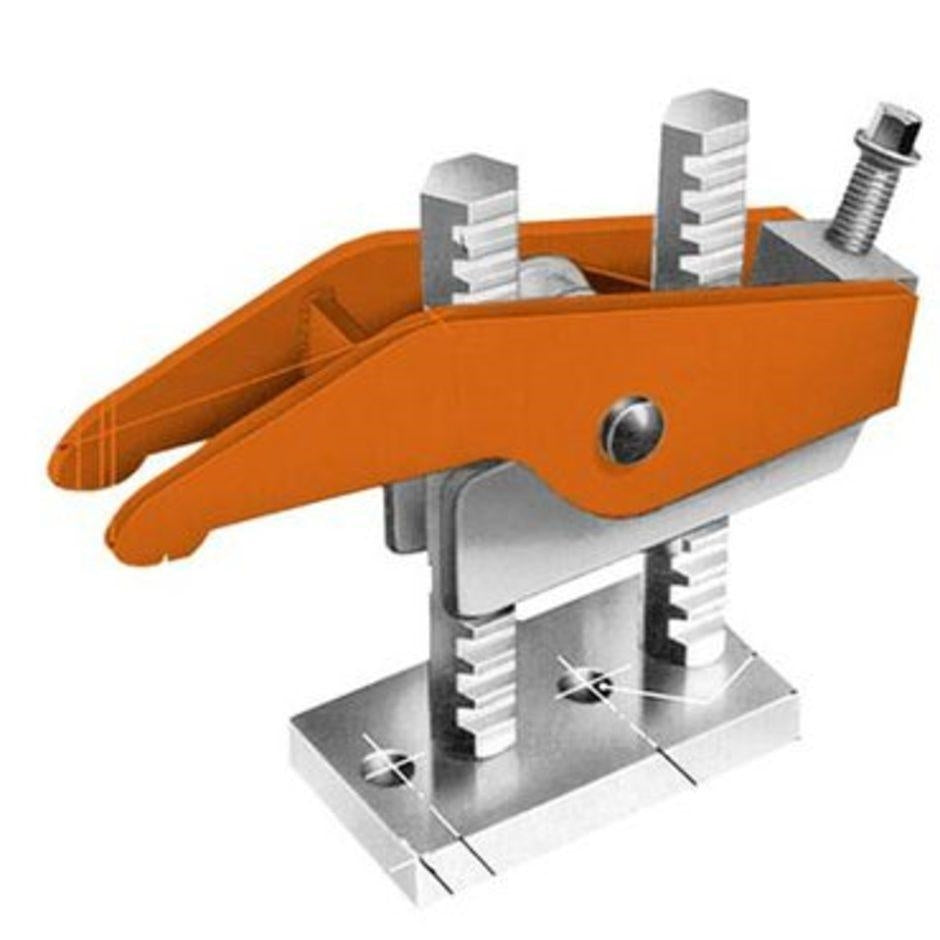

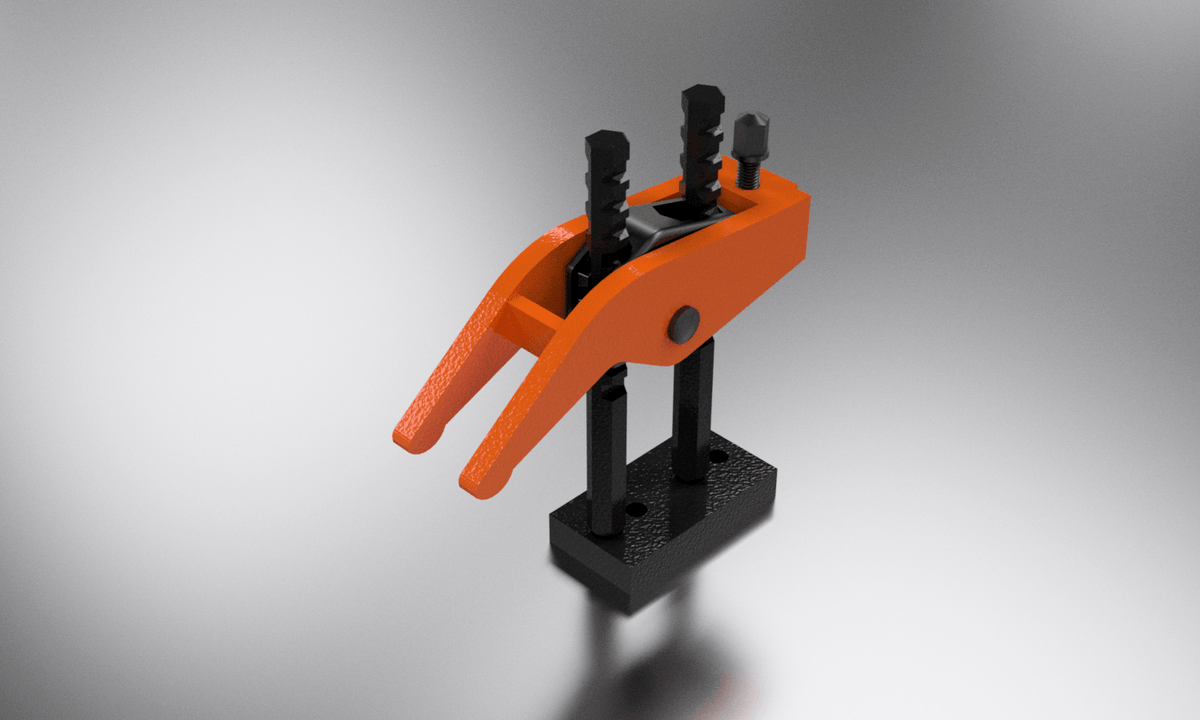

Carver Clamps T600-4 Standard Duty 100mm Long Reach T Slot Clamp
SKU: CC-T600-100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
| Carver Assembly Information | ||
|---|---|---|
| T600-4 is made up of the parts listed below | ||
| Part Number | Qty in Assembly | In-Stock |
| T400-4-1 | 1 | 8 |
| T600-2 | 1 | 21 |
Short Description
(1) T600-2 (1) T400-4-1
Carver Part Number: C301214.
Reference Destaco Model Number: T600-4.
Carver T-Slot Clamps Catalog
Carver Spare Parts Catalog
*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Carver Clamps T600-4 is their standard-duty, long reach t-slot clamp with roughly 4 inches of clamping height. This complete assembly consists of (1) T600-2 head unit and (1) T400-4-1 two-column base unit.
- 3600 lb. Capacity
- Multiple jaws can be mounted in different positions on the base
- 4-in maximum base height
| Maximum Holding Capacity (lb) | 3,597 |
| Throat Depth (in) | 2.87 |
| Working Height (in) | 3.94 |
| Product Type | T-Slot Style |
Carver Part Number: C301214.
Reference Destaco Model Number: T600-4.
| Model No. | Part No. | Alternative Model No. | Clamping Height | Reach mm (Inch) |
Weight kg |
A mm |
A1 mm |
B mm |
B1 mm |
B2 mm |
B3 mm |
B4 mm |
S | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm (Inch) | mm (Inch) | |||||||||||||
| T600-4 | C301214 | T600-100 | 12 (1/2) | 100 (4) | 57 (2.1/4) OR with base reversed 73 (2.7/8) |
2.7 | 51 | 13 A/F Hex | 16 | 200 | 54 | 96.25 | 31.75 | For M12 bolt |
