Brand: FREER NAAMS
NAAMS Hexagon Nut F472030 M20 x 2.5
SKU: FN-F472030
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Discover the amazing value of the NAAMS Hexagon Nut F472030 M20 x 2.5! Perfect for fastening components, this hexagon nut features coarse threads made from top-quality material: ASTM A563M Class 12. Feel the passion and inspiration with this must-have product!
Full Description

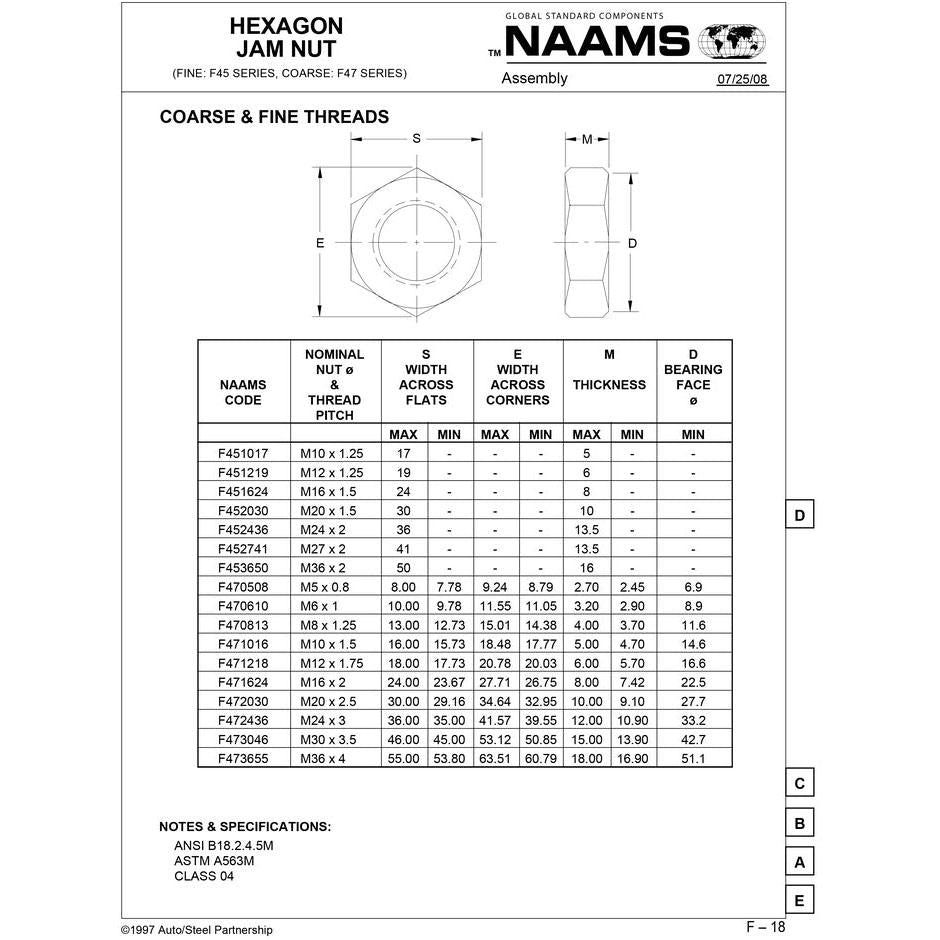

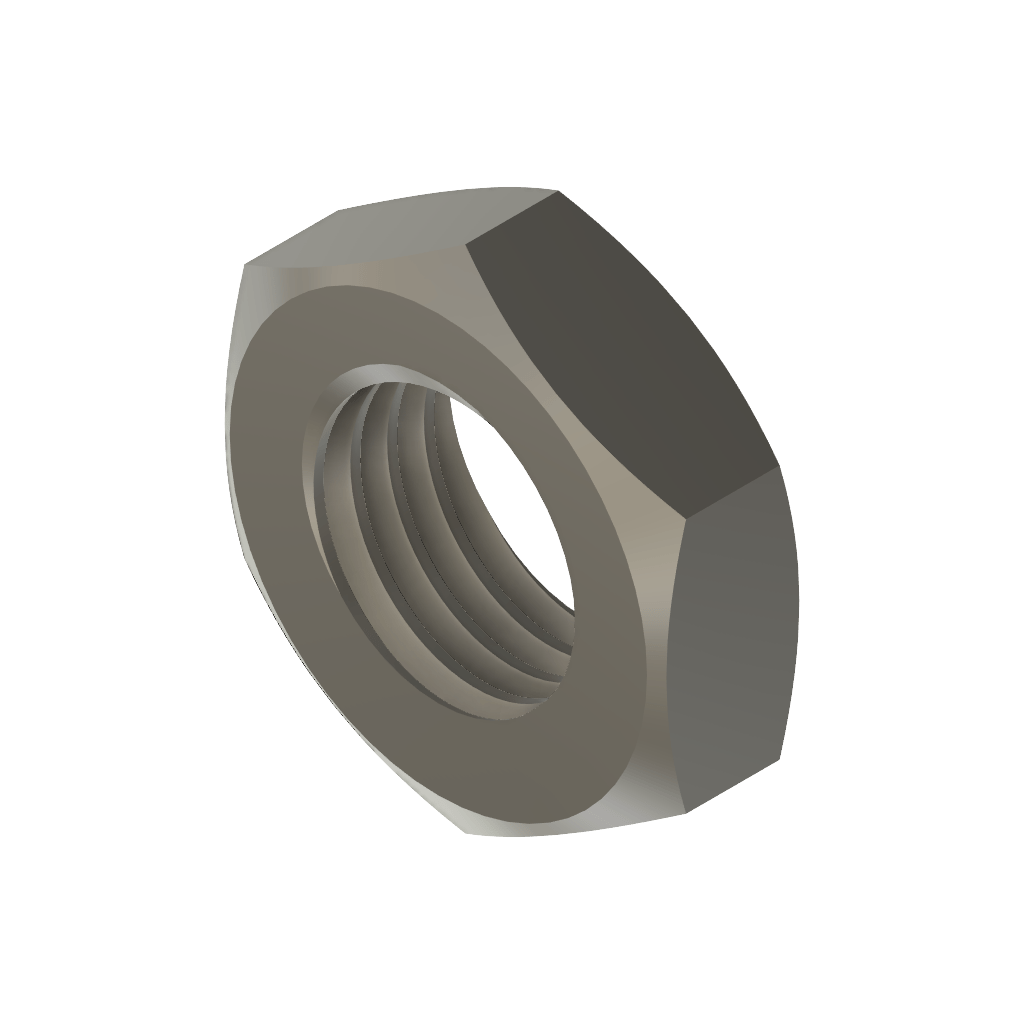

FREER NAAMS HEXAGON NUT F472030 M20 x 2.5
ASTM A563M Class 12
ANSI B18.2.4.5M
Coarse Threads
| Nom. nut & thread pitch |
S width across flats | E width across corners | M thickness ANSI B18.2.4.2M | Dw bearing face | |||
| Max | Min | Max | Min | Max | Min | Min | |
| M20 x 2.5 | 30 | 29.16 | 34.64 | 32.95 | 10 | 9.1 | 27.7 |
