Brand: FREER NAAMS
NAAMS Hexagon Nut F422030 M20 x 2.5
SKU: FN-F422030
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Enhance the strength of your fasteners with the FREER NAAMS Hexagon Nut F422030 M20 x 2.5. This high-quality hexagon nut boasts coarse threads and is made of ASTM A563M Class 12 material. Elevate your projects with this reliable component.
Full Description

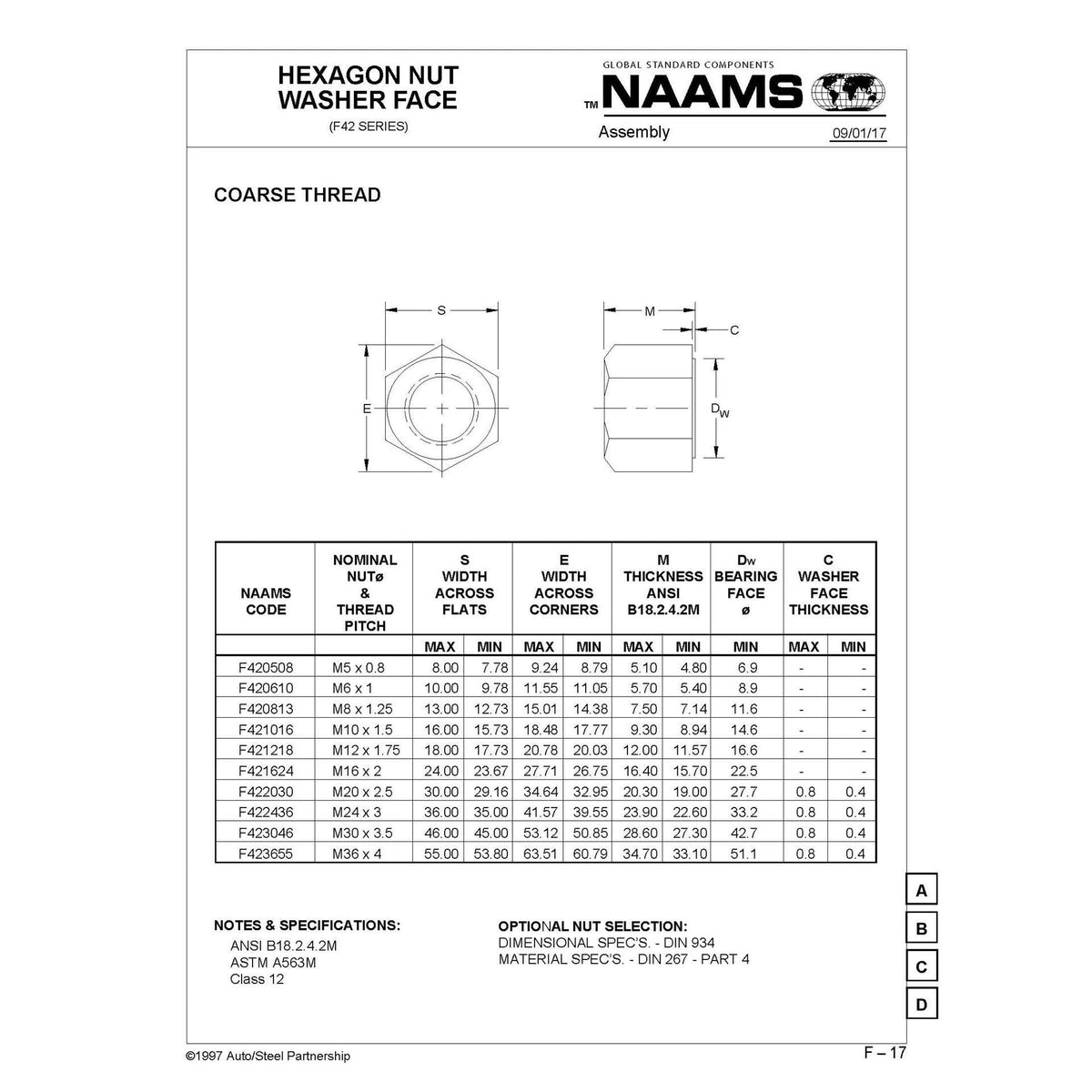

FREER NAAMS HEXAGON NUT F422030 M20 x 2.5
ASTM A563M Class 12
ANSI B18.2.4.2M
Coarse Threads
| Nom. nut & thread pitch |
S width across flats | E width across corners | M thickness ANSI B18.2.4.2M | Dw bearing face | |||
| Max | Min | Max | Min | Max | Min | Min | |
| M20 x 2.5 | 30 | 29.16 | 34.64 | 32.95 | 20.3 | 19 | 27.7 |
OPTIONAL NUT SELECTION:
DIMENSIONAL SPEC€™S. - DIN 934
MATERIAL SPEC€™S. - DIN 267 - PART 4
