Brand: FREER NAAMS

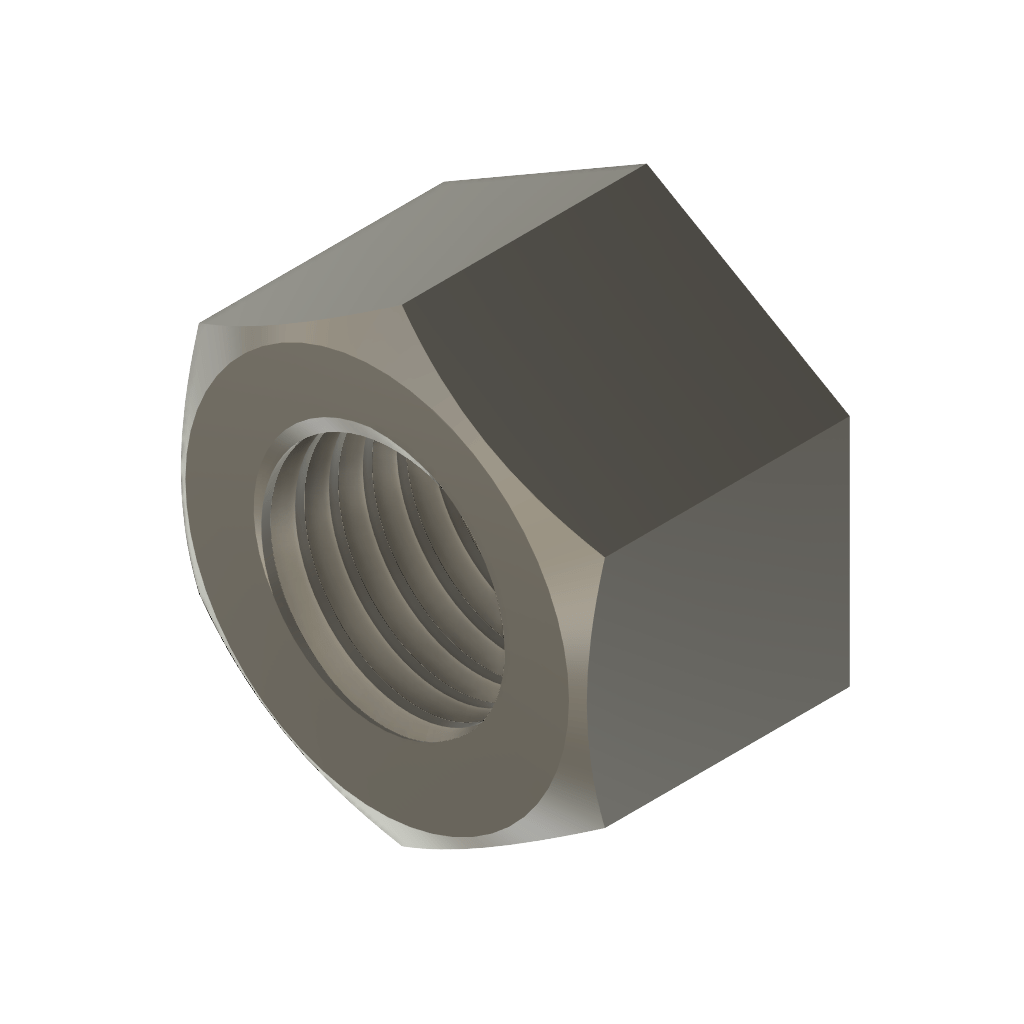

NAAMS Hexagon Nut F421218 M12 x 1.75
SKU: FN-F421218
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Upgrade your fastening game with the NAAMS Hexagon Nut F421218 M12 x 1.75. This high-quality component is designed to securely hold materials together with its coarse threads and ASTM A563M Class 12 material. Don't miss out on this essential hexagon nut for your projects.
Full Description

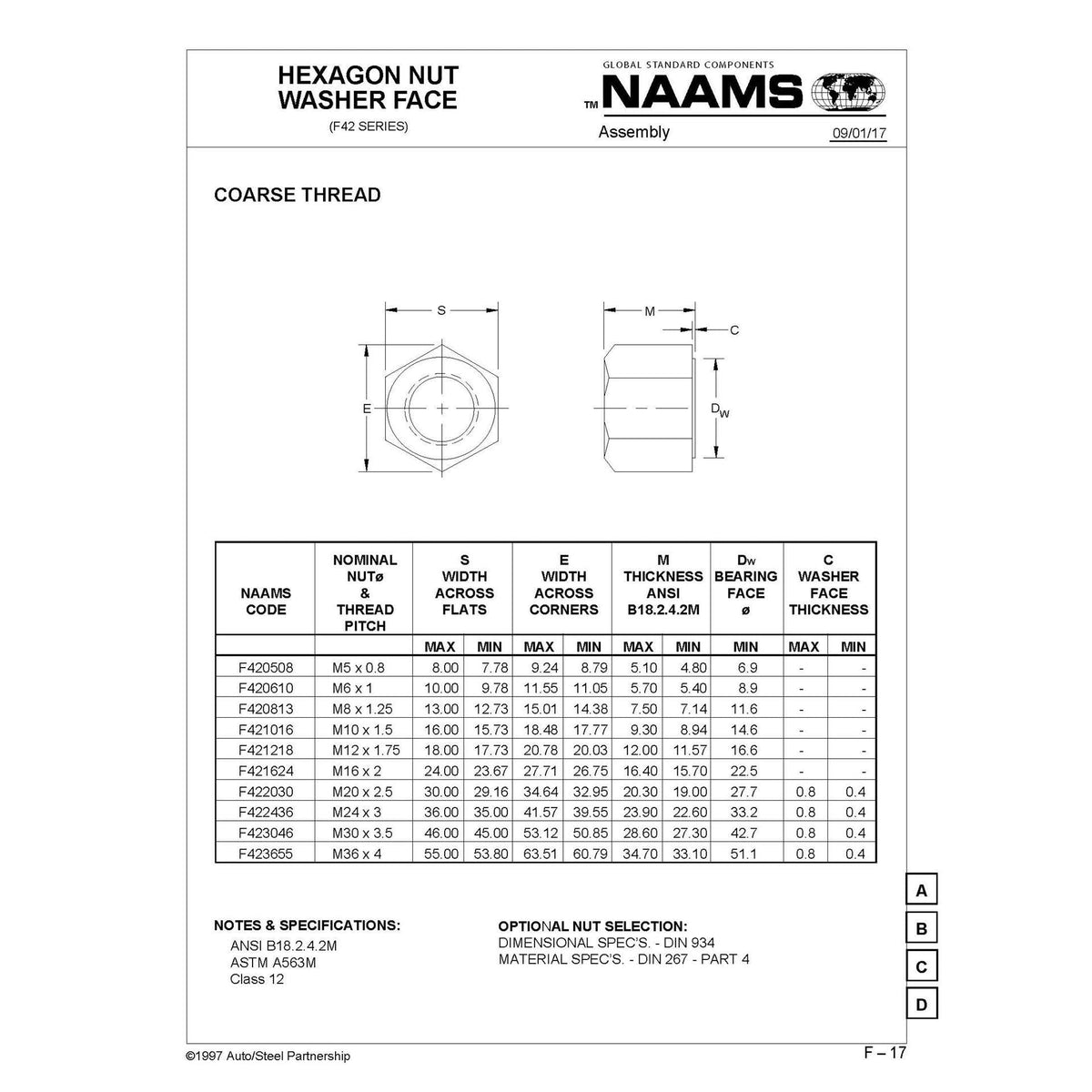

FREER NAAMS HEXAGON NUT F421218 M12 x 1.75
ASTM A563M Class 12
ANSI B18.2.4.2M
Coarse Threads
| Nom. nut & thread pitch |
S width across flats | E width across corners | M thickness ANSI B18.2.4.2M | Dw bearing face | |||
| Max | Min | Max | Min | Max | Min | Min | |
| M12 x 1.75 | 18 | 17.73 | 20.78 | 20.03 | 12 | 11.57 | 16.6 |
OPTIONAL NUT SELECTION:
DIMENSIONAL SPEC€™S. - DIN 934
MATERIAL SPEC€™S. - DIN 267 - PART 4
