Brand: FREER NAAMS
NAAMS Wedge Bracket AWB909
SKU: FN-AWB909
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Looking for CAD models?
Request NAAMS CAD Models
Request NAAMS CAD Models
Short Description

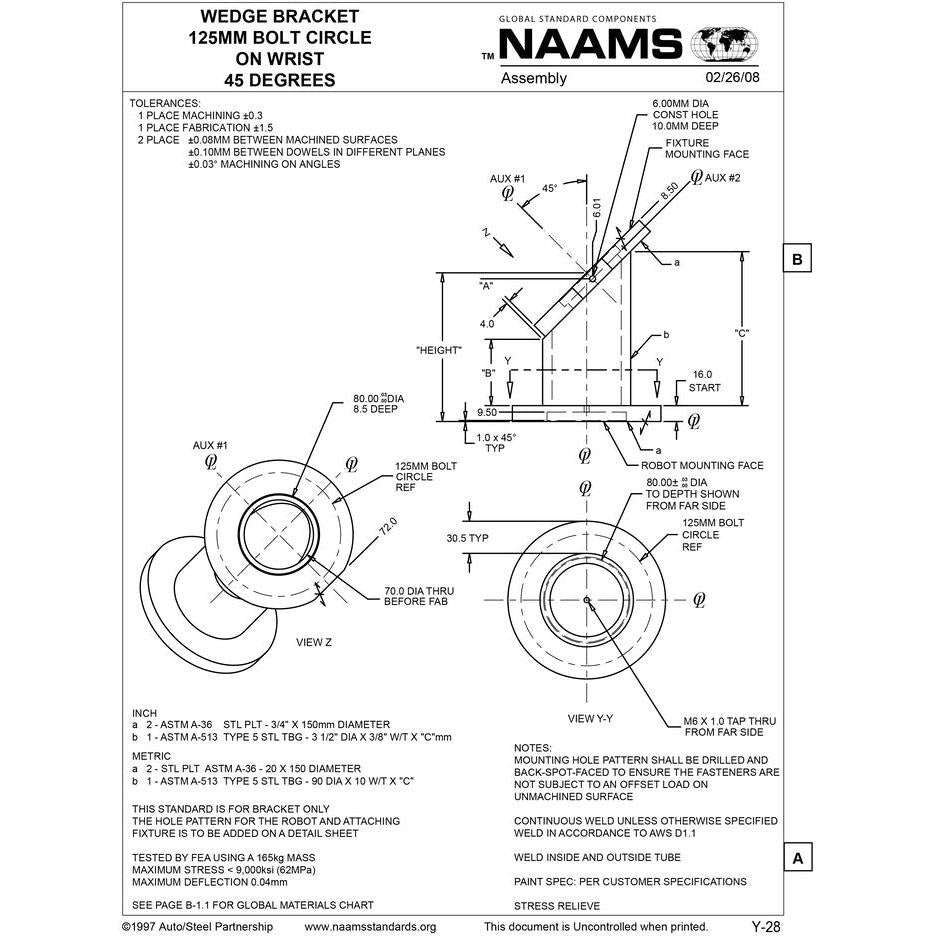

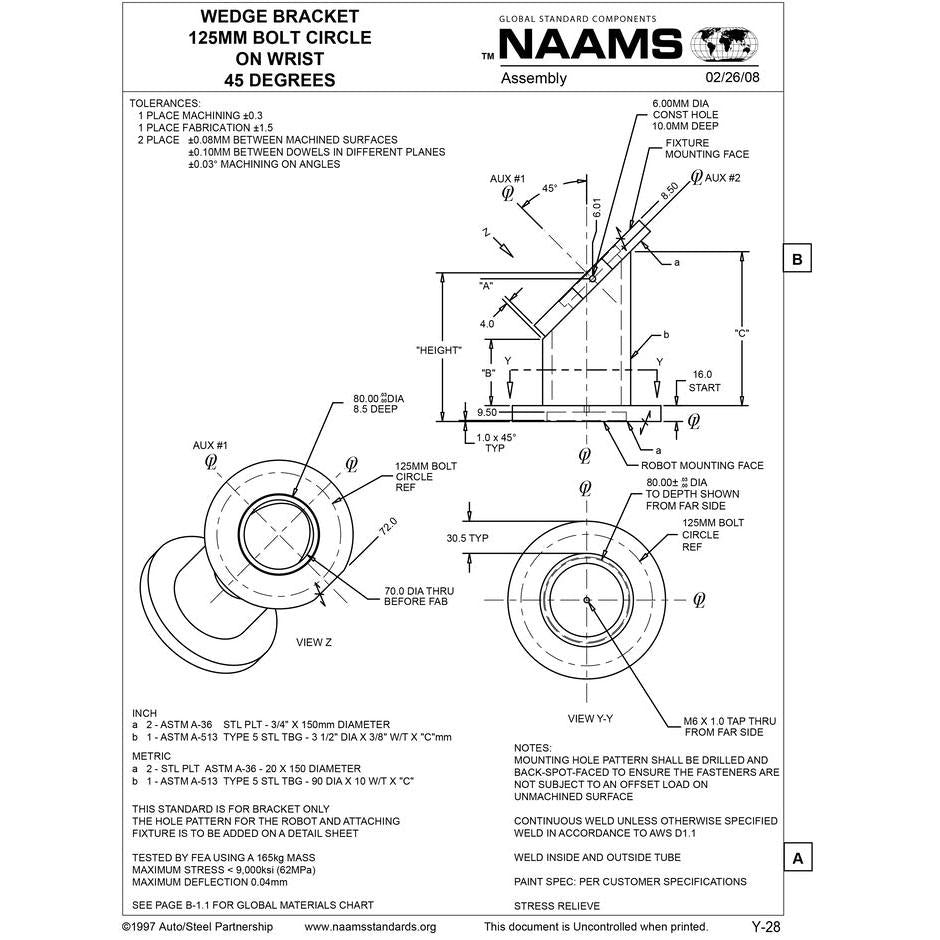

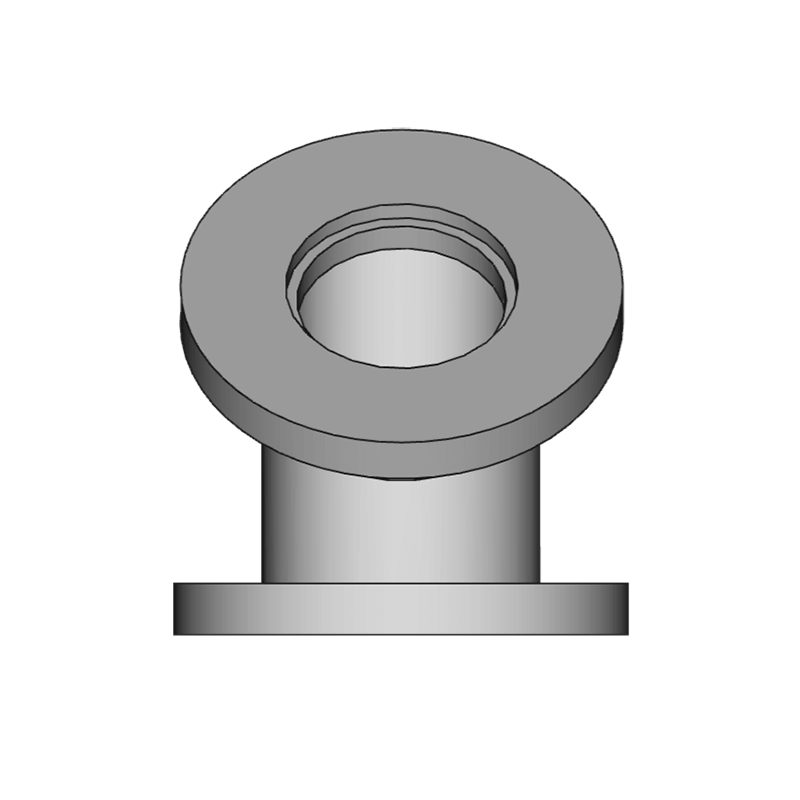

Freer NAAMS AWB909 wedge bracket comes with a 125mm bolt circle on a wrist of 45 degrees. It is manufactured from ASTM A-36 and ASTM A-513 with a height of 350mm.Full Description
FREER NAAMS WEDGE BRACKET AWB909
125mm Bolt Circle on Wrist 45 Degrees
Materials: ASTM A-36 and ASTM A-513

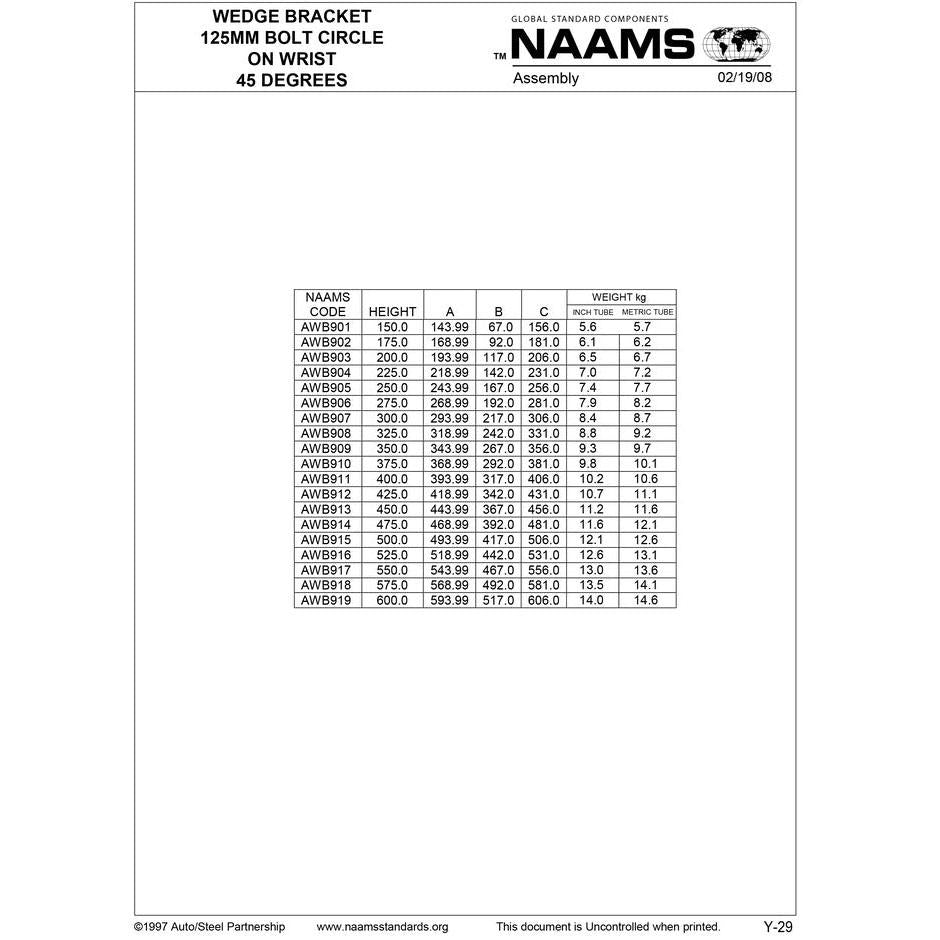

| Height | A | B | C | Inch Tube Wt. kg | Metric Tube Wt. kg |
| 350mm | 343.99mm | 267mm | 356mm | 9.3 | 9.7 |
