Brand: FREER NAAMS
NAAMS Wedge Bracket AWB703
SKU: FN-AWB703
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Looking for CAD models?
Request NAAMS CAD Models
Request NAAMS CAD Models
Short Description

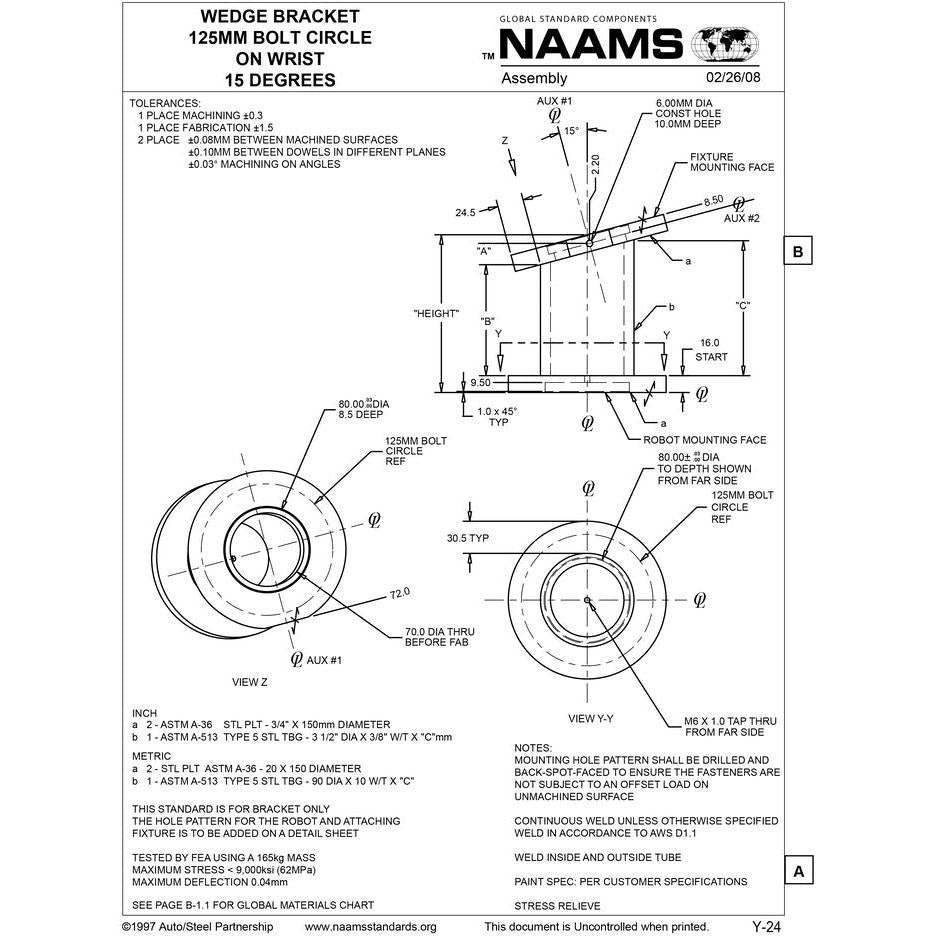

Freer NAAMS AWB703 wedge bracket comes with a 125mm bolt circle on a wrist of 15 degrees. It is manufactured from ASTM A-36 and ASTM A-513 with a height of 200mm.Full Description

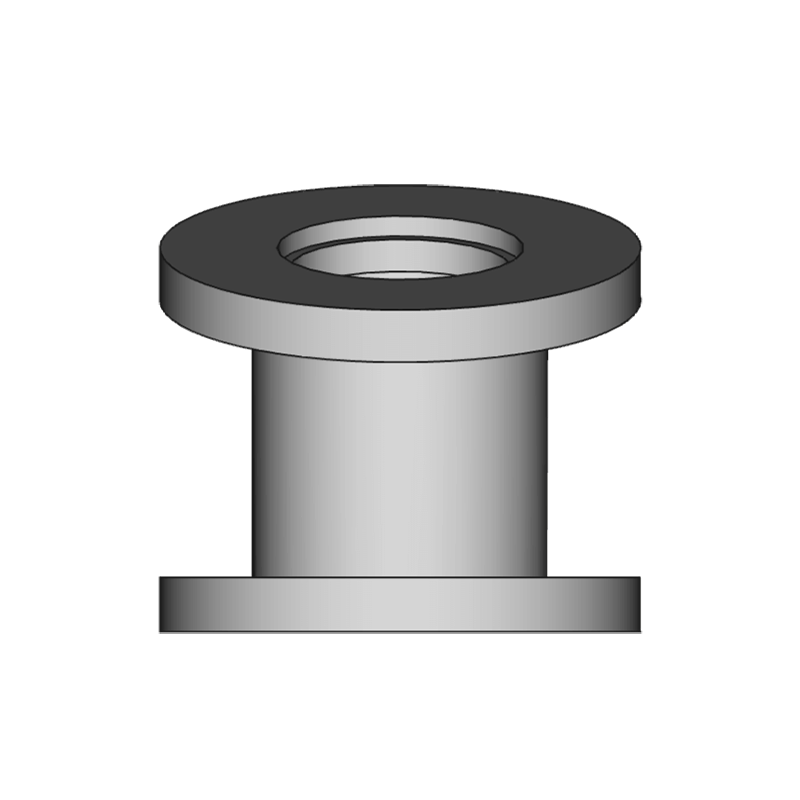

FREER NAAMS WEDGE BRACKET AWB703
125mm Bolt Circle on Wrist 15 Degrees
Materials: ASTM A-36 and ASTM A-513

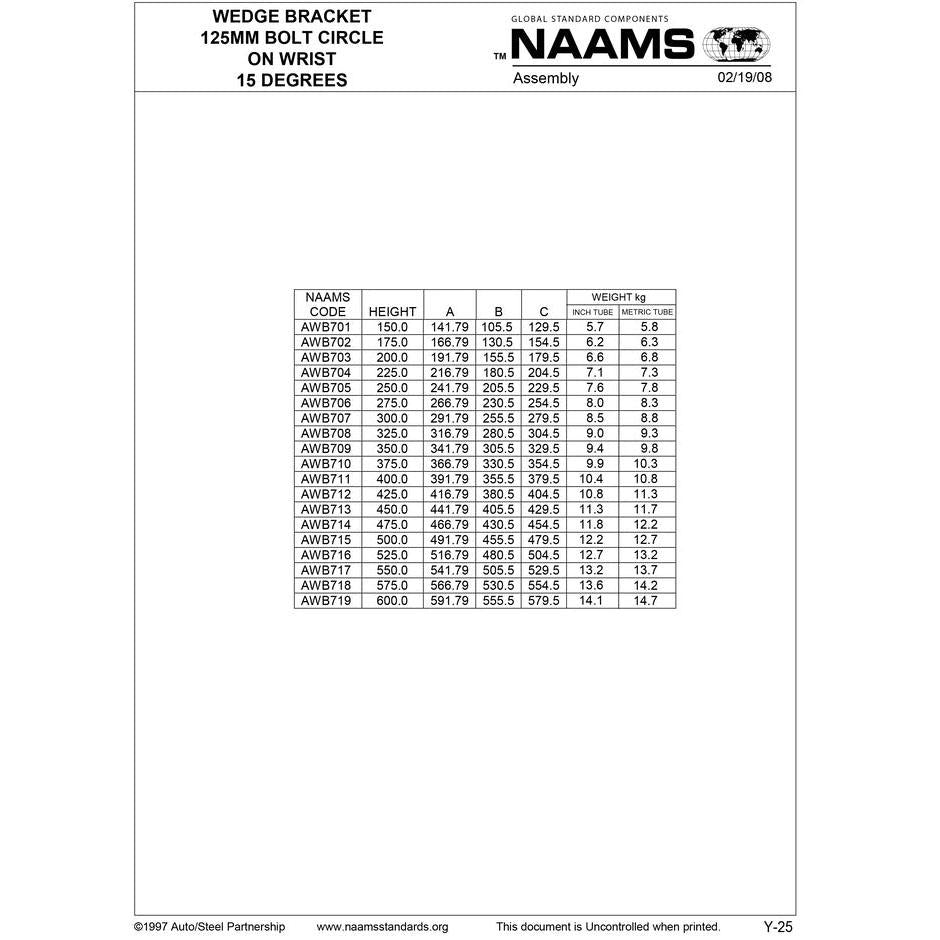

| Height | A | B | C | Inch Tube Wt. kg | Metric Tube Wt. kg |
| 200mm | 191.79mm | 155.5mm | 179.5mm | 6.6 | 6.8 |
