Brand: FREER NAAMS

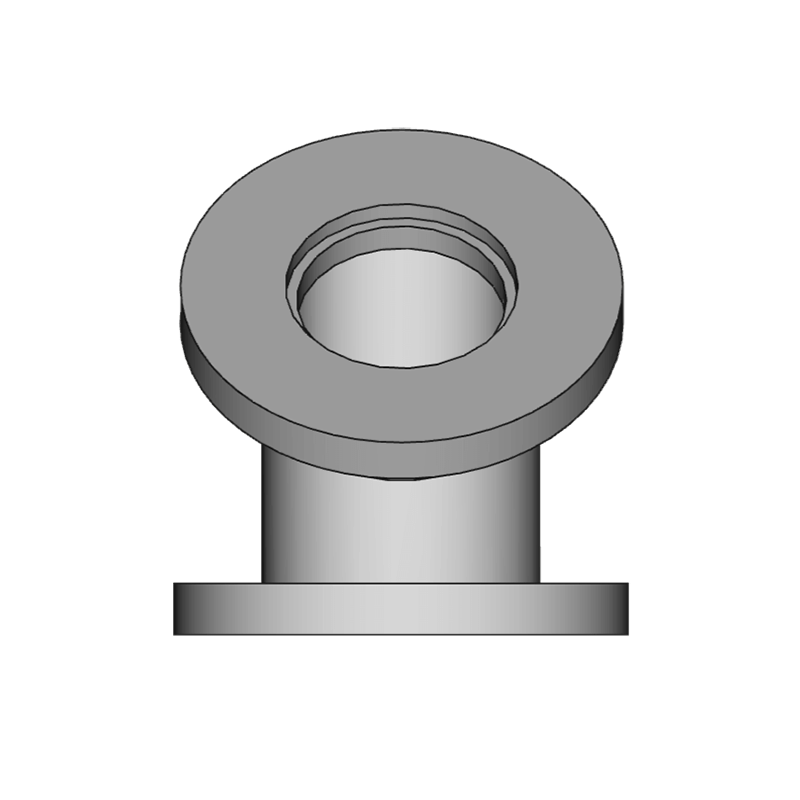

NAAMS Wedge Bracket AWB304
SKU: FN-AWB304
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Looking for CAD models?
Request NAAMS CAD Models
Request NAAMS CAD Models
Short Description
Freer NAAMS AWB304 wedge bracket comes with a 160mm bolt circle on a wrist of 45 degrees. It is manufactured from ASTM A-36 and ASTM A-513 with a height of 225mm.Full Description

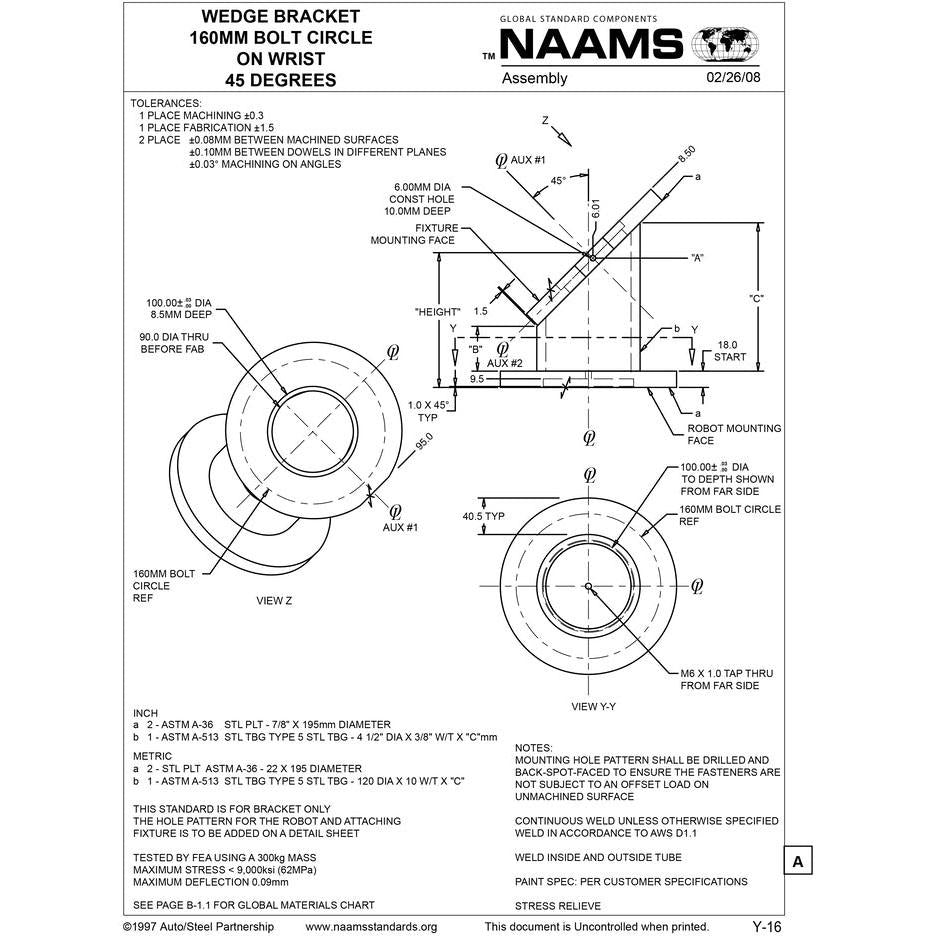

FREER NAAMS WEDGE BRACKET AWB304
160mm Bolt Circle on Wrist 45 Degrees
Materials: ASTM A-36 and ASTM A-513
Height | A | B | C | Inch Tube Wt. kg | Metric Tube Wt. kg |
225mm | 218.99mm | 124.5mm | 239mm | 11.1 | 11.6 |
