Brand: FREER NAAMS

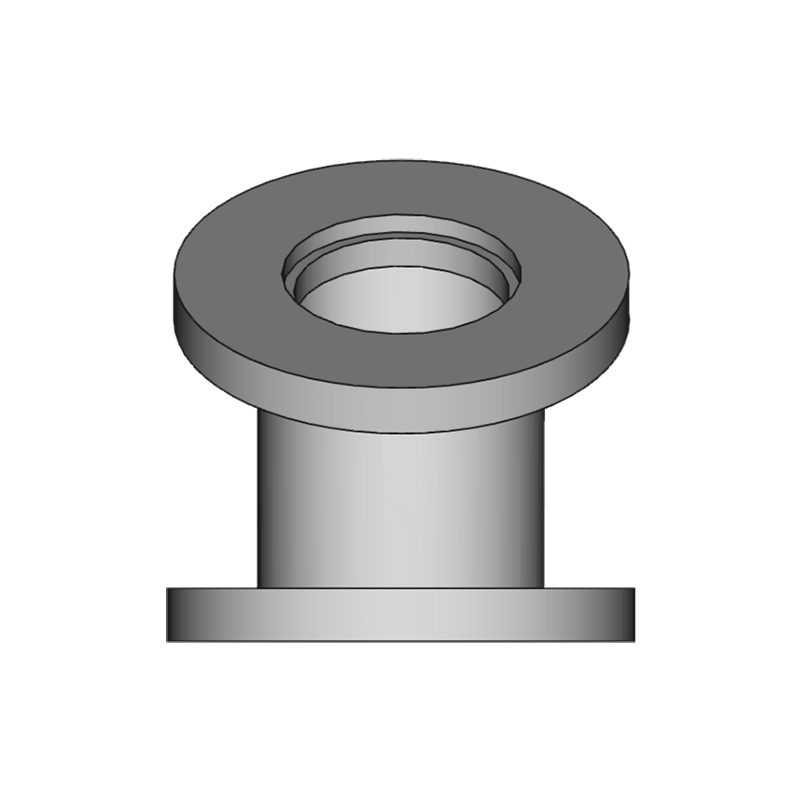

NAAMS Wedge Bracket AWB213
SKU: FN-AWB213
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Looking for CAD models?
Request NAAMS CAD Models
Request NAAMS CAD Models
Short Description

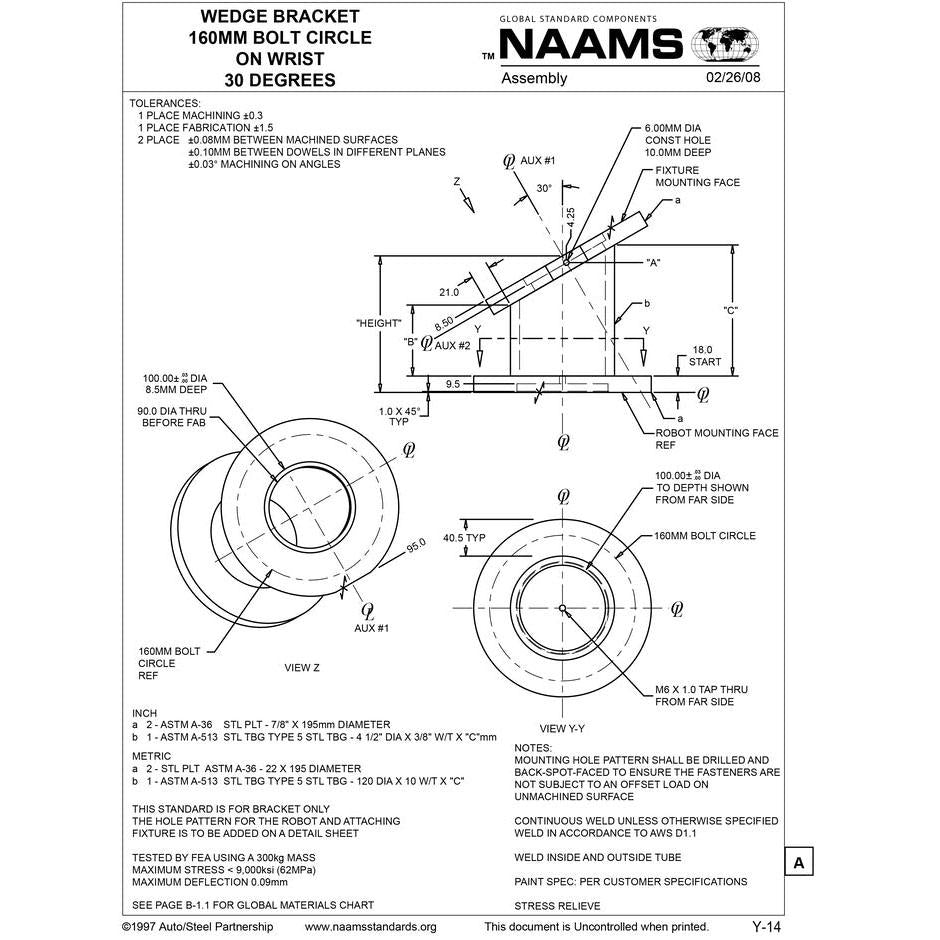

Freer NAAMS AWB213 wedge bracket comes with a 160mm bolt circle on a wrist of 30 degrees. It is manufactured from ASTM A-36 and ASTM A-513 with a height of 450mm.Full Description
FREER NAAMS WEDGE BRACKET AWB213
160mm Bolt Circle on Wrist 30 Degrees
Materials: ASTM A-36 and ASTM A-513
| Height | A | B | C | Inch Tube Wt. kg | Metric Tube Wt. kg |
| 450mm | 442.64mm | 378mm | 444mm | 17 | 18 |
