Brand: FREER NAAMS
NAAMS Wedge Bracket AWB116
SKU: FN-AWB116
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Looking for CAD models?
Request NAAMS CAD Models
Request NAAMS CAD Models
Short Description
Freer NAAMS AWB116 wedge bracket comes with a 160mm bolt circle on a wrist of 15 degrees. It is manufactured from ASTM A-36 and ASTM A-513 with a height of 525mm.Full Description
FREER NAAMS WEDGE BRACKET AWB116
160mm Bolt Circle on Wrist 15 Degrees
Materials: ASTM A-36 and ASTM A-513

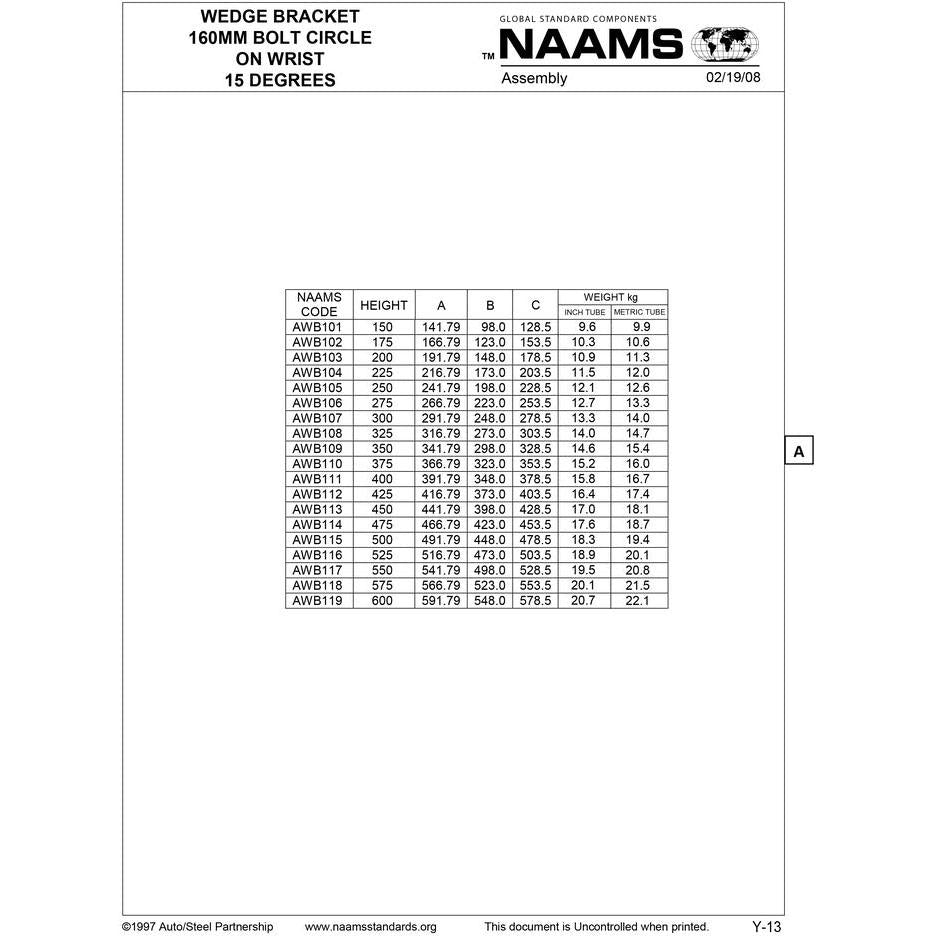

| Height | A | B | C | Inch Tube Wt. kg | Metric Tube Wt. kg |
| 525mm | 516.79mm | 473mm | 503.5mm | 18.9 | 20.1 |
