Short Description
Freer NAAMS AWB102 wedge bracket comes with a 160mm bolt circle on a wrist of 15 degrees. It is manufactured from ASTM A-36 and ASTM A-513 with a height of 175mm.Full Description

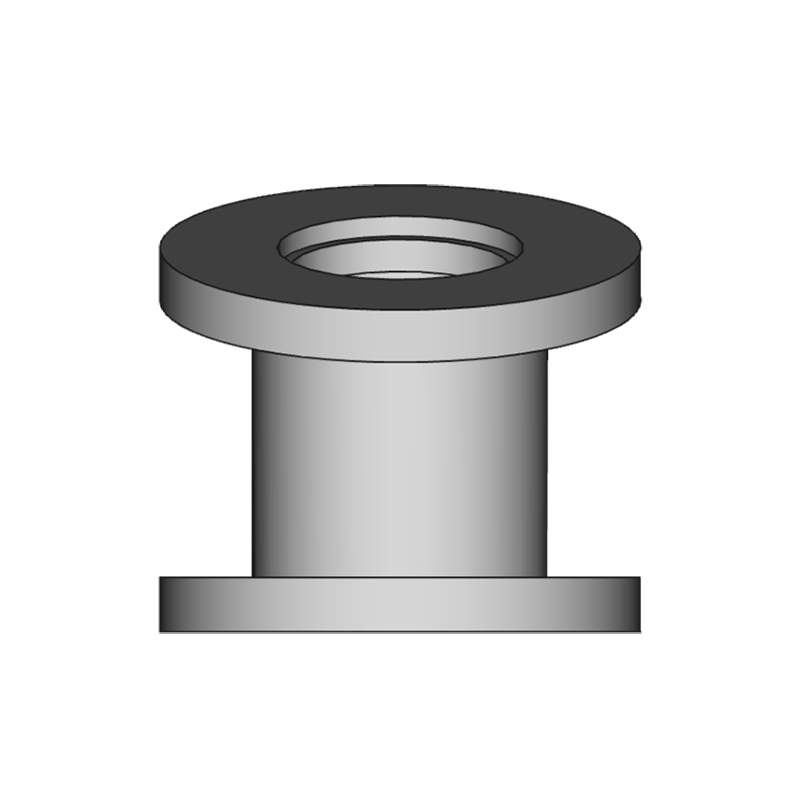

FREER NAAMS WEDGE BRACKET AWB102

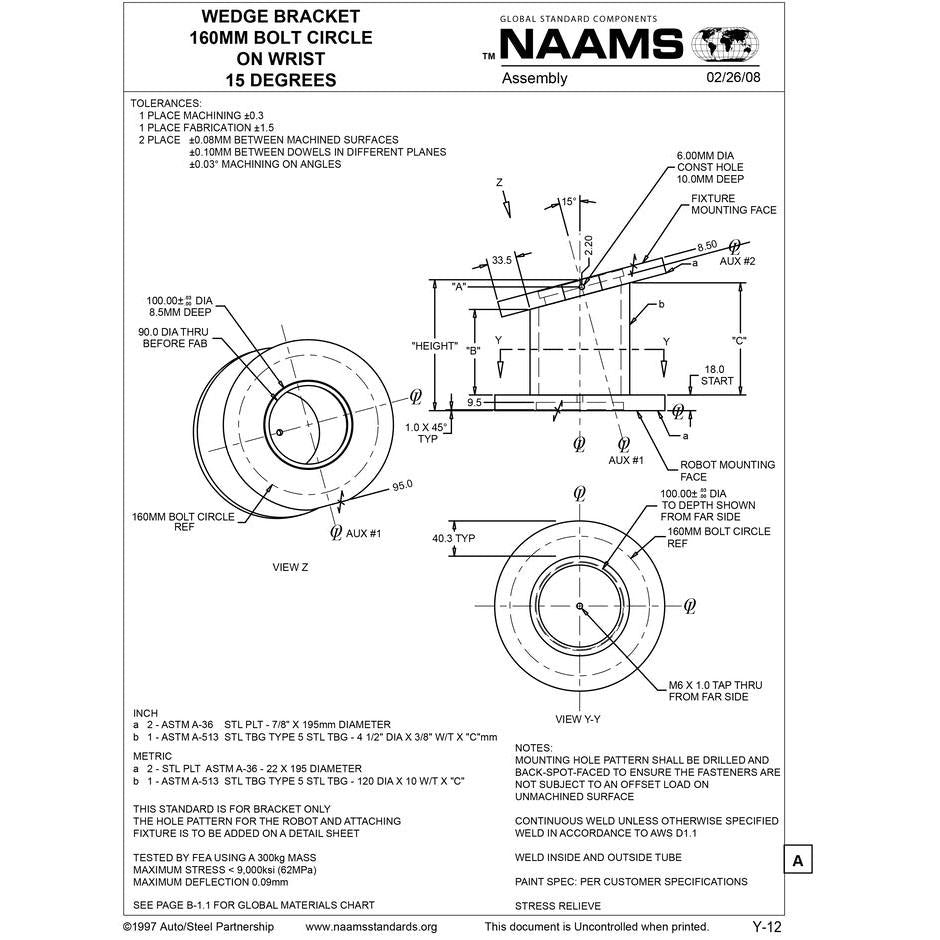

160mm Bolt Circle on Wrist 15 Degrees
Materials: ASTM A-36 and ASTM A-513

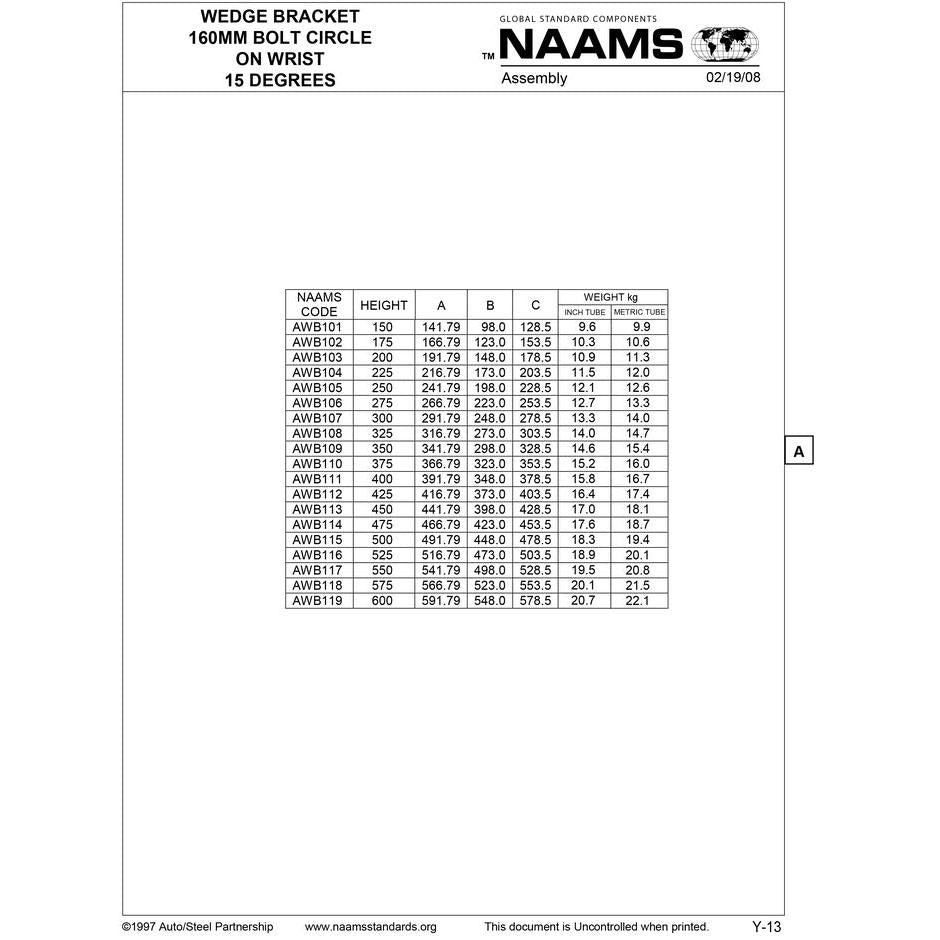

Height | A | B | C | Inch Tube Wt. kg | Metric Tube Wt. kg |
175mm | 166.79mm | 123mm | 153.5mm | 10.3 | 10.6 |
