Brand: FREER NAAMS
NAAMS Base Robot Riser ARR721
SKU: FN-ARR721
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Introducing the impressive NAAMS Base Robot Riser ARR721, with A±3 of 1400mm, B of 1298.4mm, and C of 790mm. This powerhouse also features a Hole Detail of 27.0 DIA, Mounting System #6, and a weight of 3511kg. Don't miss out on this reliable and efficient addition to your robotics setup!
Full Description

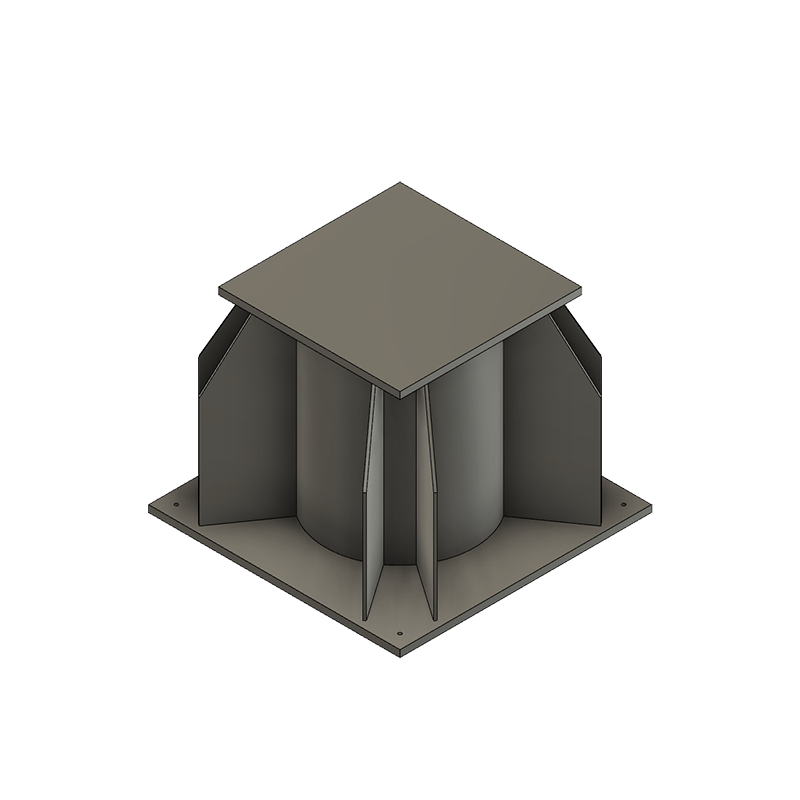

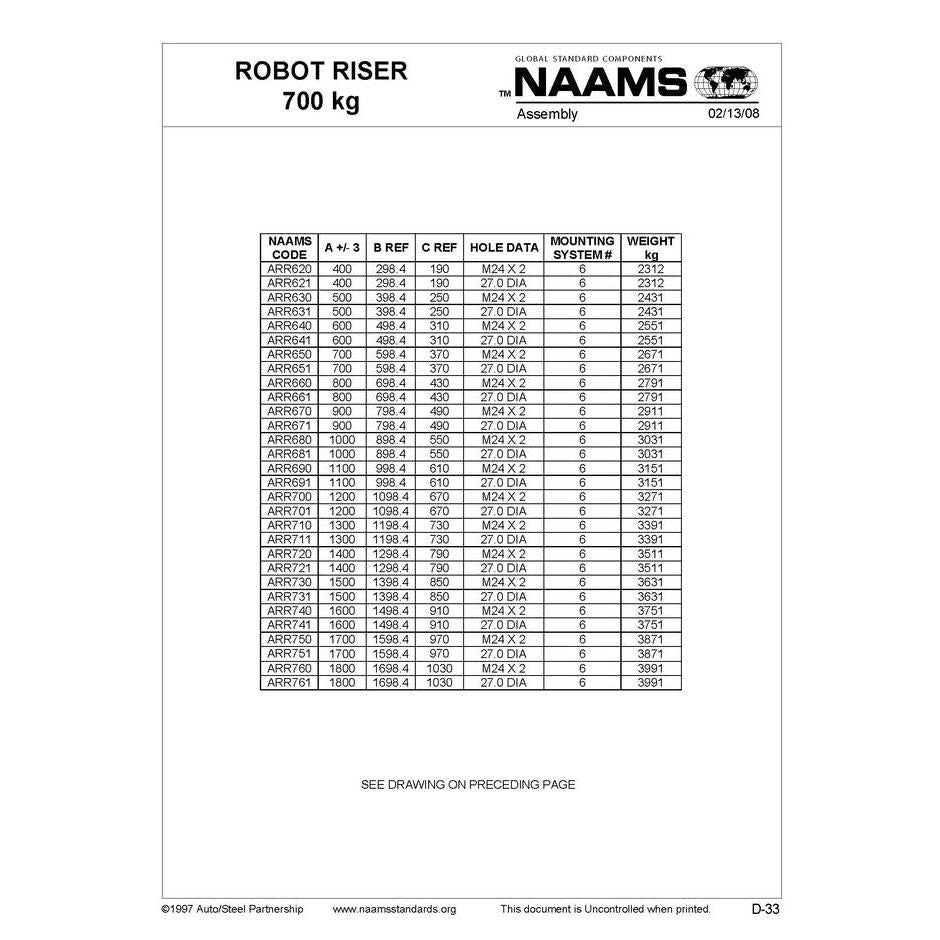

FREER NAAMS BASE ROBOT RISER ARR721
A±3: 1400mm
B: 1298.4mm
C: 790mm
Hole Detail: 27.0 DIA
Mounting System #: 6
Wt. kg: 3511

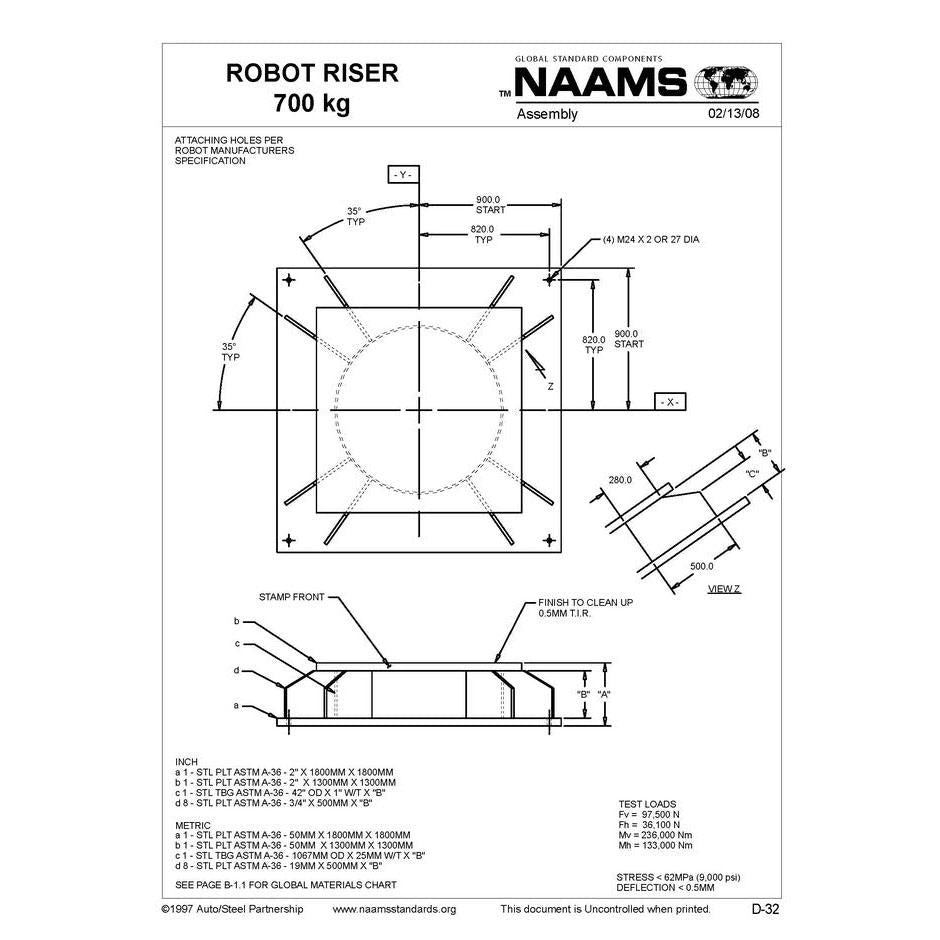

For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
