Brand: FREER NAAMS
NAAMS Base Robot Riser ARR620
SKU: FN-ARR620
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Transform your robotic base with the revolutionary NAAMS Base Robot Riser ARR620, providing optimal A±3: 400mm, B: 298.4mm, and C: 190mm measurements. Improving upon the mounting system #6 and weighing only 2312kg, this riser is a must-have for any industrial setting.
Full Description

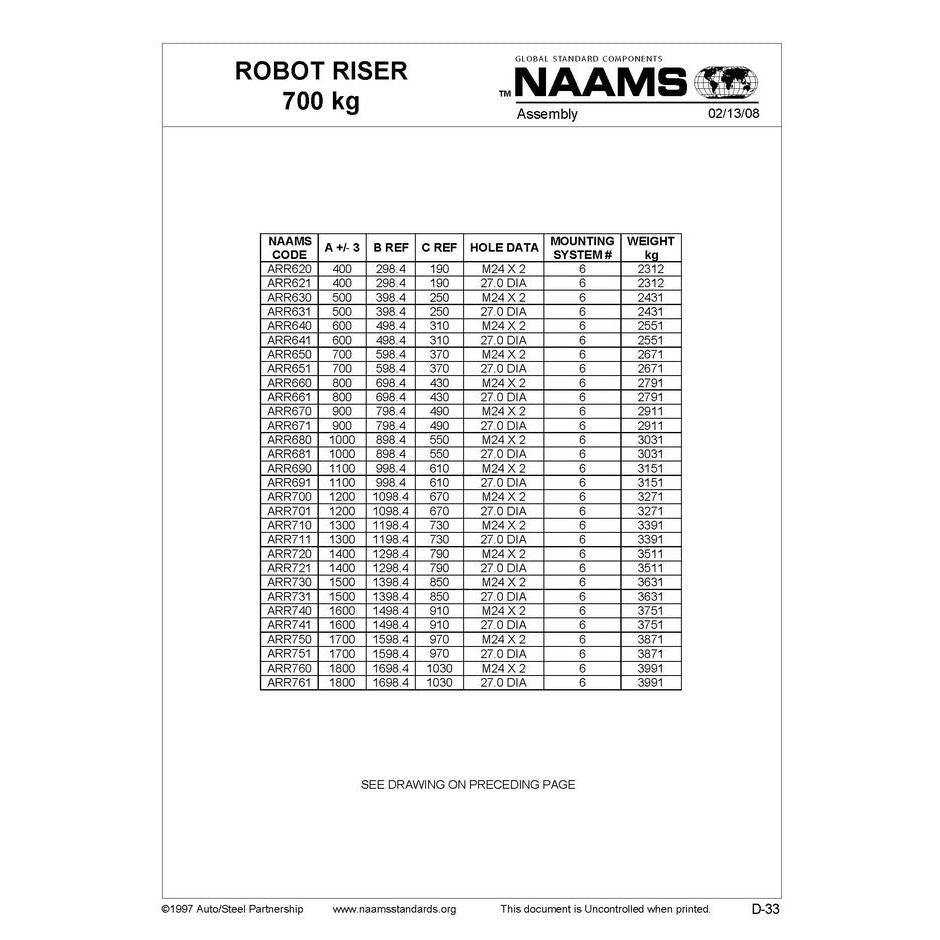

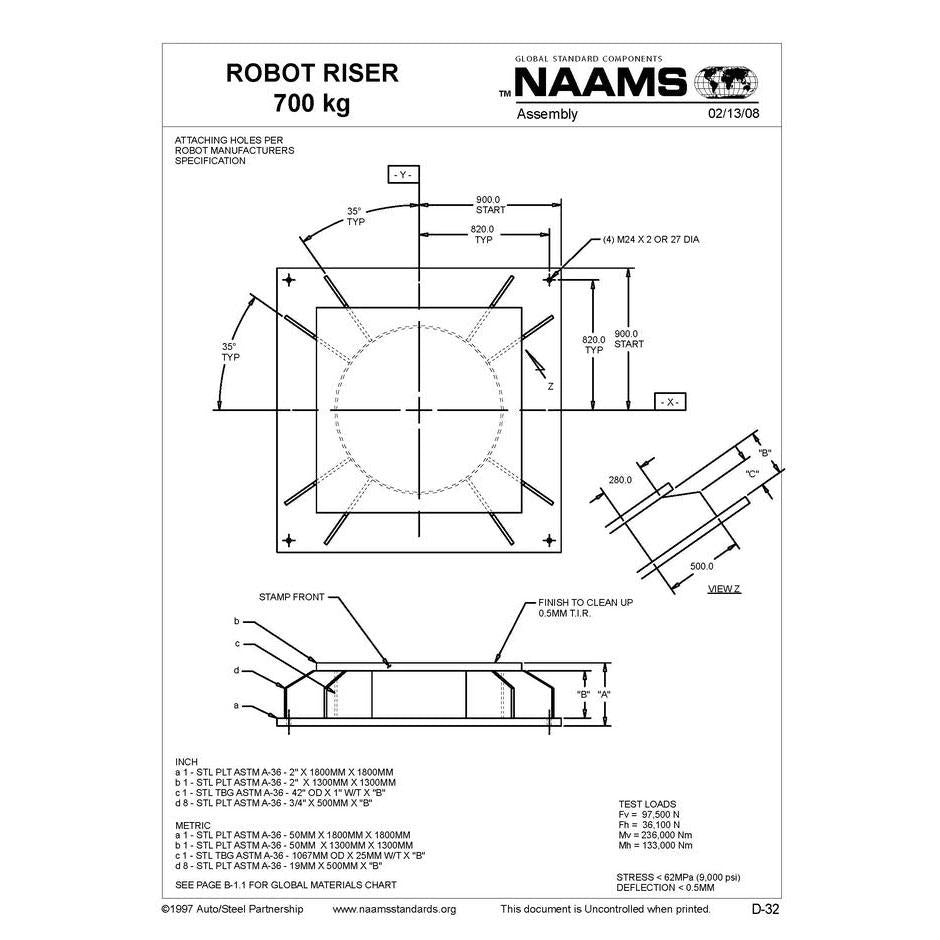

FREER NAAMS BASE ROBOT RISER ARR620
A±3: 400mm
B: 298.4mm
C: 190mm
Hole Detail: M24 X 2
Mounting System #: 6
Wt. kg: 2312
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
ABL340
ABL341
ABL440
ABL441
