Brand: FREER NAAMS
NAAMS Base Robot Riser ARR571
SKU: FN-ARR571
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
EMBODY the POWER of the NAAMS Base Robot Riser ARR571 with its A±3 height of 1700mm, B dimension of 1598.4mm, and impressive Hole Detail of 27.0 DIA. With a Mounting System # of 6 and a weight of 3384kg, this is a true force to be reckoned with. Unlock its potential and take your robotics to new heights!
Full Description

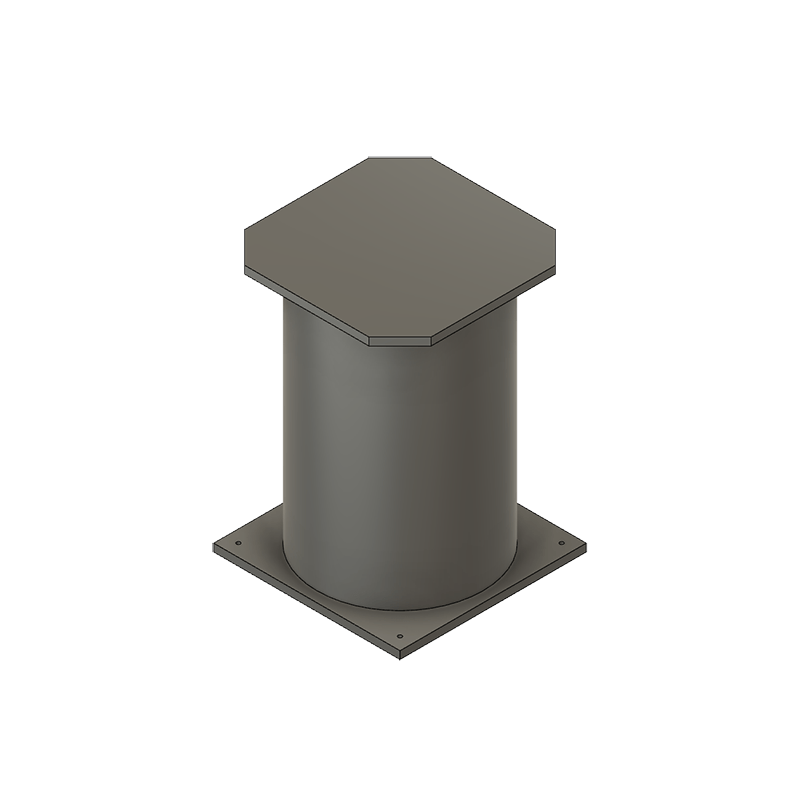

FREER NAAMS BASE ROBOT RISER ARR571
A±3: 1700mm
B: 1598.4mm
Hole Detail: 27.0 DIA
Mounting System #: 6
Wt. kg: 3384
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
