Brand: FREER NAAMS

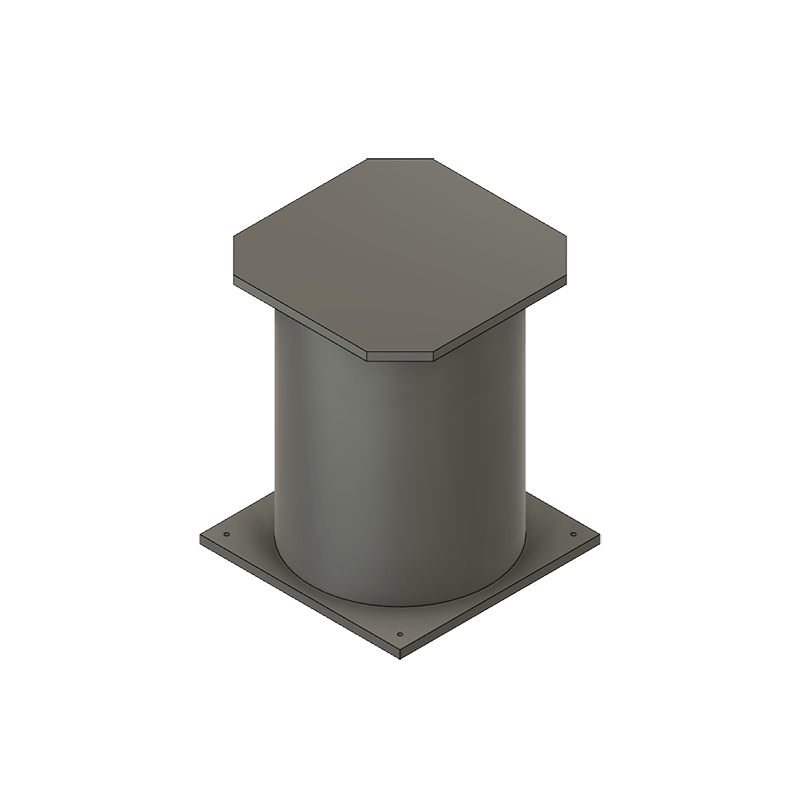

NAAMS Base Robot Riser ARR551
SKU: FN-ARR551
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
The NAAMS Base Robot Riser ARR551 boasts a 1500mm A±3 range and a B measurement of 1398.4mm. With a sturdy mounting system #6 and a weight of 3124kg, this riser provides exceptional stability and support for any robotics application. The 27.0 DIA hole detail adds versatility to its design, making it a truly valuable addition to any workspace.
Full Description
FREER NAAMS BASE ROBOT RISER ARR551
A±3: 1500mm
B: 1398.4mm
Hole Detail: 27.0 DIA
Mounting System #: 6
Wt. kg: 3124
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
