Brand: FREER NAAMS
NAAMS Base Robot Riser ARR550
SKU: FN-ARR550
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Unleash your full potential with the ARR550 NAAMS Base Robot Riser. Boasting precise measurements of A±3: 1500mm and B: 1398.4mm, and equipped with a sturdy M24 X 2 hole detail, this mounting system of 6, Wt. kg: 3059 will elevate your robotic capabilities to new heights!
Full Description

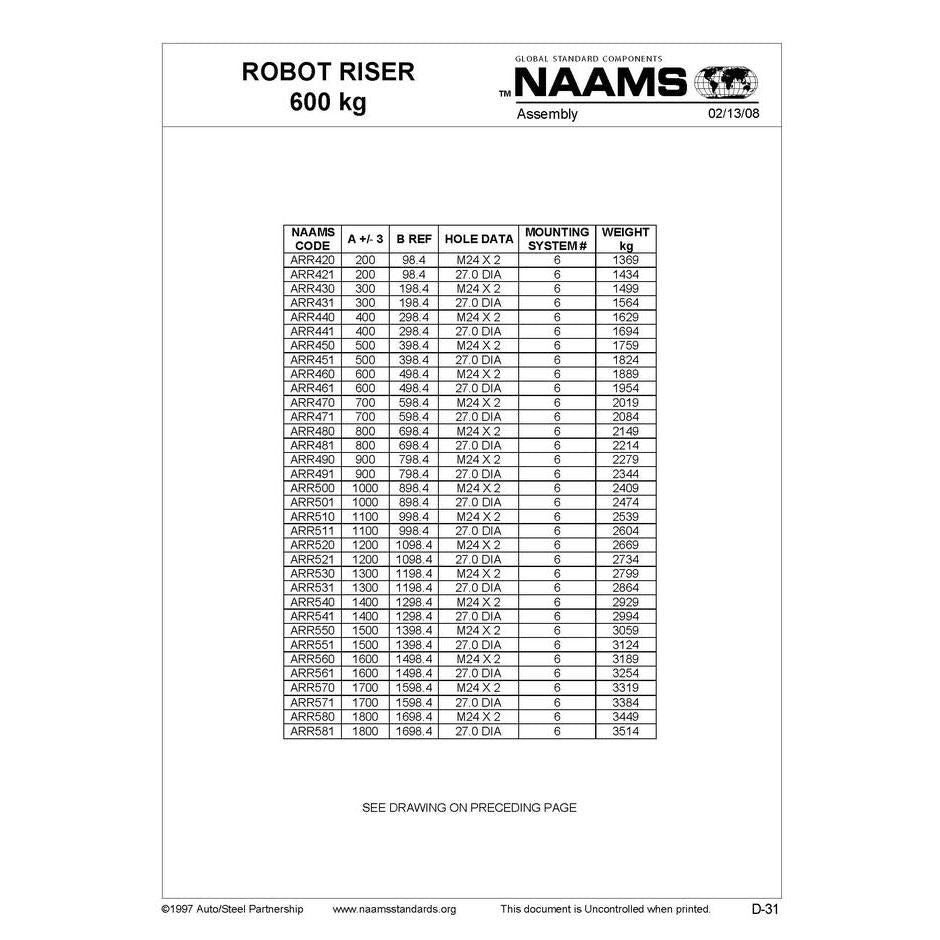

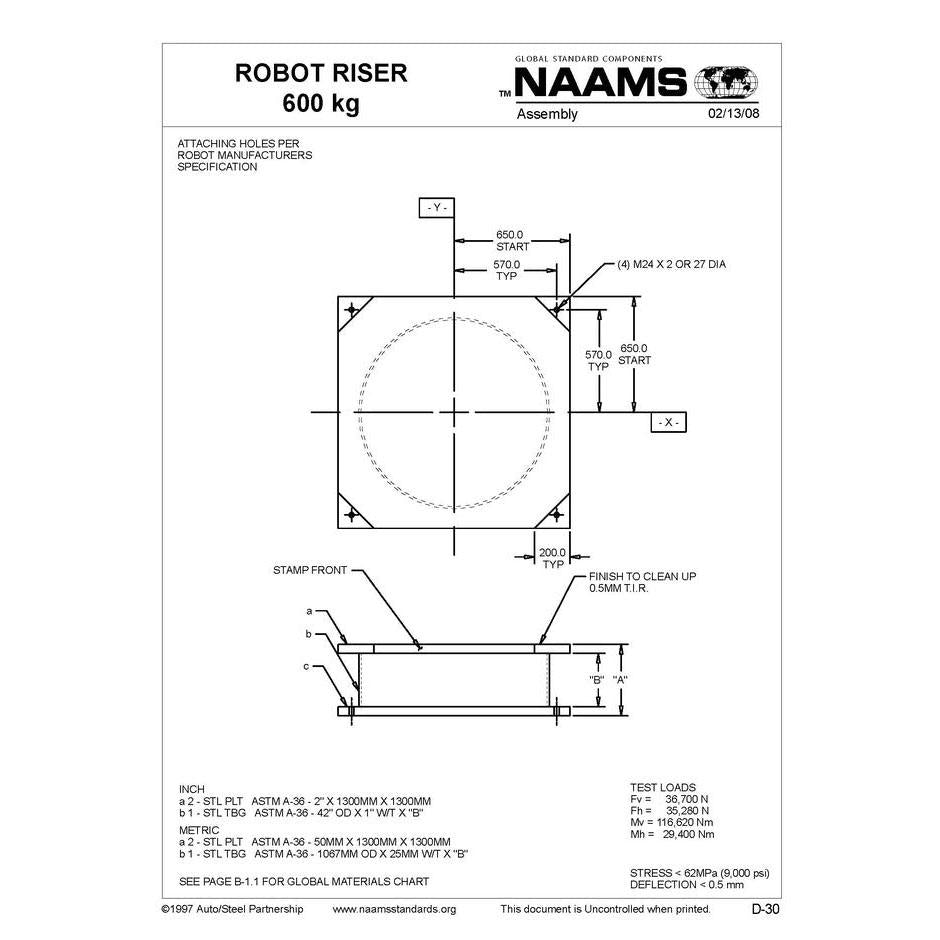

FREER NAAMS BASE ROBOT RISER ARR550
A±3: 1500mm
B: 1398.4mm
Hole Detail: M24 X 2
Mounting System #: 6
Wt. kg: 3059
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
ABL340
ABL341
ABL440
ABL441
