Brand: FREER NAAMS
NAAMS Base Robot Riser ARR530
SKU: FN-ARR530
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Introducing the NAAMS Base Robot Riser ARR530 - the ultimate tool for maximizing efficiency and precision in your production line. With dimensions of A±3: 1300mm and B: 1198.4mm, this riser offers unparalleled versatility for all your mounting needs. Its hole detail of M24 X 2 ensures easy and secure installation, and with a mounting system of #6, you can trust that your robot will stay firmly in place. Weighing in at only 2799kg, this base riser is lightweight yet incredibly strong. Upgrade your operations with the NAAMS Base Robot Riser ARR530 today!
Full Description

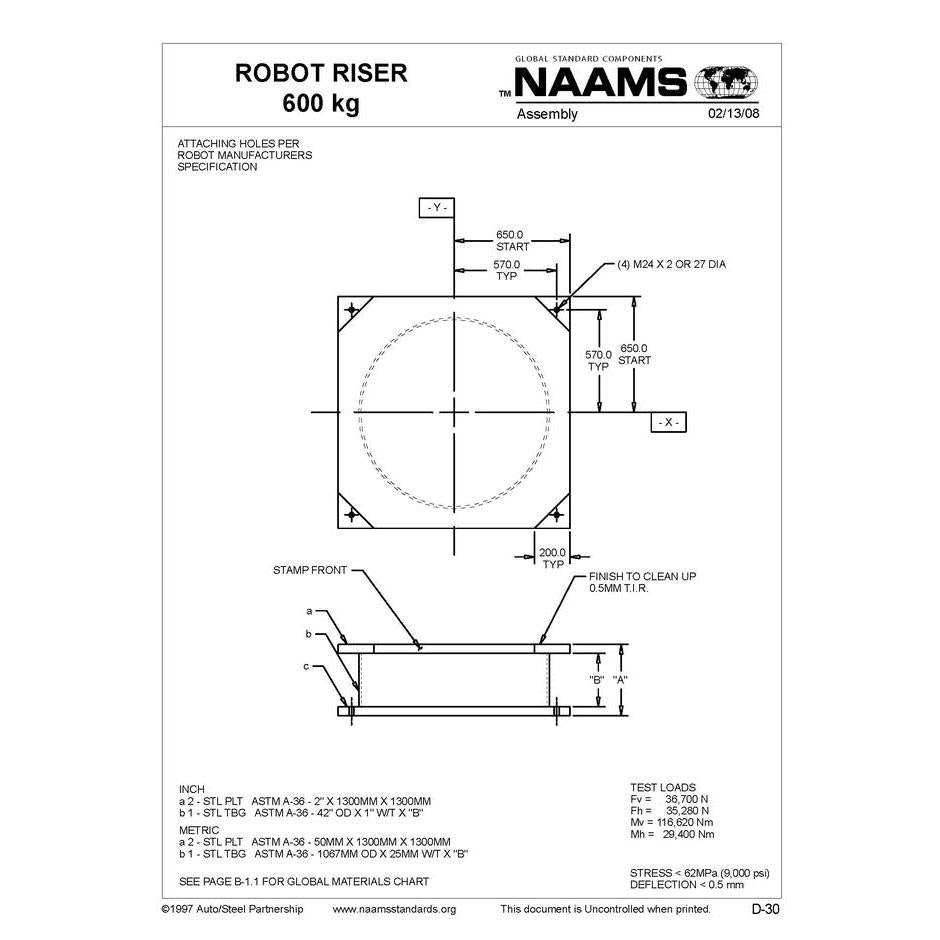

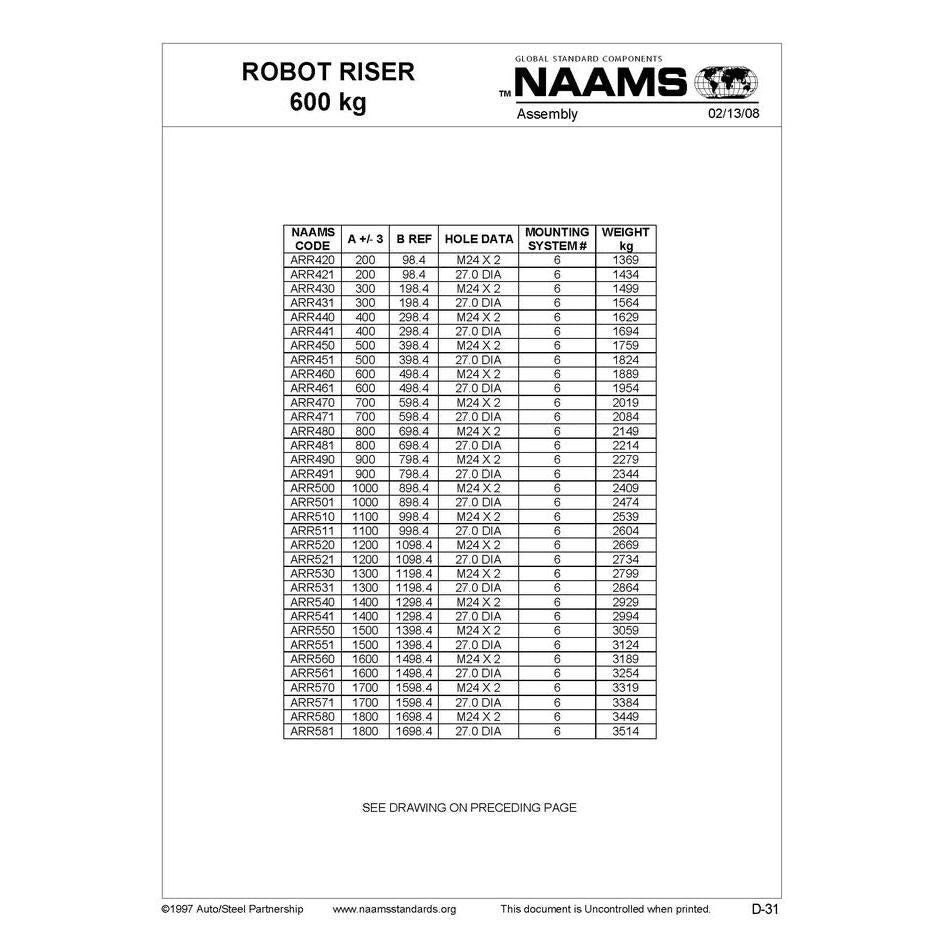

FREER NAAMS BASE ROBOT RISER ARR530
A±3: 1300mm
B: 1198.4mm
Hole Detail: M24 X 2
Mounting System #: 6
Wt. kg: 2799
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
ABL340
ABL341
ABL440
ABL441
