Brand: FREER NAAMS
NAAMS Base Robot Riser ARR501
SKU: FN-ARR501
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the ultimate in precision and strength with the NAAMS Base Robot Riser ARR501. Its 1000mm A±3 dimension provides unrivaled flexibility, while the B dimension of 898.4mm and impressive weight of 2474 kg guarantee reliable support. Mounting System #: 6 offers easy installation and the 27.0 DIA Hole Detail adds to its superior design.
Full Description

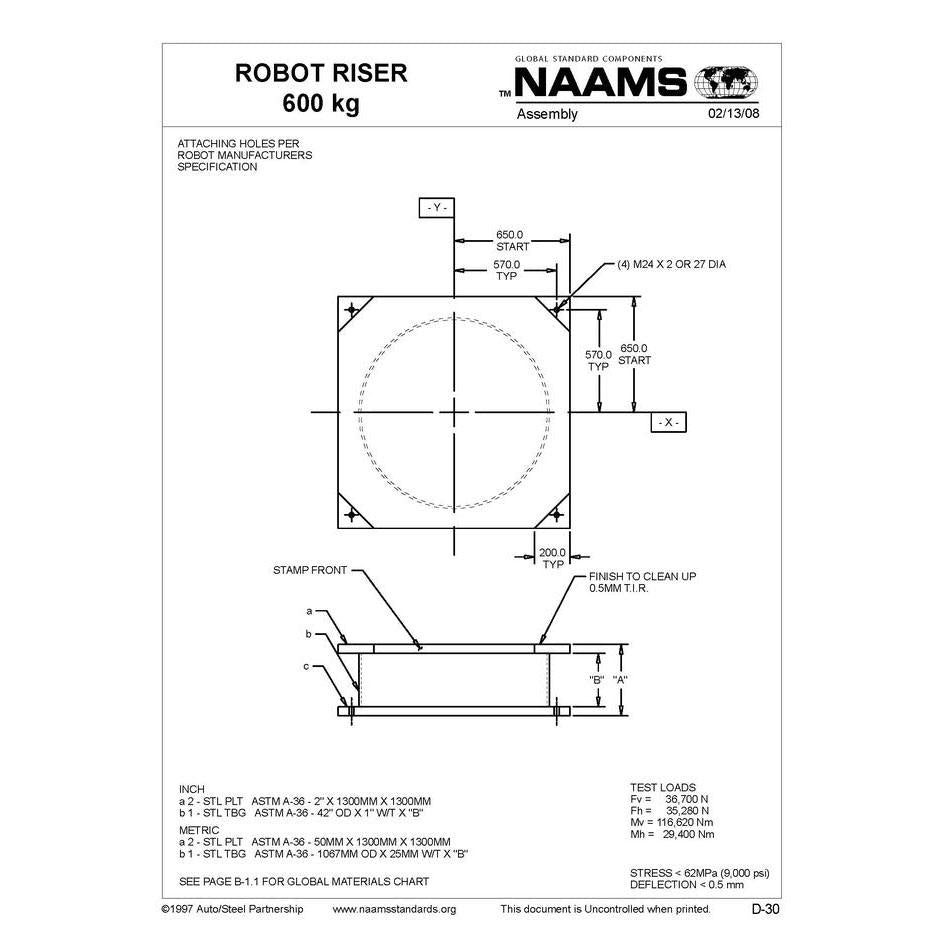

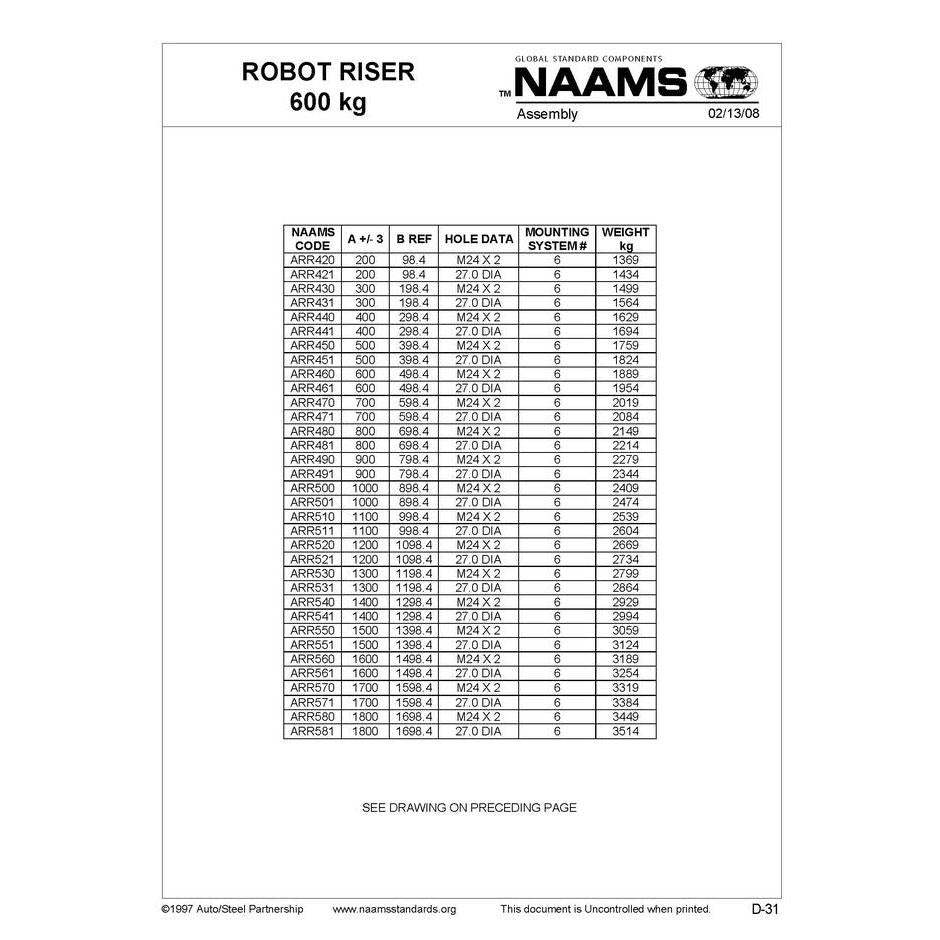

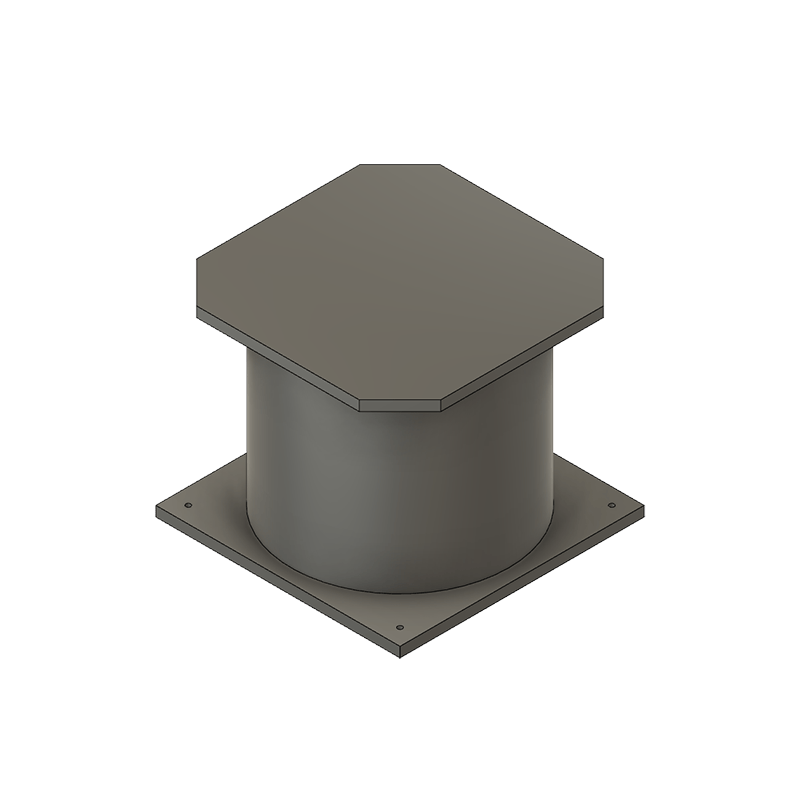

FREER NAAMS BASE ROBOT RISER ARR501
A±3: 1000mm
B: 898.4mm
Hole Detail: 27.0 DIA
Mounting System #: 6
Wt. kg: 2474
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
