Brand: FREER NAAMS
NAAMS Base Robot Riser ARR490
SKU: FN-ARR490
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Introducing the powerful NAAMS Base Robot Riser ARR490! Elevate your productivity with its impressive A±3: 900mm and B: 798.4mm dimensions, sturdy M24 X 2 hole detail, and effortless mounting on system number 6. Weighing in at 2279 kg, this riser is sure to inspire awe and help you achieve your highest manufacturing goals.
Full Description

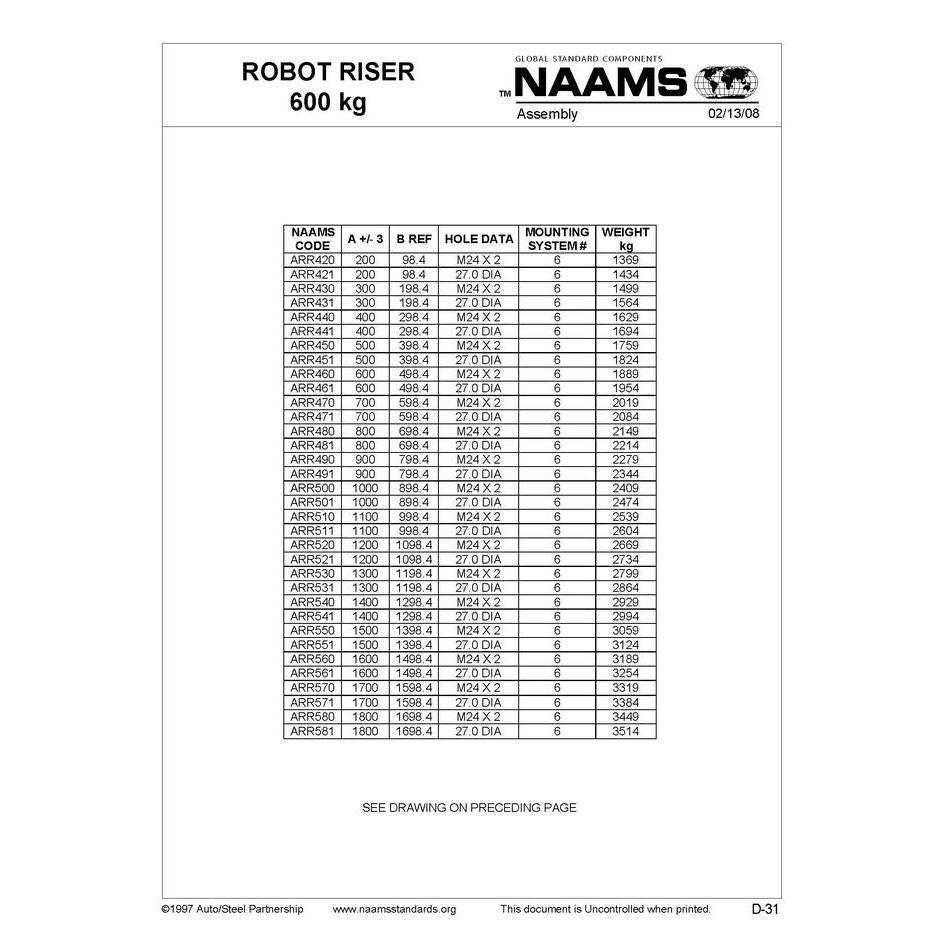

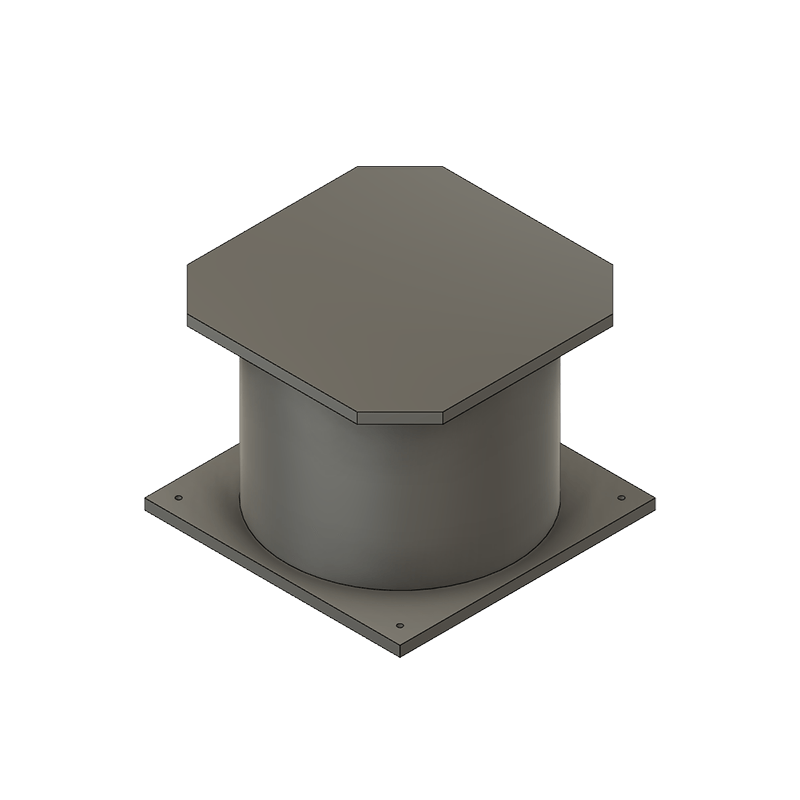

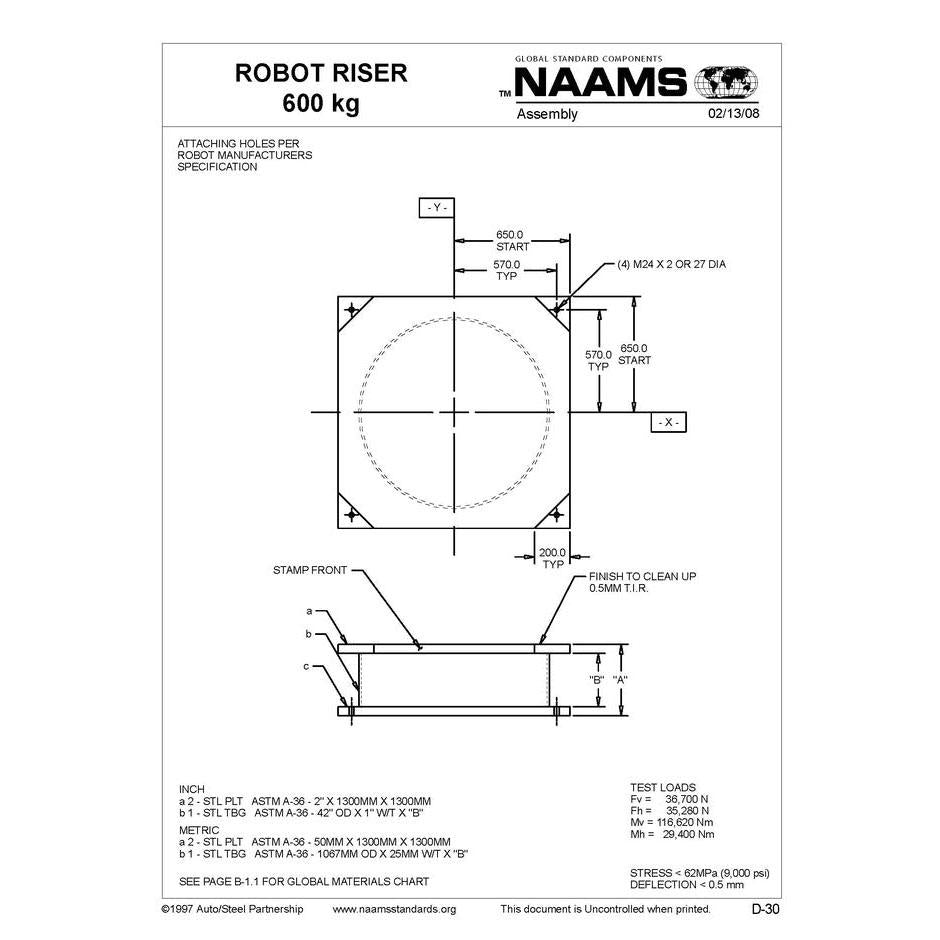

FREER NAAMS BASE ROBOT RISER ARR490
A±3: 900mm
B: 798.4mm
Hole Detail: M24 X 2
Mounting System #: 6
Wt. kg: 2279
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
ABL340
ABL341
ABL440
ABL441
