Brand: FREER NAAMS

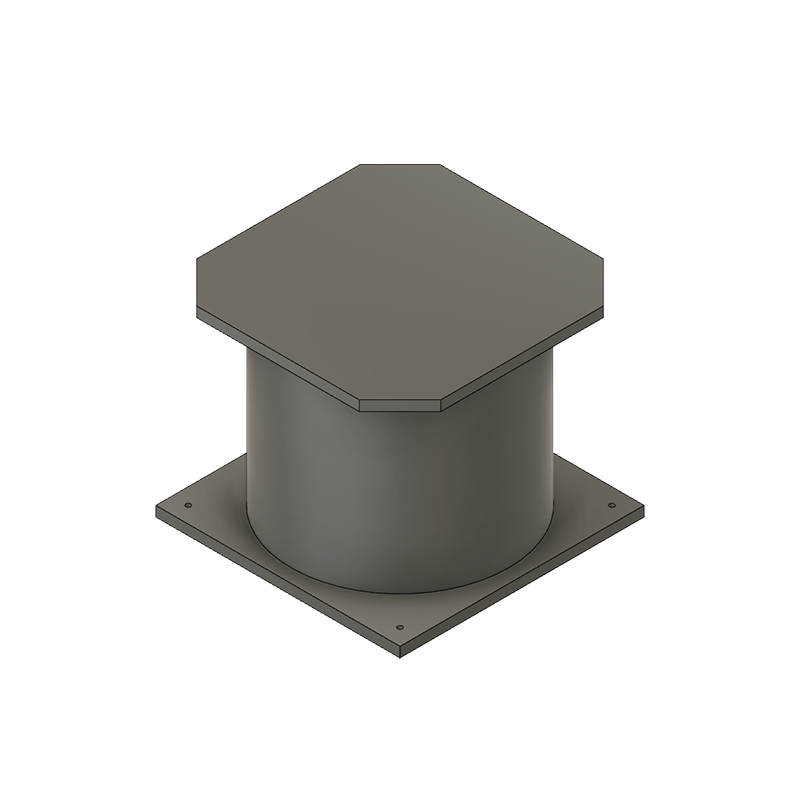

NAAMS Base Robot Riser ARR300
SKU: FN-ARR300
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Unleash the full potential of your robotic assembly with the NAAMS Base Robot Riser ARR300! Featuring precise measurements of A±3: 1000mm and B: 898.4mm, along with a sturdy M24 X 2 hole detail and a mounting system of 6, this riser provides a solid foundation for your machines. With a weight of only 1668 kg, it's easy to install and will elevate your production to new heights.
Full Description

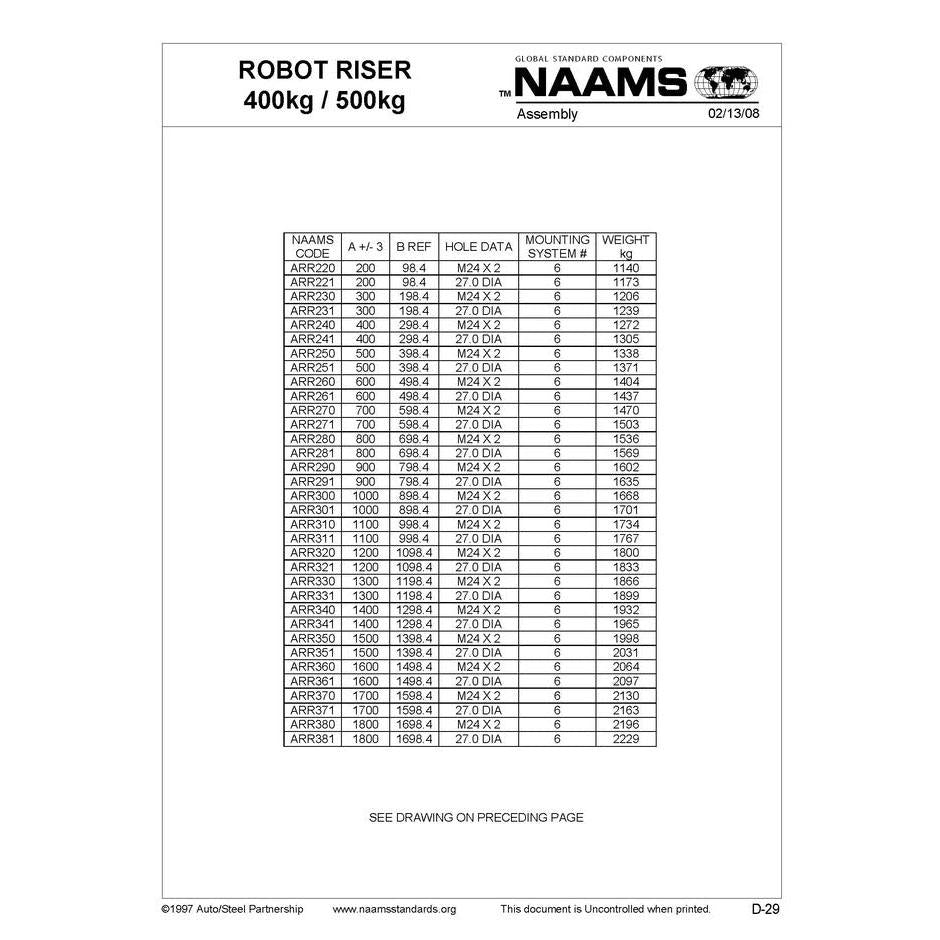

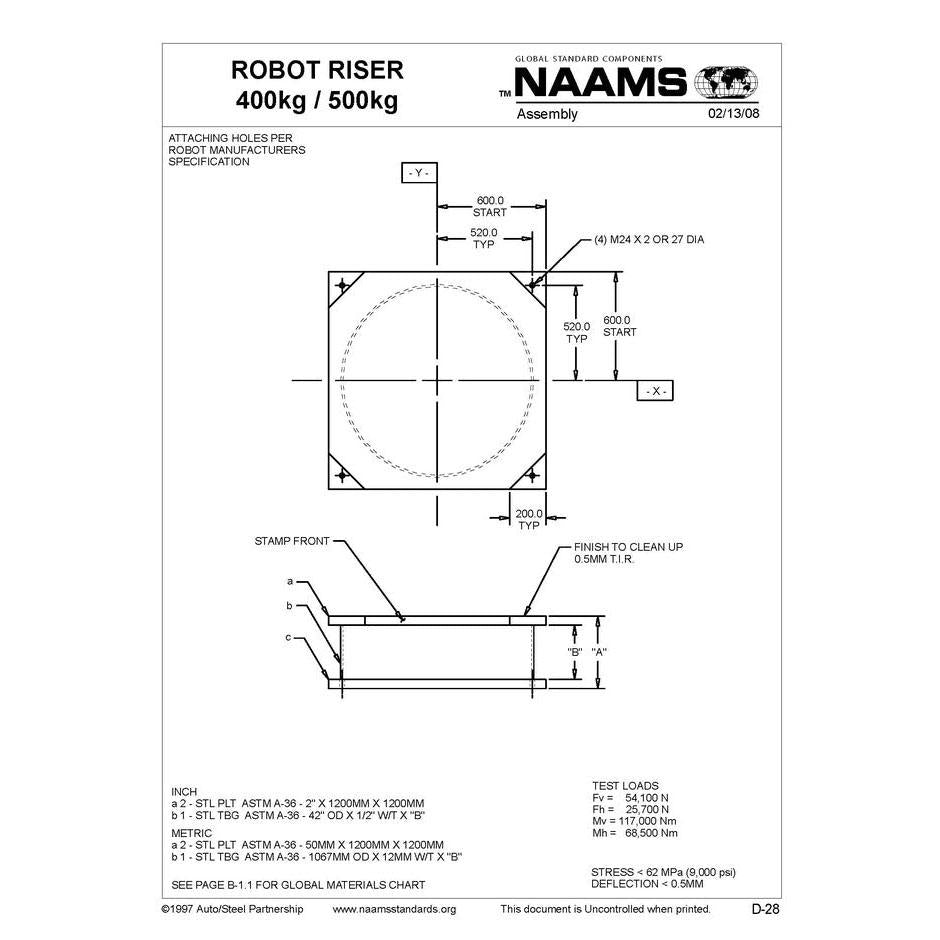

FREER NAAMS BASE ROBOT RISER ARR300
A±3: 1000mm
B: 898.4mm
Hole Detail: M24 X 2
Mounting System #: 6
Wt. kg: 1668
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
ABL340
ABL341
ABL440
ABL441
